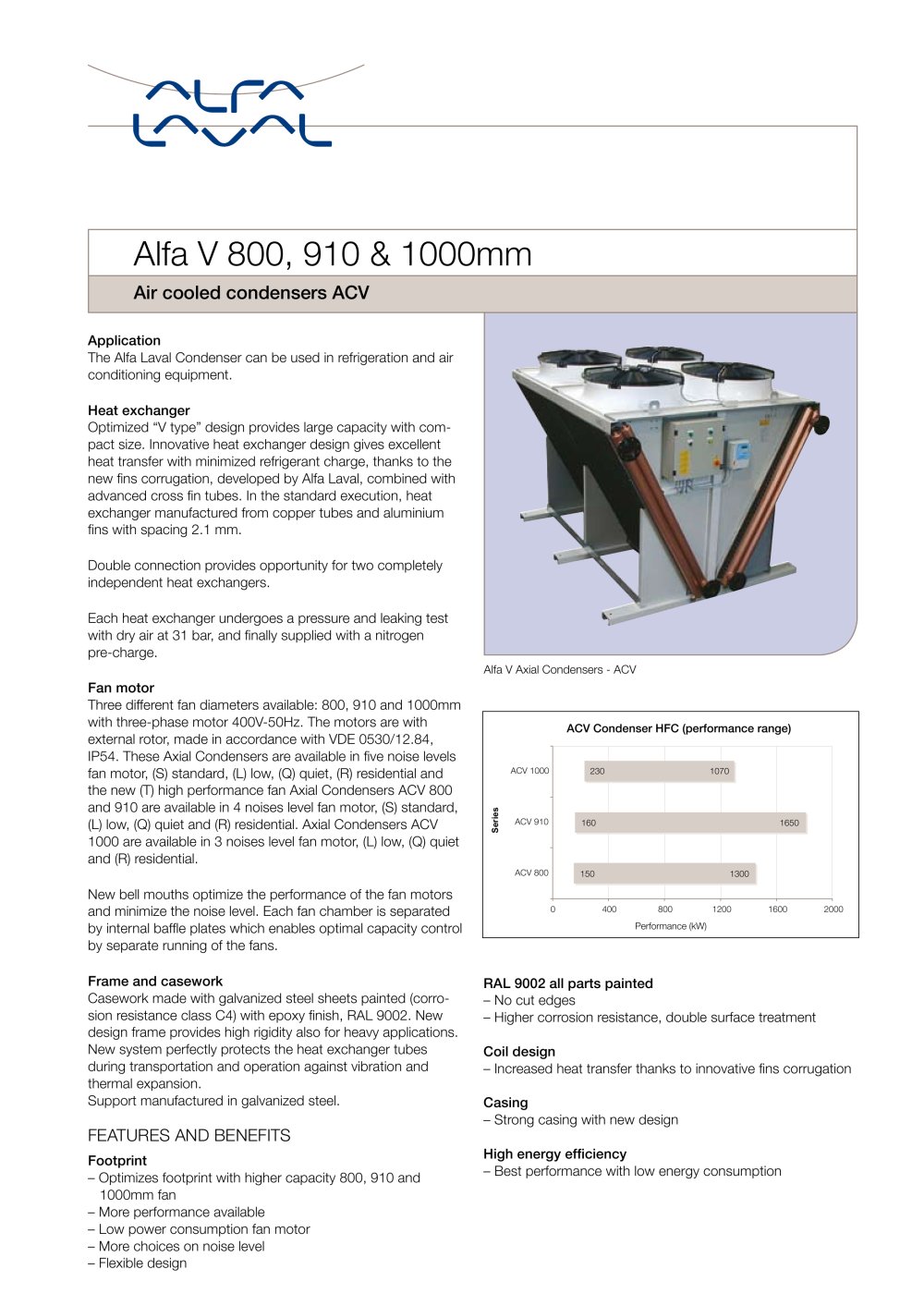

Air cooled condensers ACV Alfa V 800, 910 & 1000mm Application The Alfa Laval Condenser can be used in refrigeration and air conditioning equipment. Heat exchanger Optimized “V type” design provides large capacity with compact size. Innovative heat exchanger design gives excellent heat transfer with minimized refrigerant charge, thanks to the new fins corrugation, developed by Alfa Laval, combined with advanced cross fin tubes. In the standard execution, heat exchanger manufactured from copper tubes and aluminium fins with spacing 2.1 mm. Double connection provides opportunity for two completely independent heat exchangers. Each heat exchanger undergoes a pressure and leaking test with dry air at 31 bar, and finally supplied with a nitrogen pre-charge. Fan motor Three different fan diameters available: 800, 910 and 1000mm with three-phase motor 400V-50Hz. The motors are with external rotor, made in accordance with VDE 0530/12.84, IP54. These Axial Condensers are available in five noise levels fan motor, (S) standard, (L) low, (Q) quiet, (R) residential and the new (T) high performance fan Axial Condensers ACV 800 and 910 are available in 4 noises level fan motor, (S) standard, (L) low, (Q) quiet and (R) residential. Axial Condensers ACV 1000 are available in 3 noises level fan motor, (L) low, (Q) quiet and (R) residential. New bell mouths optimize the performance of the fan motors and minimize the noise level. Each fan chamber is separated by internal baffle plates which enables optimal capacity control by separate running of the fans. Frame and casework Casework made with galvanized steel sheets painted (corrosion resistance class C4) with epoxy finish, RAL 9002. New design frame provides high rigidity also for heavy applications. New system perfectly protects the heat exchanger tubes during transportation and operation against vibration and thermal expansion. Support manufactured in galvanized steel. FEATURES AND BENEFITS Footprint – Optimizes footprint with higher capacity 800, 910 and 1000mm fan – More performance available – Low power consumption fan motor – More choices on noise level – Flexible design Alfa V Axial Condensers - ACV 150 230 160 1070 1650 1300 0 400 800 1200 1600 2000 ACV 800 ACV 910 ACV 1000 Series ACV Condenser HFC (performance range) Performance (kW) RAL 9002 all parts painted – No cut edges – Higher corrosion resistance, double surface treatment Coil design – Increased heat transfer thanks to innovative fins corrugation Casing – Strong casing with new design High energy efficiency – Best performance with low energy consumption
Open the catalog to page 1OPTIONS Non standard fin spacing – For heavy dusty environments Multi-circuits – Split the capacity and connect more compressors Coil treatment – Corrosion resistance – Useful for aggressive environments Spray water device – Possibility to select smaller units – Keep the performance during temperature peaks Vibration dampers – Useful to reduce vibrations SPECIAL FANS EC fans – Best alternative for frequency converter control 480/3 ph -60 Hz IP54 – High adaptability on every market IP55 – High protection fan to be used in tropical or desert areas ELECTRICAL PARTS Switch on/off – Local safety...
