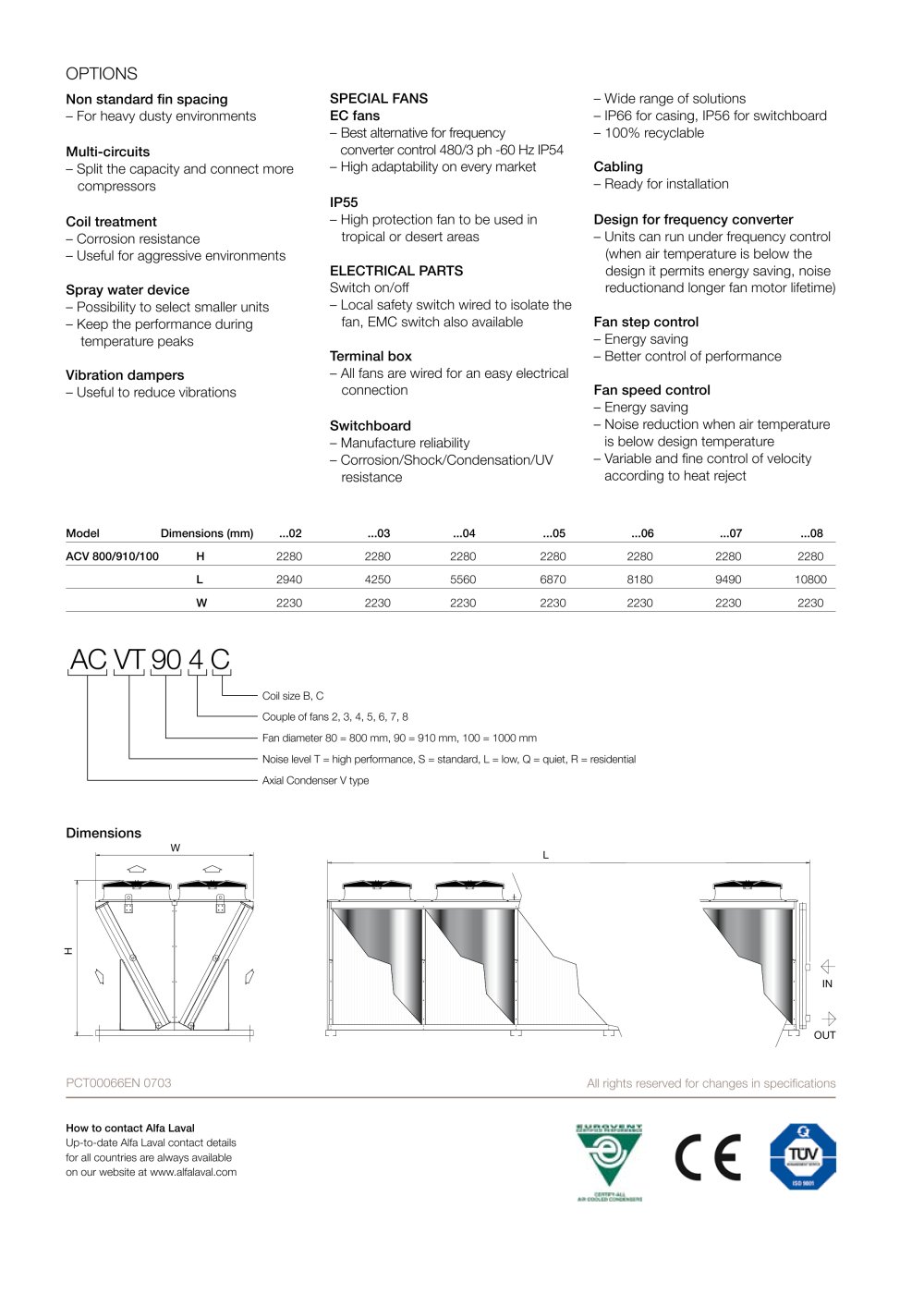

OPTIONS Non standard fin spacing – For heavy dusty environments Multi-circuits – Split the capacity and connect more compressors Coil treatment – Corrosion resistance – Useful for aggressive environments Spray water device – Possibility to select smaller units – Keep the performance during temperature peaks Vibration dampers – Useful to reduce vibrations SPECIAL FANS EC fans – Best alternative for frequency converter control 480/3 ph -60 Hz IP54 – High adaptability on every market IP55 – High protection fan to be used in tropical or desert areas ELECTRICAL PARTS Switch on/off – Local safety switch wired to isolate the fan, EMC switch also available Terminal box – All fans are wired for an easy electrical connection Switchboard – Manufacture reliability – Corrosion/Shock/Condensation/UV resistance – Wide range of solutions – IP66 for casing, IP56 for switchboard – 100% recyclable Cabling – Ready for installation Design for frequency converter – Units can run under frequency control (when air temperature is below the design it permits energy saving, noise reductionand longer fan motor lifetime) Fan step control – Energy saving – Better control of performance Fan speed control – Energy saving – Noise reduction when air temperature is below design temperature – Variable and fine control of velocity according to heat reject PCT00066EN 0703 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Model Dimensions (mm) ...02 ...03 ...04 ...05 ...06 ...07 ...08 ACV 800/910/100 H 2280 2280 2280 2280 2280 2280 2280 L 2940 4250 5560 6870 8180 9490 10800 W 2230 2230 2230 2230 2230 2230 2230 Dimensions AC VT 90 4 C Coil size B, C Couple of fans 2, 3, 4, 5, 6, 7, 8 Fan diameter 80 = 800 mm, 90 = 910 mm, 100 = 1000 mm Noise level T = high performance, S = standard, L = low, Q = quiet, R = residential Axial Condenser V type L H W IN OUT
