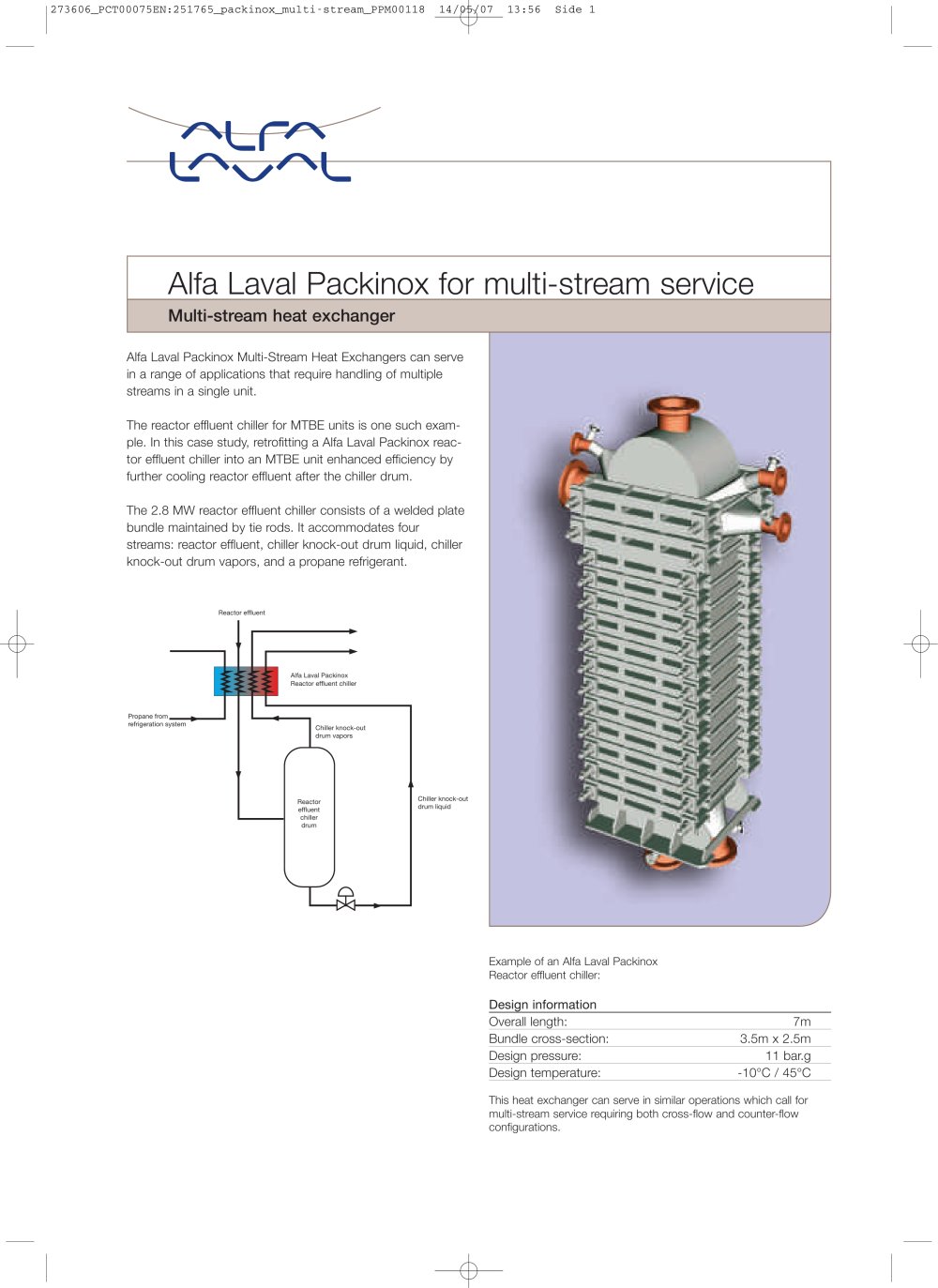

Multi-stream heat exchanger Alfa Laval Packinox for multi-stream service Alfa Laval Packinox Multi-Stream Heat Exchangers can serve in a range of applications that require handling of multiple streams in a single unit. The reactor effluent chiller for MTBE units is one such example. In this case study, retrofitting a Alfa Laval Packinox reactor effluent chiller into an MTBE unit enhanced efficiency by further cooling reactor effluent after the chiller drum. The 2.8 MW reactor effluent chiller consists of a welded plate bundle maintained by tie rods. It accommodates four streams: reactor effluent, chiller knock-out drum liquid, chiller knock-out drum vapors, and a propane refrigerant. Alfa Laval Packinox Reactor effluent chiller Chiller knock-out drum liquid Reactor effluent Chiller knock-out drum vapors Propane from refrigeration system Reactor effluent chiller drum Example of an Alfa Laval Packinox Reactor effluent chiller: Design information Overall length: 7m Bundle cross-section: 3.5m x 2.5m Design pressure: 11 bar.g Design temperature: -10°C / 45°C This heat exchanger can serve in similar operations which call for multi-stream service requiring both cross-flow and counter-flow configurations. 273606_PCT00075EN:251765_packinox_multi-stream_PPM00118 14/05/07 13:56 Side 1
