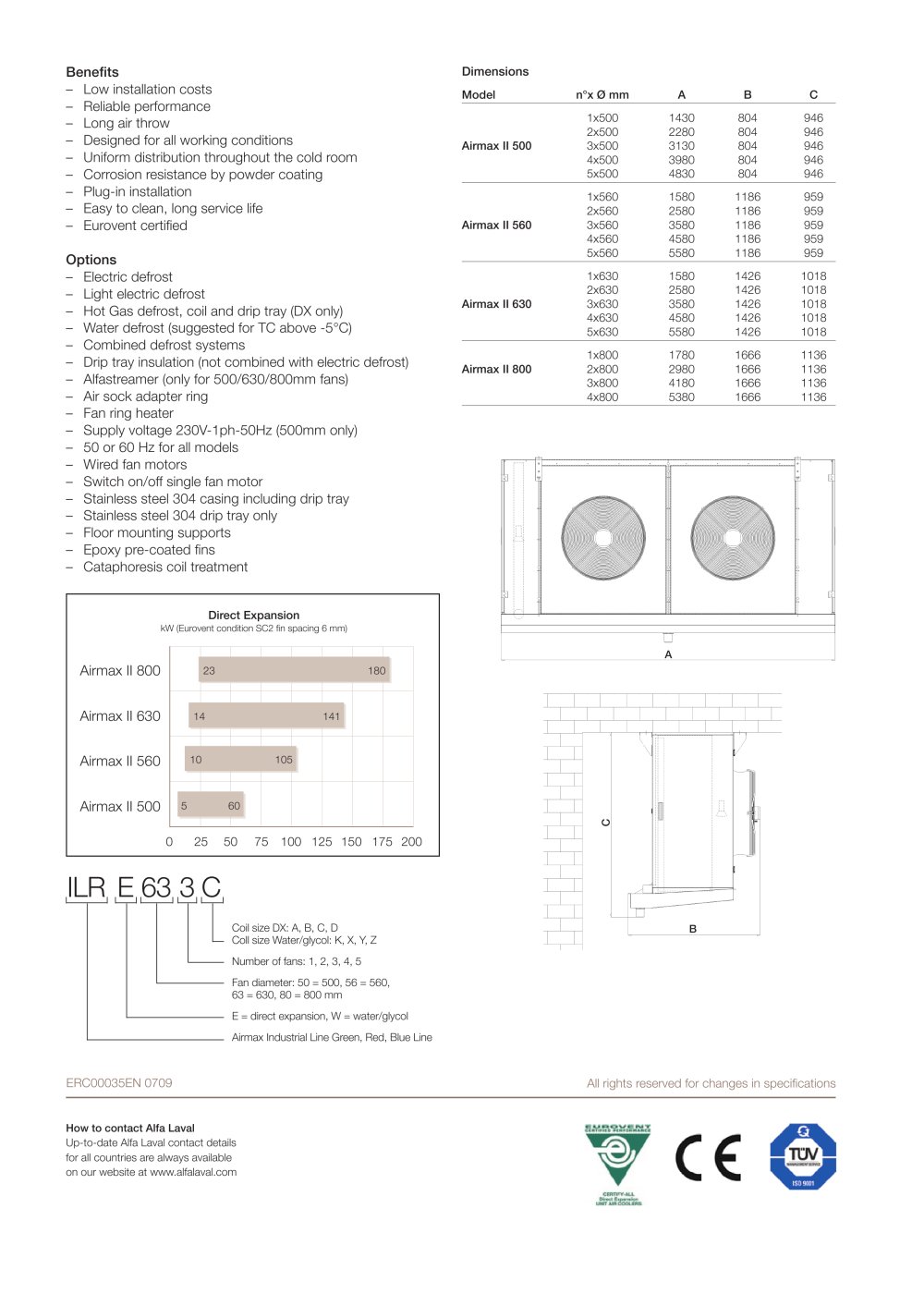

ERC00035EN 0709 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ILR E 63 3 C Coil size DX: A, B, C, D Coll size Water/glycol: K, X, Y, Z Number of fans: 1, 2, 3, 4, 5 Fan diameter: 50 = 500, 56 = 560, 63 = 630, 80 = 800 mm E = direct expansion, W = water/glycol Airmax Industrial Line Green, Red, Blue Line Benefits – Low installation costs – Reliable performance – Long air throw – Designed for all working conditions – Uniform distribution throughout the cold room – Corrosion resistance by powder coating – Plug-in installation – Easy to clean, long service life – Eurovent certified Options – Electric defrost – Light electric defrost – Hot Gas defrost, coil and drip tray (DX only) – Water defrost (suggested for TC above -5°C) – Combined defrost systems – Drip tray insulation (not combined with electric defrost) – Alfastreamer (only for 500/630/800mm fans) – Air sock adapter ring – Fan ring heater – Supply voltage 230V-1ph-50Hz (500mm only) – 50 or 60 Hz for all models – Wired fan motors – Switch on/off single fan motor – Stainless steel 304 casing including drip tray – Stainless steel 304 drip tray only – Floor mounting supports – Epoxy pre-coated fins – Cataphoresis coil treatment Dimensions Model n°x Ø mm A B C 1x500 1430 804 946 2x500 2280 804 946 Airmax II 500 3x500 3130 804 946 4x500 3980 804 946 5x500 4830 804 946 1x560 1580 1186 959 2x560 2580 1186 959 Airmax II 560 3x560 3580 1186 959 4x560 4580 1186 959 5x560 5580 1186 959 1x630 1580 1426 1018 2x630 2580 1426 1018 Airmax II 630 3x630 3580 1426 1018 4x630 4580 1426 1018 5x630 5580 1426 1018 1x800 1780 1666 1136 Airmax II 800 2x800 2980 1666 1136 3x800 4180 1666 1136 4x800 5380 1666 1136 Airmax II 500 0 50 100 150 200 Airmax II 560 Airmax II 630 Airmax II 800 5 60 105 141 23 25 75 125 175 14 10 180 Direct Expansion kW (Eurovent condition SC2 fin spacing 6 mm) A B C
