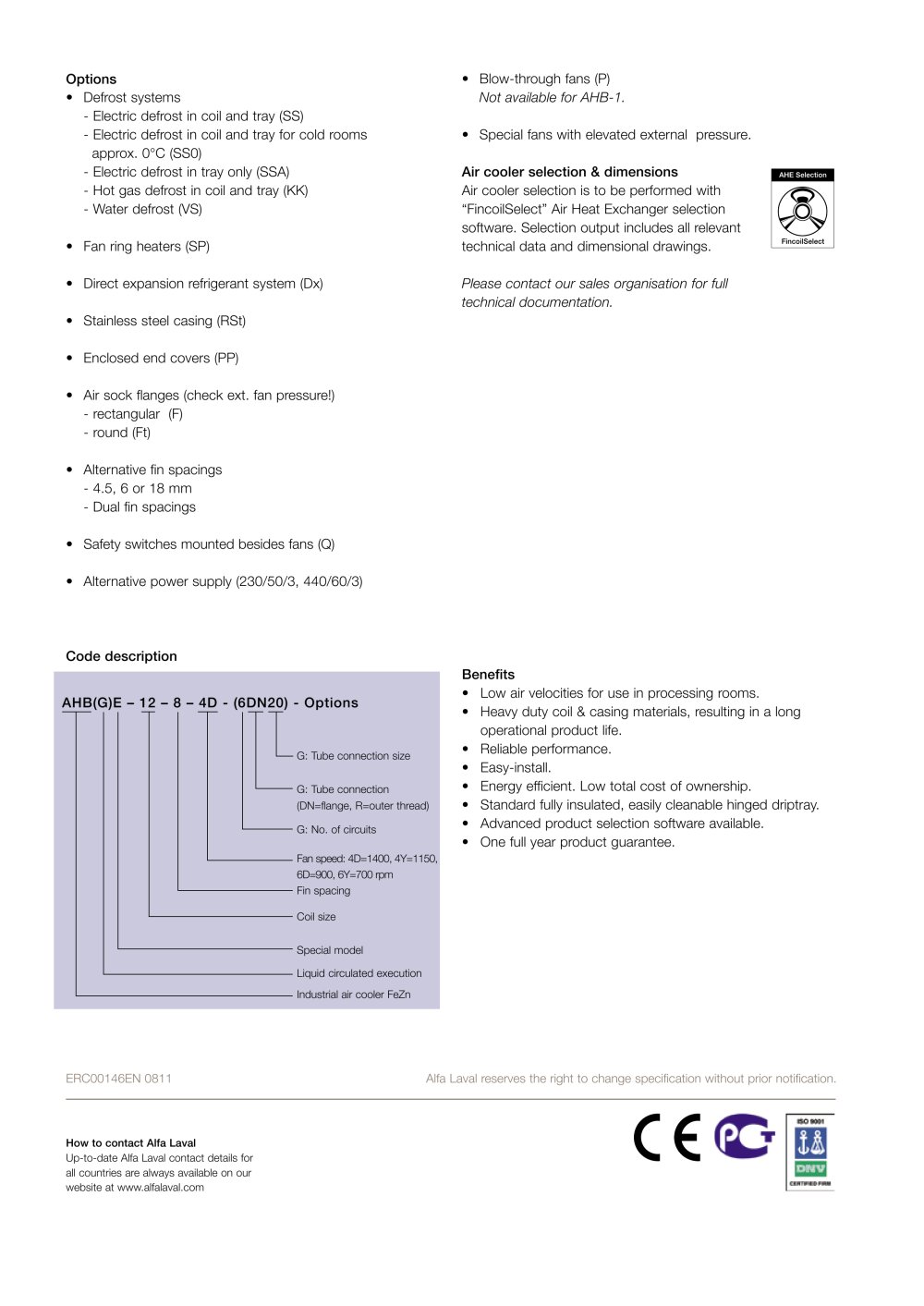

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00146EN 0811 Options • Defrost systems - Electric defrost in coil and tray (SS) - Electric defrost in coil and tray for cold rooms approx. 0°C (SS0) - Electric defrost in tray only (SSA) - Hot gas defrost in coil and tray (KK) - Water defrost (VS) • Fan ring heaters (SP) • Direct expansion refrigerant system (Dx) • Stainless steel casing (RSt) • Enclosed end covers (PP) • Air sock flanges (check ext. fan pressure!) - rectangular (F) - round (Ft) • Alternative fin spacings - 4.5, 6 or 18 mm - Dual fin spacings • Safety switches mounted besides fans (Q) • Alternative power supply (230/50/3, 440/60/3) • Blow-through fans (P) Not available for AHB-1. • Special fans with elevated external pressure. Air cooler selection & dimensions Air cooler selection is to be performed with “FincoilSelect” Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. Please contact our sales organisation for full technical documentation. Benefits • Low air velocities for use in processing rooms. • Heavy duty coil & casing materials, resulting in a long operational product life. • Reliable performance. • Easy-install. • Energy efficient. Low total cost of ownership. • Standard fully insulated, easily cleanable hinged driptray. • Advanced product selection software available. • One full year product guarantee. AHB(G)E – 12 – 8 – 4D - (6DN20) - Options G: Tube connection (DN=flange, R=outer thread) G: No. of circuits Fan speed: 4D=1400, 4Y=1150, 6D=900, 6Y=700 rpm Fin spacing Coil size Special model Liquid circulated execution Industrial air cooler FeZn Alfa Laval reserves the right to change specification without prior notification. Code description G: Tube connection size
