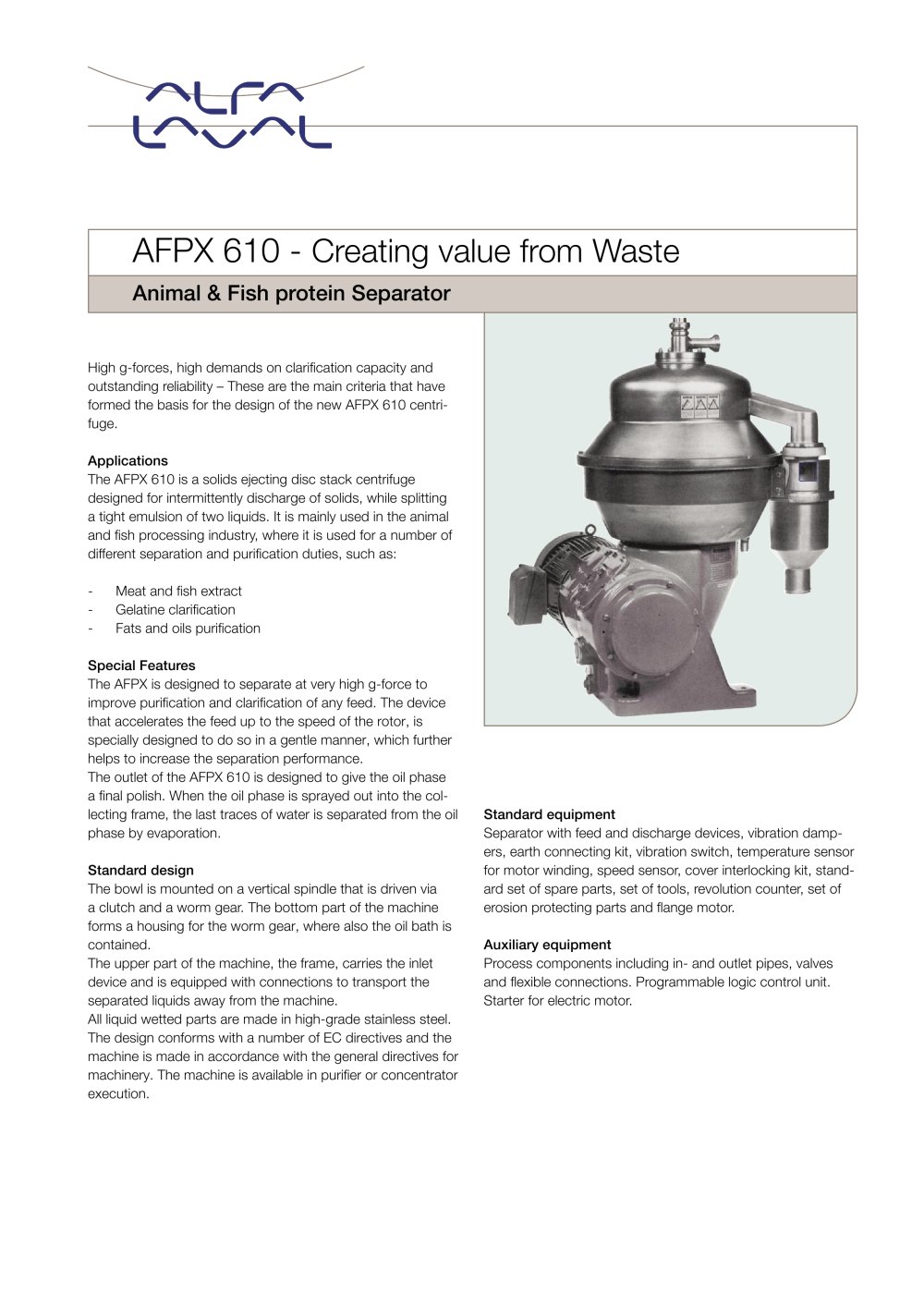

Animal & Fish protein Separator AFPX 610 - Creating value from Waste High g-forces, high demands on clarification capacity and outstanding reliability – These are the main criteria that have formed the basis for the design of the new AFPX 610 centrifuge. ApplicationsThe AFPX 610 is a solids ejecting disc stack centrifuge designed for intermittently discharge of solids, while splitting a tight emulsion of two liquids. It is mainly used in the animal and fish processing industry, where it is used for a number of different separation and purification duties, such as: - Meat and fish extract - Gelatine clarification - Fats and oils purification Special FeaturesThe AFPX is designed to separate at very high g-force to improve purification and clarification of any feed. The device that accelerates the feed up to the speed of the rotor, is specially designed to do so in a gentle manner, which further helps to increase the separation performance.The outlet of the AFPX 610 is designed to give the oil phase a final polish. When the oil phase is sprayed out into the collecting frame, the last traces of water is separated from the oil phase by evaporation. Standard designThe bowl is mounted on a vertical spindle that is driven via a clutch and a worm gear. The bottom part of the machine forms a housing for the worm gear, where also the oil bath is contained. The upper part of the machine, the frame, carries the inlet device and is equipped with connections to transport the separated liquids away from the machine. All liquid wetted parts are made in high-grade stainless steel. The design conforms with a number of EC directives and the machine is made in accordance with the general directives for machinery. The machine is available in purifier or concentrator execution. Standard equipmentSeparator with feed and discharge devices, vibration dampers, earth connecting kit, vibration switch, temperature sensor for motor winding, speed sensor, cover interlocking kit, standard set of spare parts, set of tools, revolution counter, set of erosion protecting parts and flange motor. Auxiliary equipment Process components including in- and outlet pipes, valves and flexible connections. Programmable logic control unit. Starter for electric motor.
Open the catalog to page 1Operating principles Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl (fig 2) from the top via a stationary inlet pipe (1), and is accelerated in the distributor (2), before entering the disc stack (3). The distributor is designed especially to ensure smooth acceleration of the feed liquid (4). The separation of liquid-liquid-solids takes place between the discs, with the oil phase moving through the disc stack to the centre and is discharged through pipes (5) and sprayed out into the collecting frame. The water and solids separated from...
