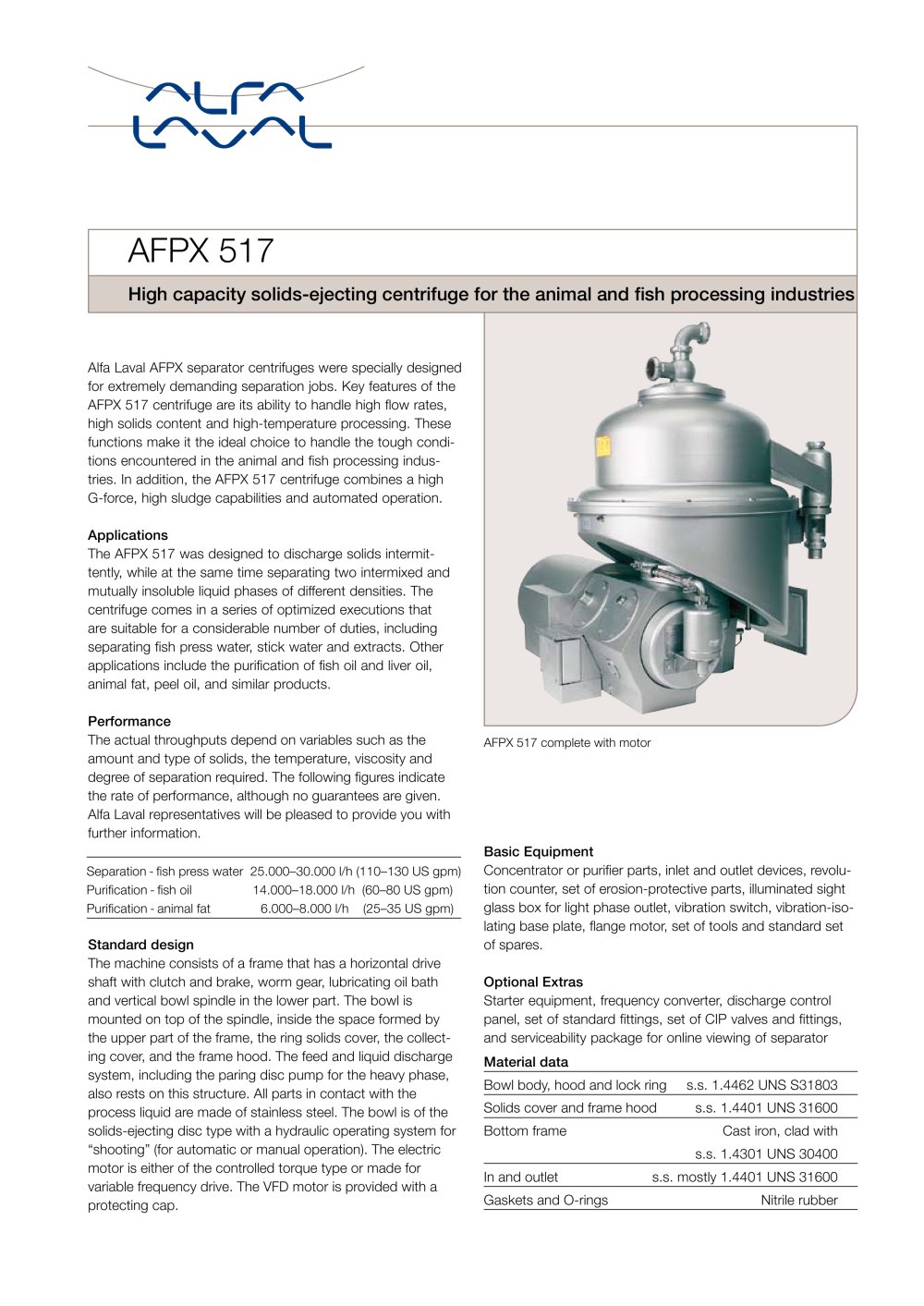

High capacity solids-ejecting centrifuge for the animal and fish processing industries AFPX 517 Alfa Laval AFPX separator centrifuges were specially designed for extremely demanding separation jobs. Key features of the AFPX 517 centrifuge are its ability to handle high flow rates, high solids content and high-temperature processing. These functions make it the ideal choice to handle the tough conditions encountered in the animal and fish processing industries. In addition, the AFPX 517 centrifuge combines a high G-force, high sludge capabilities and automated operation. Applications The AFPX 517 was designed to discharge solids intermittently, while at the same time separating two intermixed and mutually insoluble liquid phases of different densities. The centrifuge comes in a series of optimized executions that are suitable for a considerable number of duties, including separating fish press water, stick water and extracts. Other applications include the purification of fish oil and liver oil, animal fat, peel oil, and similar products. Performance The actual throughputs depend on variables such as the amount and type of solids, the temperature, viscosity and degree of separation required. The following figures indicate the rate of performance, although no guarantees are given. Alfa Laval representatives will be pleased to provide you with further information. AFPX 517 complete with motor Separation - fish press water 25.000–30.000 l/h (110–130 US gpm) Purification - fish oil 14.000–18.000 l/h (60–80 US gpm) Purification - animal fat 6.000–8.000 l/h (25–35 US gpm) Standard design The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear, lubricating oil bath and vertical bowl spindle in the lower part. The bowl is mounted on top of the spindle, inside the space formed by the upper part of the frame, the ring solids cover, the collecting cover, and the frame hood. The feed and liquid discharge system, including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solids-ejecting disc type with a hydraulic operating system for “shooting” (for automatic or manual operation). The electric motor is either of the controlled torque type or made for variable frequency drive. The VFD motor is provided with a protecting cap. Basic Equipment Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts, illuminated sight glass box for light phase outlet, vibration switch, vibration-isolating base plate, flange motor, set of tools and standard set of spares. Optional Extras Starter equipment, frequency converter, discharge control panel, set of standard fittings, set of CIP valves and fittings, and serviceability package for online viewing of separator Material data Bowl body, hood and lock ring s.s. 1.4462 UNS S31803 Solids cover and frame hood s.s. 1.4401 UNS 31600 Bottom frame Cast iron, clad with s.s. 1.4301 UNS 30400 In and outlet s.s. mostly 1.4401 UNS 31600 Gaskets and O-rings Nitrile rubber
Open the catalog to page 1Operating principles Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe (1), and is accelerated in the distributor (2), which was specially designed to ensure smooth acceleration of the feed liquid (4). Leaving the distributor, the feed enters the disc stack (3). The separation into liquid–liquid– solids takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through pipes (5) and ejected into the collecting frame....
