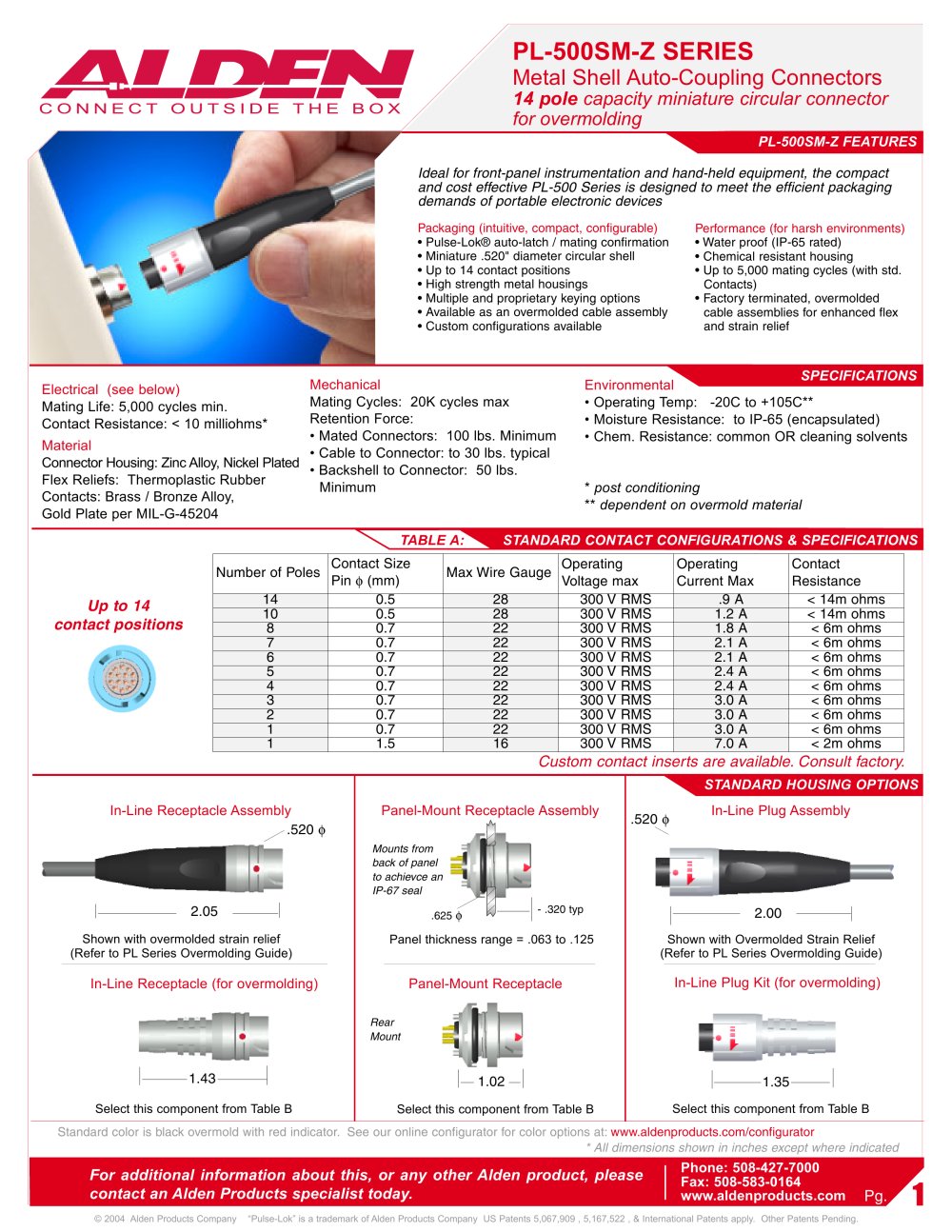

PL-500SM-Z SERIES
Metal Shell Auto-Coupling Connectors 14 pole capacity miniature circular connector for overmolding
CON N ECT
PL-500SM-Z FEATURES
Ideal for front-panel instrumentation and hand-held equipment, the compact and cost effective PL-500 Series is designed to meet the efficient packaging demands of portable electronic devices
Packaging (intuitive, compact, configurable)
• Pulse-Lok® auto-latch / mating confirmation
• Miniature .520" diameter circular shell
• Up to 14 contact positions
• High strength metal housings
• Multiple and proprietary keying options
• Available as an overmolded cable assembly
• Custom configurations available
Performance (for harsh environments)
• Water proof (IP-65 rated)
• Chemical resistant housing
• Up to 5,000 mating cycles (with std. Contacts)
• Factory terminated, overmolded cable assemblies for enhanced flex and strain relief
SPECIFICATIONS
Electrical (see below) Mechanical
Mating Life: 5,000 cycles min. Mating Cycles: 20K cycles max
Contact Resistance: < 10 milliohms* Ftetention Forces:
Environmental ^
• Operating Temp: -20C to +105C**
• Moisture Resistance: to IP-65 (encapsulated)
• Chem. Resistance: common OR cleaning solvents
Material * Mated Connectors: 100 lbs. M
~ . ., ... k ,■ . . ™ . , * Cable to Connector: to 30
/Imimum typical
Connector Housing: Zinc Alloy, Nickel Plated
Flex Reliefs: Thermoplastic Rubber
Contacts: Brass / Bronze Alloy,
Gold Plate per MIL-G-45204
Backshell to Connector: 50 lbs. Minimum
' post conditioning
* dependent on overmold material
STANDARD CONTACT CONFIGURATIONS & SPECIFICATIONS
TABLE A?
Number of Poles
Contact Size Pin <) (mm)
Max Wire Gauge
Operating Voltage max
Operating Current Max
Contact Résistance
14
0.5
28
300 V RMS
.9 A
< 14m ohms
10
0.5
28
300 V RMS
1.2 A
< 14m ohms
8
0.7
22
300 V RMS
1.8 A
< 6m ohms
7
0.7
22
300 V RMS
2.1 A
< 6m ohms
6
0.7
22
300 V RMS
2.1 A
< 6m ohms
5
0.7
22
300 V RMS
2.4 A
< 6m ohms
4
0.7
22
300 V RMS
2.4 A
< 6m ohms
3
0.7
22
300 V RMS
3.0 A
< 6m ohms
2
0.7
22
300 V RMS
3.0 A
< 6m ohms
1
0.7
22
300 V RMS
3.0 A
< 6m ohms
1
1.5
16
300 V RMS
7.0 A
< 2m ohms
Up to 14 contact positions
Custom contact inserts are available. Consult factory.
STANDARD HOUSING OPTIONS
Panel-Mount Receptacle Assembly
In-Line Receptacle Assembly
In-Line Plug Assembly
.520 <)
.520 |
Mounts from back of panel to achievce an IP-67 seal
.320 typ
.625 <)
Panel thickness range = .063 to .125 Panel-Mount Receptacle
Shown with Overmolded Strain Relief (Refer to PL Series Overmolding Guide)
In-Line Plug Kit (for overmolding)
Shown with overmolded strain relief (Refer to PL Series Overmolding Guide)
In-Line Receptacle (for overmolding)
Rear Mount
-1.43-
Select this component from Table B
Select this component from Table B
Select this component from Table B
Standard color is black overmold with red indicator. See our online configurator for color options at: www.aldenproducts.com/configurator
* All dimensions shown in inches except where indicated
For additional information about this, or any other Alden product, please contact an Alden Products specialist today.
Phone: 508-427-7000 A Fax: 508-583-0164 A www.aldenproducts.com Pg..^fl
