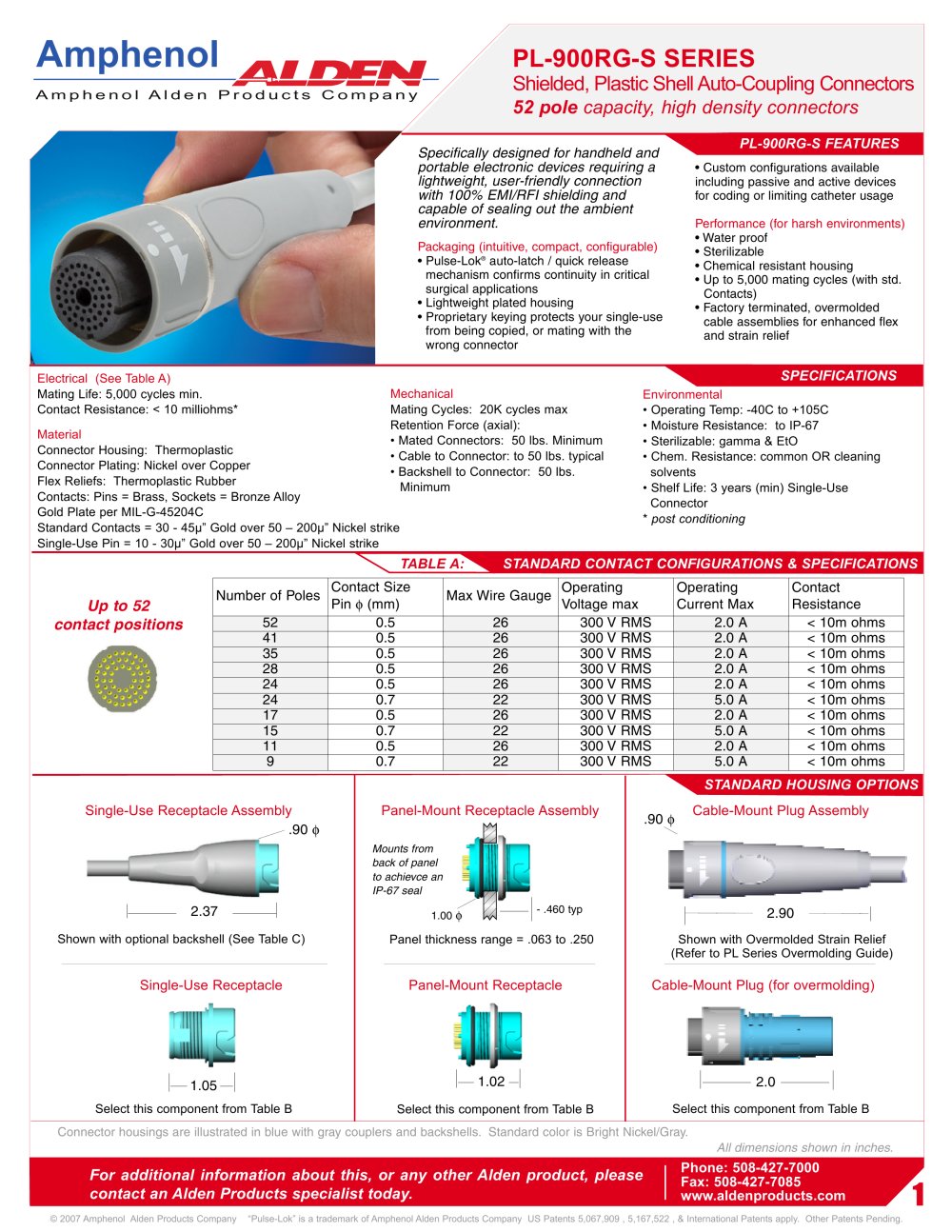

Introducing the Pulse-Lok®, PL-900RG-S Series, plated plastic, circular connector - Alden - (Version JPG) - PDF Catalogue | Technical Documentation

See other catalogues for Alden

High-voltage connector, Connector, Circular connector

Text version of the page

Amphenol

PL-900RG-S SERIES

Amphenol Alden Products Company

PL-900RG-S FEATURES

Specifically designed for handheld and portable electronic devices requiring a lightweight, user-friendly connection with 100% EMI/RFI shielding and capable of sealing out the ambient environment.

Packaging (intuitive, compact, configurable)

• Pulse-Lok® auto-latch / quick release mechanism confirms continuity in critical surgical applications

• Lightweight plated housing

• Proprietary keying protects your single-use from being copied, or mating with the wrong connector

• Custom configurations available including passive and active devices for coding or limiting catheter usage

Performance (for harsh environments)

• Water proof

• Sterilizable

• Chemical resistant housing

• Up to 5,000 mating cycles (with std. Contacts)

• Factory terminated, overmolded cable assemblies for enhanced flex and strain relief

SPECIFICATIONS

Electrical (See Table A) Mating Life: 5,000 cycles min. Contact Resistance: < 10 milliohms*

Mechanical

Mating Cycles: 20K cycles max Retention Force (axial):

• Mated Connectors: 50 lbs. Minimum

• Cable to Connector: to 50 lbs. typical

Environmental

' Operating Temp: -40C to +105C ¹ Moisture Resistance: to IP-67 ¹ Sterilizable: gamma & EtO ¹ Chem. Resistance: common OR cleaning solvents

¹ Shelf Life: 3 years (min) Single-Use Connector ' post conditioning

Material

Connector Housing: Thermoplastic

Connector Plating: Nickel over Copper Flex Reliefs: Thermoplastic Rubber

• Backshell to Connector: 50 lbs. Minimum

Contacts: Pins = Brass, Sockets = Bronze Alloy Gold Plate per MIL-G-45204C

Standard Contacts = 30 - 45u" Gold over 50 - 200u" Nickel strike Single-Use Pin = 10 - 30u" Gold over 50 - 200u" Nickel strike

TABLEA:

STANDARD CONTACT CONFIGURATIONS & SPECIFICATIONS


Number of Poles	Contact Size Pin ) (mm)	Max Wire Gauge	Operating Voltage max	Operating Current Max	Contact Resistance
52	0.5	26	300 V RMS	2.0 A	< 10m ohms
41	0.5	26	300 V RMS	2.0 A	< 10m ohms
35	0.5	26	300 V RMS	2.0 A	< 10m ohms
28	0.5	26	300 V RMS	2.0 A	< 10m ohms
24	0.5	26	300 V RMS	2.0 A	< 10m ohms
24	0.7	22	300 V RMS	5.0 A	< 10m ohms
17	0.5	26	300 V RMS	2.0 A	< 10m ohms
15	0.7	22	300 V RMS	5.0 A	< 10m ohms
11	0.5	26	300 V RMS	2.0 A	< 10m ohms
9	0.7	22	300 V RMS

Up to 52 contact positions

Cable-Mount Plug Assembly

Connector housings are illustrated in blue with gray couplers and backshells. Standard color is Bright Nickel/Gray.

All dimensions shown in inches.

Phone: 508-427-7000 Fax: 508-427-7085 www.aldenproducts.com

For additional information about this, or any other Alden product, please contact an Alden Products specialist today.
