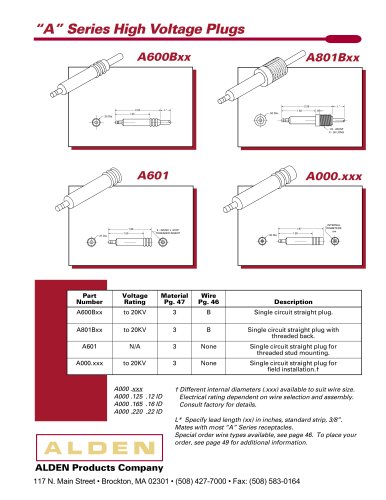

"A" Series High Voltage Plugs

A600BXX

'-2.00-►

■<-1.55-»|



H3Efl-




A801BXX

A601

AOOO.xxx

--1.97-

•>-1.50-►

"I



I Part

1 Number

Voltage

Rating

Material

Pg. 47

Wire

Pg. 46

Description

I A600BXX

to 20KV

3

B

Single circuit straight plug.

A801Bxx

to 20KV

3

B

Single circuit straight plug with

threaded back.

A601

N/A

3

None

Single circuit straight plug for

threaded stud mounting.

AOOO.xxx

to 20KV

3

None

Single circuit straight plug for

field installation.t

A000 .XXX

A000.125 .12 ID

A000.165 .16 ID

A000.220 .22 ID

t Different internal diameters (.xxx) available to suit wire size.

Electrical rating dependent on wire selection and assembly.

Consult factory for details.

L* Specify lead length (xx) in inches, standard strip, 3/8".

Mates with most "A " Series receptacles.

Special order wire types available, see page 46. To place your

order, see page 49 for additional information.
