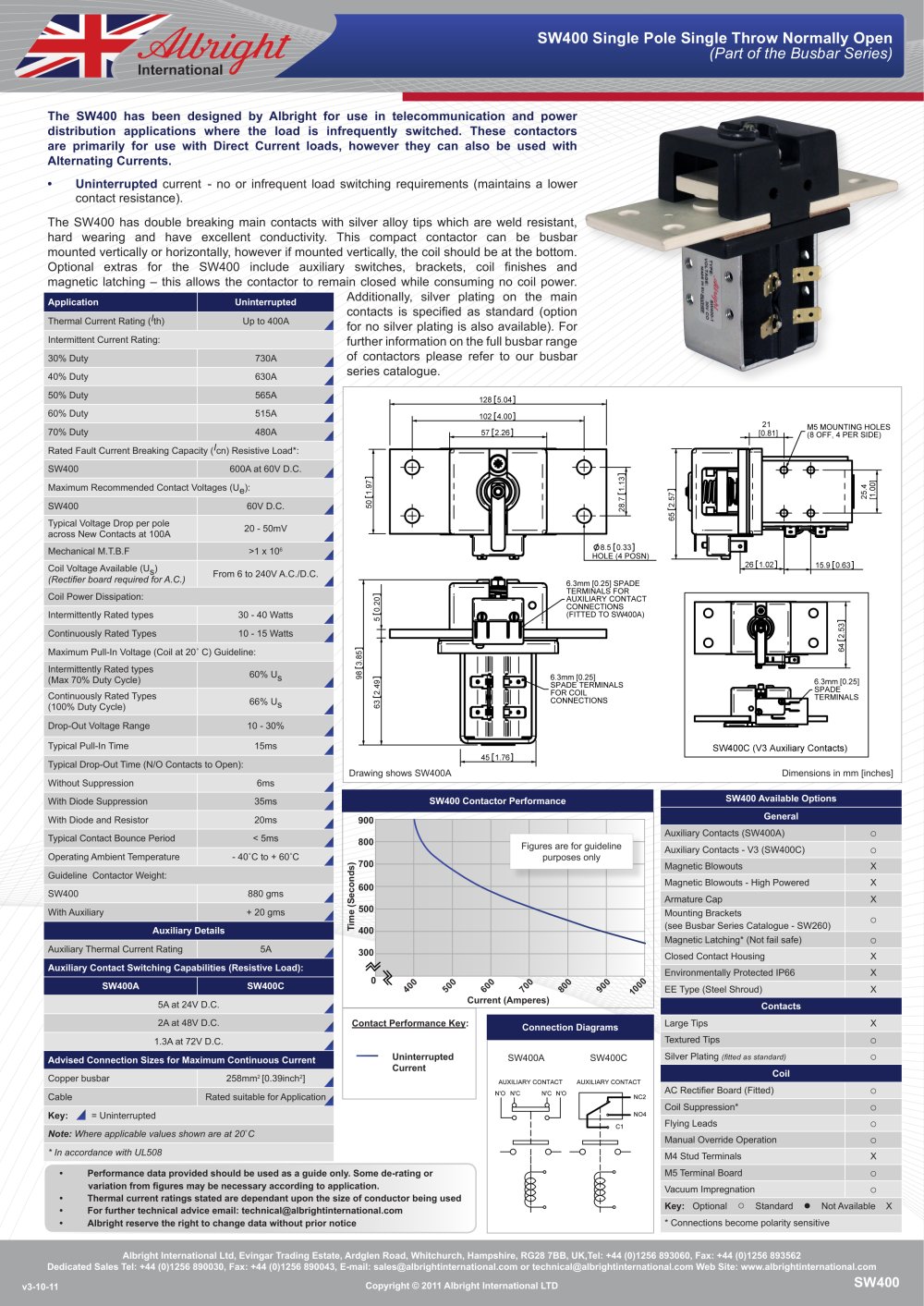

BR HomeServer EN table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } \ International (S SW400 Single Pole Single Throw Normally Open (Part of the Busbar Séries) The SW400 has been designed by Albright for use in télécommunication and power distribution applications where the load is infrequently switched. Thèse contactors are primarily for use with Direct Current loads, however they can also be used with Alternating Currents. • Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact résistance). The SW400 has double breaking main contacts with silver alloy tips which are weld résistant, hard wearing and have excellent conductivity. This compact contactor can be busbar mounted vertically or horizontally, however if mounted vertically, the coil should be at the bottom. Optional extras for the SW400 include auxiliary switches, brackets, coil finishes and magnetic latching - this allows the contactor to remain closed while consuming no coil power. Application Uninterrupted Thermal Current Rating ^th) Up to 400A ^ Intermittent Current Rating: 30% Duty 730A a 40% Duty 630A ^ 50% Duty 565A ^ 60% Duty 515A ^ 70% Duty 480A ^ Rated Fault Current Breaking Capacity ('cn) Resistive Load*: SW400 600A at 60V D.C. ^ Maximum Recommended Contact Voltages (Ue): SW400 60V D.C. ^ Typical Voltage Drop per pole across New Contacts at 100A 20 - 50mV Mechanical M.T.B.F >1 x 106 ^ Coil Voltage Available (Us) (Rectifier board required for A.C.) From 6 to 240V A.C./D.C. Coil Power Dissipation: Intermittently Rated types 30 - 40 Watts ^ Continuously Rated Types 10 - 15 Watts ^ Maximum Pull-In Voltage (Coil at 20° C) Guideline: Intermittently Rated types (Max 70% Duty Cycle) 60% Us Continuously Rated Types (100% Duty Cycle) 66% Us Drop-Out Voltage Range 10 - 30% j Typical Pull-In Time 15ms ^ Typical Drop-Out Time (N/O Contacts to Open): Without Suppression 6ms ^ With Diode Suppression 35ms ^ With Diode and Resistor 20ms ^ Typical Contact Bounce Period < 5ms ^ Operating Ambient Temperature - 40°C to + 60°C a Guideline Contactor Weight: SW400 880 gms ^ With Auxiliary + 20 gms ^ Auxiliary Details Auxiliary Thermal Current Rating 5A ^ Auxiliary Contact Switching Capabilities (Resistive Load): SW400A SW400C 5A at 24V D.C. ^ 2A at 48V D.C. ^ 1.3A at 72V D.C. ^ Advised Connection Sizes for Maximum Continuous Current Copper busbar 258mm2 [0.39inch2] ^ Cable Rated suitable for Application^ Key: = Uninterrupted Note: Where applicable values shown are at 20°C * In accordance with UL508 Additionally, silver plating on the main contacts is specified as standard (option for no silver plating is also available). For further information on the full busbar range of contactors please refer to our busbar séries catalogue. 128 [5.041 6.3mm [0 25] SPADE TERMINALS FOR COIL CONNECTIONS M5 MOUNTING HOLES [0-811 |, f (8 OFF, 4 PER SIDE) 5 [0.33] HOLE (4 POSN) 6.3mm [0.25] SPADE TERMINALS FOR AUXILIARY CONTACT CONNECTIONS (FITTED TO SW400A) 6.3mm [0.25] S ^SPADE SW400C (V3 Auxiliary Contacts) Drawing shows SW400A Dimensions in mm [inches] SW400 Available Options General Auxiliary Contacts (SW400A) o Auxiliary Contacts - V3 (SW400C) o Magnetic Blowouts X Magnetic Blowouts - High Powered X Armature Cap X Mounting Brackets (see Busbar Series Catalogue - SW260) o Magnetic Latching* (Not fail safe) o Closed Contact Housing X Environmentally Protected IP66 X EE Type (Steel Shroud) X Contacts Large Tips X Textured Tips o Silver Plating (fitted as standard) o Coil AC Rectifier Board (Fitted) o Coil Suppression* o Flying Leads o Manual Override Operation o M4 Stud Terminals X M5 Terminal Board o Vacuum Impregnation o Key: Optional o Standard • Not Available X * Connections become polarity sensitive — 7 o 6 SW400 Contactor Performance Figures are for guideline purposes only _ ai £ i- Current (Amperes) Contact Performance Key: Connection Diagrams Uninterrupted Current SW400A SW400C AUXILIARY CONTACT AUXILIARY CONTACT MO N'C N'C N'O I l—U C1 —O I O— —O I o— Performance data provided should be used as a guide only. Some de-rating or variation from figures may be necessary according to application. Thermal current ratings stated are dependant upon the size of conductor being used For further technical advice email: technical@albrightinternational.com Albright reserve the right to change data without prior notice Albright Internationa! Ltd.Evingar Trading Estate, Ardglen Road, Whitchurch, Hampshire, RG28 4BB, UK,Tel: +44 (0)1256 893060, 0ax: -044 (0)1256 893562 Dedicated Sales Tel: +44 (0)1256 890030, Fae: +44 (0)125n 89na43, E-moil: oales@albrightibternational.com ortechnical@albright.nternationel.com Web Site: www.albrightinternational.com SW400 Copyright © 2011 Albright International LTD v3-10-11
