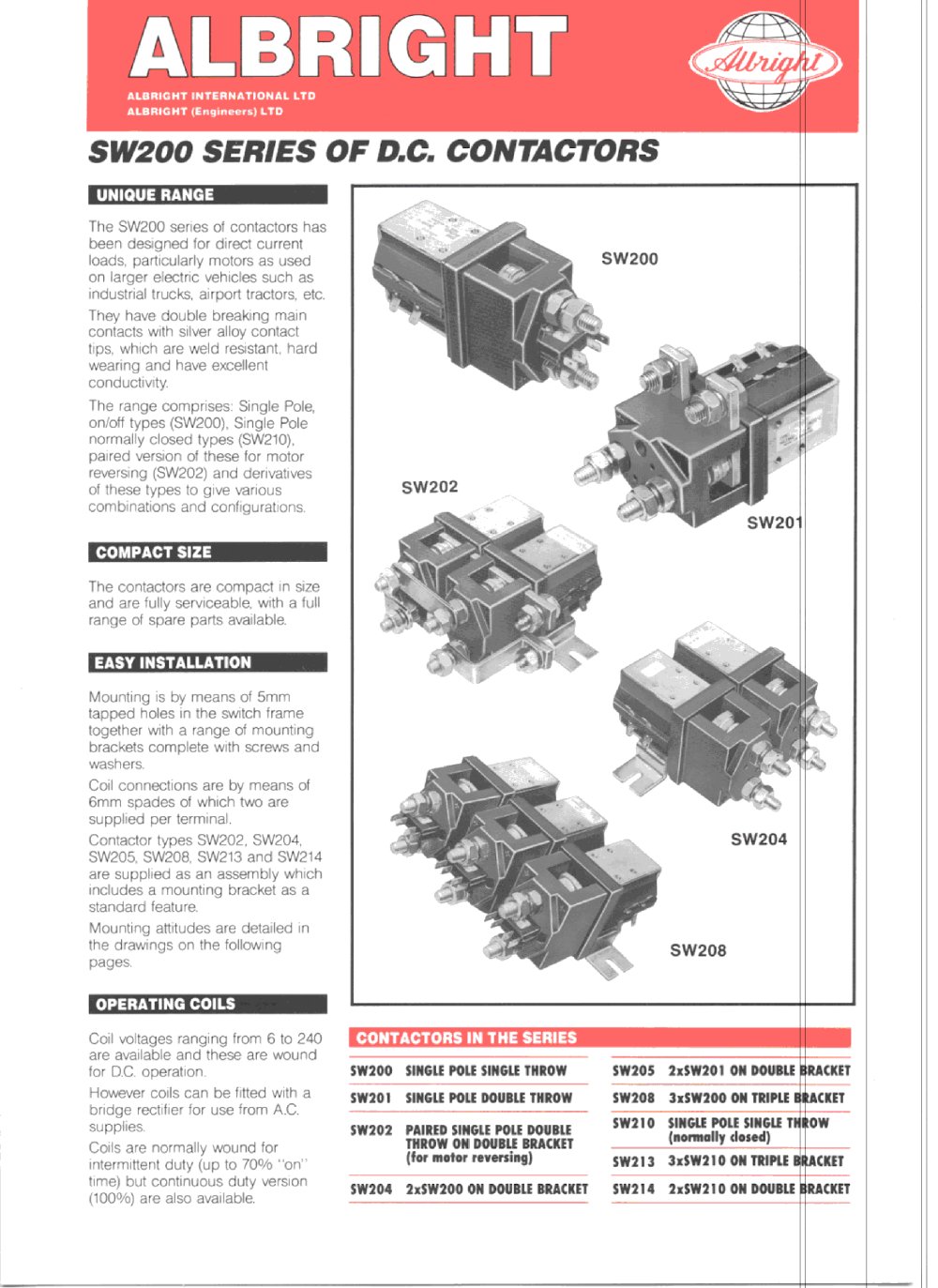

| SW200 SERIES OF D.C. CONTACTORS | |||||||||||||||||||||||||||||||
| UNIQUE RANGE | |||||||||||||||||||||||||||||||
| The SW200 series of contactors has been designed for direct current loads, particularly motors as used on larger efectnc vehicles such as industrial trucks, airport tractors, etc. They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity. The range comprises: Single Pole, on/off types (SW200), Single Pole normally closed types (SW210). paired version of these for motor reversing (SW202) and derivatives of these types to give various combinations and configurations. | |||||||||||||||||||||||||||||||
| SW200 | |||||||||||||||||||||||||||||||
| SW202 | |||||||||||||||||||||||||||||||
| COMPACT SIZE | |||||||||||||||||||||||||||||||
| The contactors are compact in size and are fully serviceable, with a full range of spare parts available. | |||||||||||||||||||||||||||||||
| EASY INSTALLATION | |||||||||||||||||||||||||||||||
| Mounting is by means of 5mm tapped holes in the switch frame together with a range of mounting brackets complete with screws and washers. Coil connections are by means of 6mm spades of which two are supplied per terminal. Contactor types SW202, SW204, SW205, SW208, SW213 and SW214 are supplied as an assembly which includes a mounting bracket as a standard feature. Mounting attitudes are detailed in the drawings on the following pages. | |||||||||||||||||||||||||||||||
| OPERATING COILS | |||||||||||||||||||||||||||||||
| CONTACTORS IN THE SERIES | |||||||||||||||||||||||||||||||
| Coil voltages ranging from 6 to 240 are available and these are wound for D.C. operation. However coils can be fitted with a bridge rectifier for use from A.C. supplies. Coils are normally wound for intermittent duty (up to 70% "on" time) but continuous duty version (100%) are also available. | |||||||||||||||||||||||||||||||
| SW200 SINGLE POLE SINGLE THROW | SW205 2xSW201 ON DOUBLE Bl SW208 3xSW200 ON TRIPLE BftJ | ||||||||||||||||||||||||||||||
| SW201 SINGLE POLE DOUBLE THROW | |||||||||||||||||||||||||||||||
| SW210 SINGLE POLE SINGLE THIEOW (normally dosed) SW213 3xSW210 ON TRIPLE BRACKET | |||||||||||||||||||||||||||||||
| SW202 PAIRED SINGLE POLE DOUBLE THROW ON DOUBLE BRACKET (for motor reversing) | |||||||||||||||||||||||||||||||
| SW204 2xSW200 ON DOUBLE BRACKET SW214 2xSW210 ON DOUBLE E RACKET | |||||||||||||||||||||||||||||||
