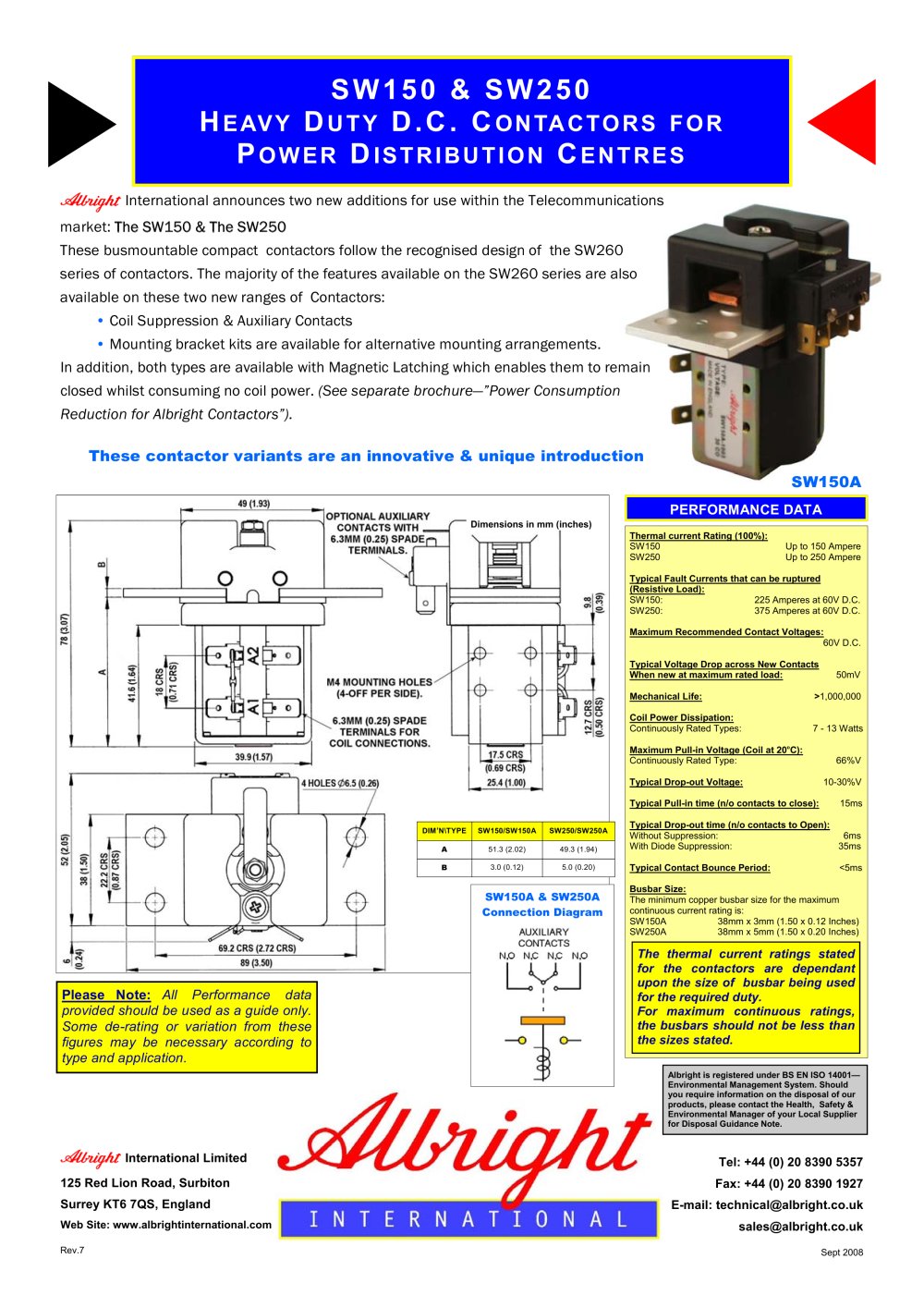

SW150 & SW250 Heavy Duty D.C. Contactors for Power Distribution Centres ji&biùj/iZ International announces two new additions for use within the Télécommunications market: The SW150 & The SW250 These busmountable compact contactors follow the recognised design of the SW260 series of contactors. The majority of the features available on the SW260 series are also available on these two new ranges of Contactors: • Coil Suppression & Auxiliary Contacts • Mounting bracket kits are available for alternative mounting arrangements. In addition, both types are available with Magnetic Latching which enables them to remain closed whilst consuming no coil power. (See separate brochure—"Power Consumption Réduction for Albright Contactors"). These contactor variants are an innovative & unique introduction SW150A provided should be used as a guide only. Some de-rating or variation from these figures may be necessary according to type and application. International Limited 125 Red Lion Road, Surbiton Surrey KT6 7QS, England Web Site: www.albrightinternational.com performance data Thermal current Rating (100%): SW150 SW250 Up to 150 Ampere Up to 250 Ampere Typical Fault Currents that can be ruptured (Resistive Load): SW150: 225 Amperes at 60V D.C. SW250: 375 Amperes at 60V D.C. Maximum Recommended Contact Voltages: 60V D.C. Typical Voltage Drop across New Contacts When new at maximum rated load: 50mV Mechanical Life: >1,000,000 Coil Power Dissipation: Continuously Rated Types: 7 - 13 Watts Maximum Pull-in Voltage (Coil at 20oC): Continuously Rated Type: 66%V Typical Drop-out Voltage: 10-30%V Typical Pull-in time (n/o contacts to close): 15ms Typical Drop-out time (n/o contacts to Open): Without Suppression: 6ms With Diode Suppression: 35ms Typical Contact Bounce Period: <5ms Busbar Size: The minimum copper busbar size for the maximum continuous current rating is: SW150A 38mm x 3mm (1.50 x 0.12 Inches) SW250A 38mm x 5mm (1.50 x 0.20 Inches) The thermal current ratings stated forthe contactors are dependant upon the size of busbar being used for the required duty. Formaximum continuous ratings, the busbars should not be less than the sizes stated. Albright is registered under BS EN ISO 14001— Environmental Management System. Should you require information on the disposal of our products, please contact the Health, Safety & Environmental Manager of your Local Supplier for Disposal Guidance Note. Tel: +44 (0) 20 8390 5357 Fax: +44 (0) 20 8390 1927 E-mail: technical@albright.co.uk sales@albright.co.uk Rev.7 Sept 2008
