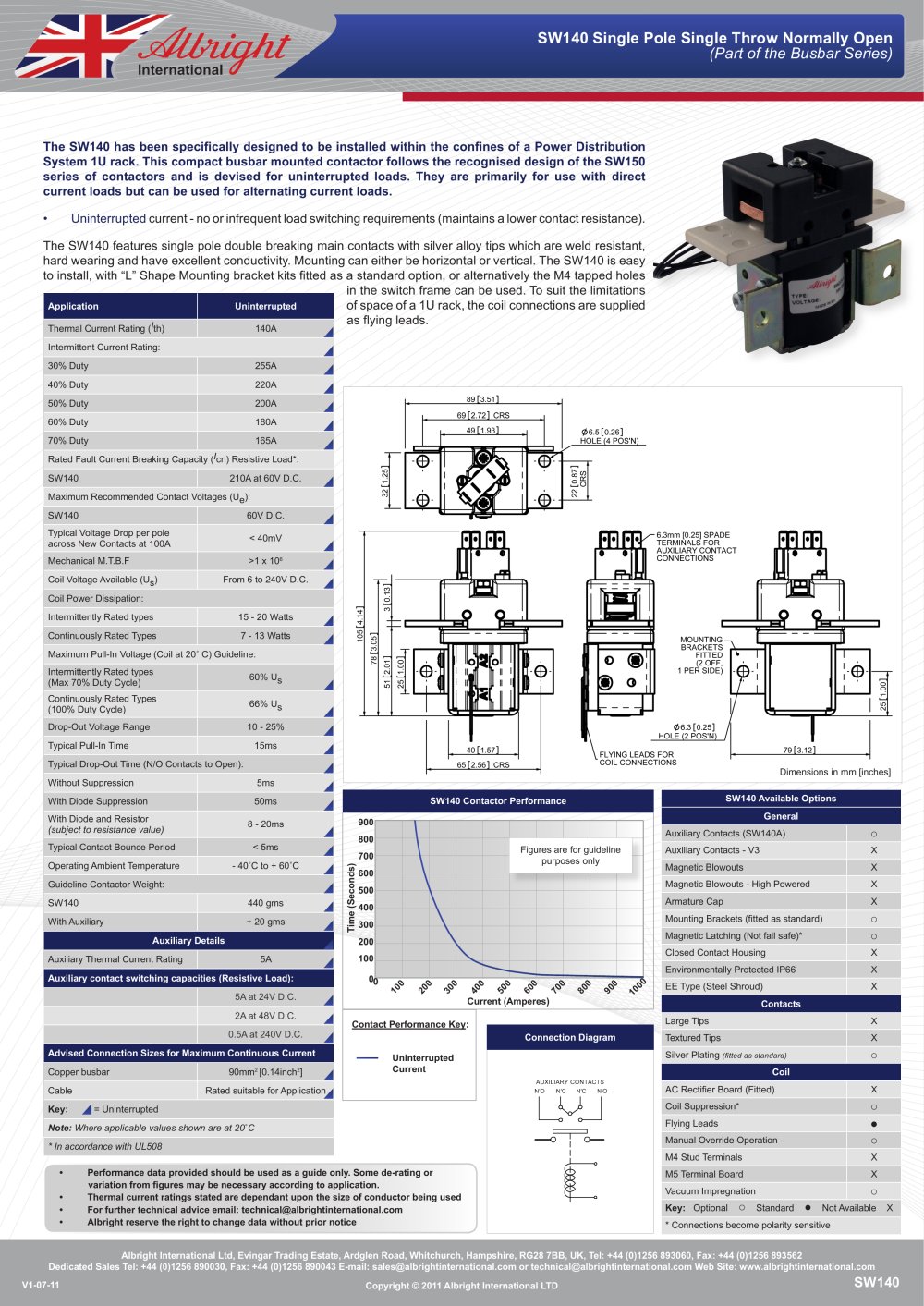

BR HomeServer EN table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:9.00pt "Courier New", monospace; } .font9 { font:23.00pt "Courier New", monospace; } SW140 Single Pole Single Throw Normally Open (Part of the Busbar Séries) The SW140 has been specifically designed to be installed within the confines of a Power Distribution System 1U rack. This compact busbar mounted contactor follows the recognised design of the SW150 series of contactors and is devised for uninterrupted loads. They are primarily for use with direct current loads but can be used for alternating current loads. • Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact résistance). The SW140 features single pole double breaking main contacts with silver alloy tips which are weld resistant, hard wearing and have excellent conductivity. Mounting can either be horizontal or vertical. The SW140 is easy to install, with "L" Shape Mounting bracket kits fitted as a standard option, or alternatively the M4 tapped holes Application Uninterrupted Thermal Current Rating (^h) 140A à Intermittent Current Rating: à 30% Duty 255A à 40% Duty 220A à 50% Duty 200A 60% Duty 180A à 70% Duty 165A A Rated Fault Current Breaking Capacity ('cn) Resistive Load*: SW140 210A at 60V D.C. à Maximum Recommended Contact Voltages (Ue): SW140 60V D.C. à Typical Voltage Drop per pole across New Contacts at 100A < 40mV A Mechanical M.T.B.F >1 x 106 A Coil Voltage Available (Us) From 6 to 240V D.C. ^ Coil Power Dissipation: Intermittently Rated types 15 - 20 Watts à Continuously Rated Types 7 - 13 Watts à Maximum Pull-In Voltage (Coil at 20° C) Guideline: Intermittently Rated types (Max 70% Duty Cycle) 60% Us À Continuously Rated Types (100% Duty Cycle) 66% Us à Drop-Out Voltage Range 10 - 25% à Typical Pull-In Time 15ms à Typical Drop-Out Time (N/O Contacts to Open): ^ Without Suppression 5ms à With Diode Suppression 50ms à With Diode and Resistor (subject to résistance value) 8 - 20ms à Typical Contact Bounce Period < 5ms à Operating Ambient Temperature - 40°C to + 60°C à Guideline Contactor Weight: à SW140 440 gms à With Auxiliary + 20 gms A Auxiliary Details Auxiliary Thermal Current Rating 5A à Auxiliary contact switching capacities (Resistive Load): 5A at 24V D.C. à 2A at 48V D.C. A à Advised Connection Sizes for Maximum Continuous Current Copper busbar 90mm2 [0.14inch2] à Cable Rated suitable for Application^ Key: = Uninterrupted Note: Where applicable values shown are at 20°C * In accordance with UL508 in the switch frame can be used. To suit the limitations of space of a 1U rack, the coil connections are supplied as flying leads. 89 T3.511 69 [2.721 CRS 49f1.931 è è e Dimensions in mm [inches] 79 [3.12] FLYING LEADS FOR COIL CONNECTIONS ( T3 6 o 5 (S4 SW140 Available Options General Auxiliary Contacts (SW140A) o Auxiliary Contacts - V3 X Magnetic Blowouts X Magnetic Blowouts - High Powered X Armature Cap X Mounting Brackets (fitted as standard) o Magnetic Latching (Not fail safe)* o Closed Contact Housing X Environmentally Protected IP66 X EE Type (Steel Shroud) X Contacts Large Tips X Textured Tips X Silver Plating (fitted as standard) o Coil AC Rectifier Board (Fitted) X Coil Suppression* o Flying Leads • Manual Override Operation o M4 Stud Terminals X M5 Terminal Board X Vacuum Impregnation o Key: Optional o Standard • Not Available X * Connections become polarity sensitive SW140 Contactor Performance 1 1 Figures are for guideline purposes only - - Current (Amperes) Contact Performance Key: Uninterrupted Current Performance data provided should be used as a guide only. Some de-rating or variation from figures may be necessary according to application. Thermal current ratings stated are dependant upon the size of conductor being used For further technical advice email: technical@albrightinternational.com Albright reserve the right to change data without prior notice Albright Internbtiona l Ltd,Evingar Trading Estate, Ardglen Road, Whitchurch, Hampshirn, RG28 7BB, UK, Tel: +44 (0)1a56 893060, Fax: +44 (0)1256 893562 Dedicated Sales Tel: +44 (0)1256 890030, Fax: +44 (0)1256 e90043 E-mail: sales@nlbrightinternational.com ortechniebl@albrightintbrnational.cam Web Site: www.albrightinternational.com V1-07-11 Copyright © 2011 AlbrightInternationalLTD SW140
