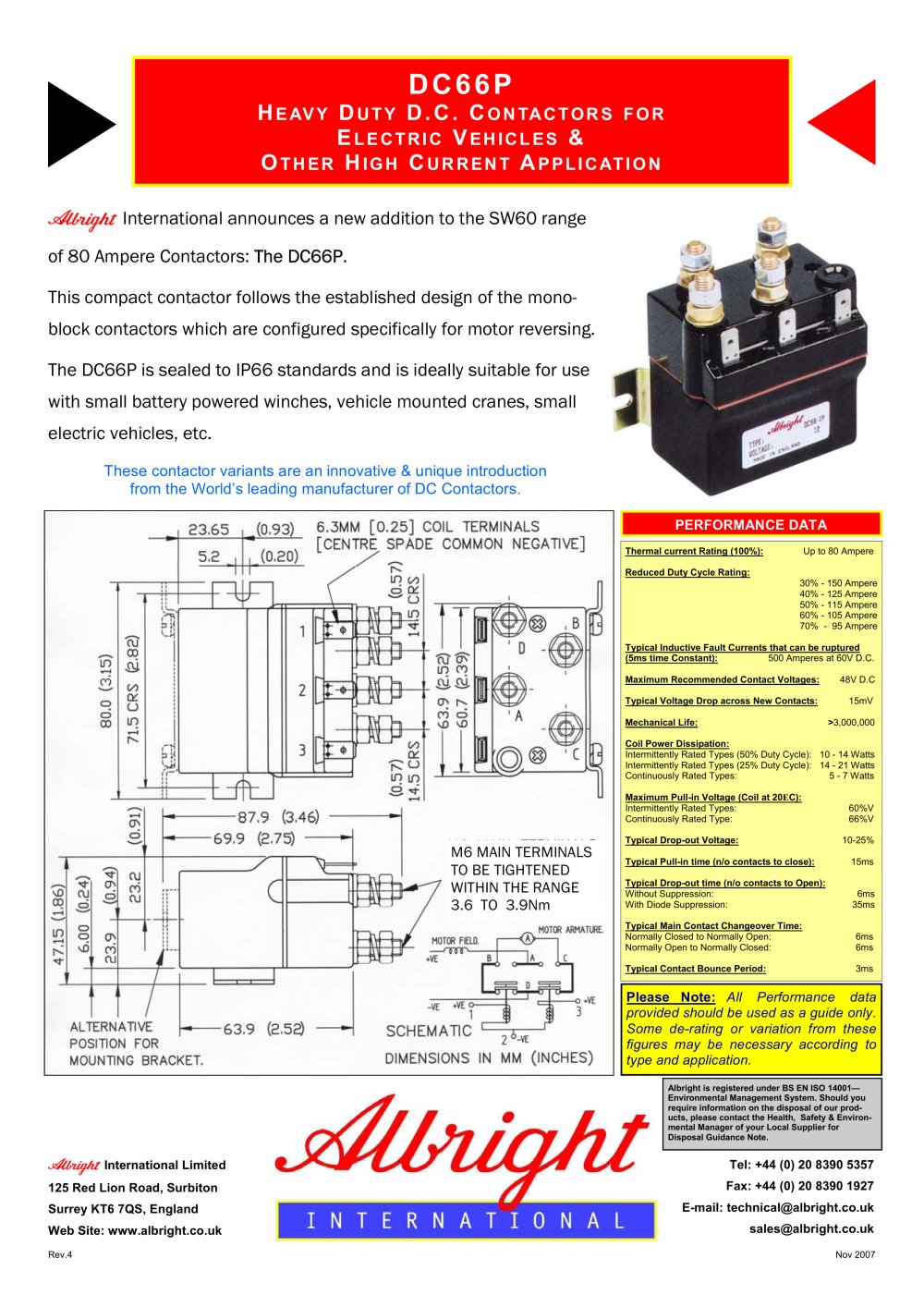

DC66P H

EAVY

D

UTY

D.C. C

ONTACTORSFOR

E

LECTRIC

V

EHICLES

&O

THER

H

IGH

C

URRENT

A

PPLICATION International announces a new addition to the SW60 range of 80 Ampere Contactors: T The DC66P . This compact contactor follows the established design of the mono-block contactors which are configured specifically for motor reversing. The DC66P is sealed to IP66 standards and is ideally suitable for use with small battery powered winches, vehicle mounted cranes, small electric vehicles, etc.

These contactor variants are an innovative & unique introduction from the World’s leading manufacturer of DC Contactors.

PERFORMANCE DATA

Thermal current Rating (100%): Up to 80 Ampere Reduced Duty Cycle Rating: Typical Inductive Fault Currents that can be ruptured 30% - 150 Ampere 40% - 125 Ampere 50% - 115 Ampere 60% - 105 Ampere 70% - 95 Ampere (5ms time Constant): 500 Amperes at 60V D.C. Maximum Recommended Contact Voltages: 48V D.C Typical Voltage Drop across New Contacts: 15mV Mechanical Life: > 3,000,000 Coil Power Dissipation: Intermittently Rated Types (50% Duty Cycle): 10 - 14 Watts Intermittently Rated Types (25% Duty Cycle): 14 - 21 Watts Continuously Rated Types: 5 - 7 Watts Maximum Pull-in Voltage (Coil at 20 E C): Intermittently Rated Types: 60%V Continuously Rated Type: 66%V Typical Drop-out Voltage: 10-25%

M6 MAIN TERMINALS TO BE TIGHTENED WITHIN THE RANGE 3.6 TO 3.9Nm

Typical Pull-in time (n/o contacts to close): 15ms Typical Drop-out time (n/o contacts to Open): Without Suppression: 6ms With Diode Suppression: 35ms Typical Main Contact Changeover Time: Normally Closed to Normally Open: 6ms Normally Open to Normally Closed: 6ms Typical Contact Bounce Period: 3ms

Please Note: All Performance data provided should be used as a guide only. Some de-rating or variation from these figures may be necessary according to type and application.

Albright is registered under BS EN ISO 14001—Environmental Management System. Should you require information on the disposal of our prod-ucts, please contact the Health, Safety & Environ-mental Manager of your Local Supplier for Disposal Guidance Note.

International Limited 125 Red Lion Road, Surbiton Surrey KT6 7QS, England Web Site: www.albright.co.uk Tel: +44 (0) 20 8390 5357 Fax: +44 (0) 20 8390 1927 E-mail: technical@albright.co.uk sales@albright.co.uk

Rev.4 Nov 2007
