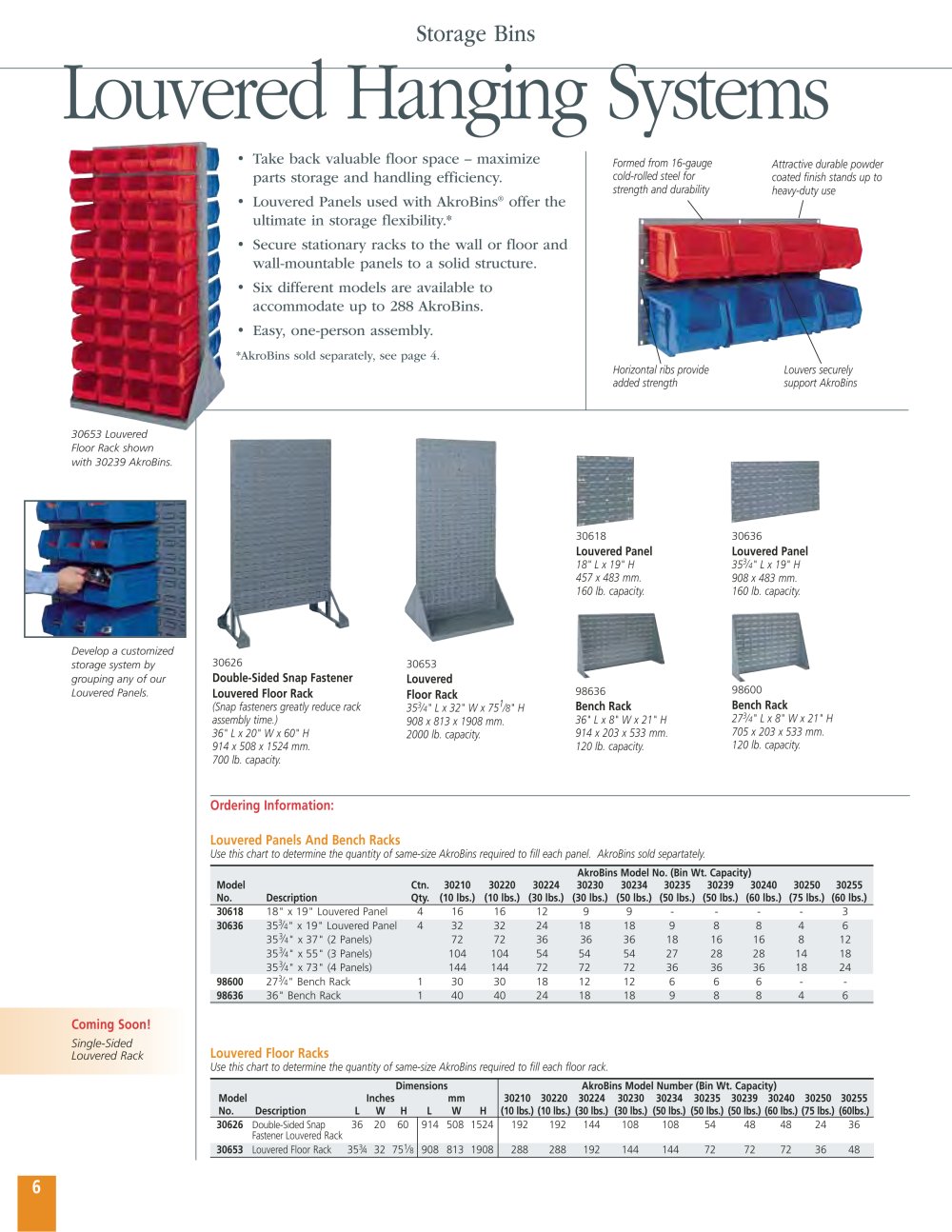

Storage Bins

kwered Hanging Systems

• Take back valuable floor space - maximize parts storage and handling efficiency.

• Louvered Panels used with AkroBins® offer the ultimate in storage flexibility.*

• Secure stationary racks to the wall or floor and wall-mountable panels to a solid structure.

• Six different models are available to accommodate up to 288 AkroBins.

• Easy, one-person assembly.

*AkroBins sold separately, see page 4.

Formed from 16-gauge cold-rolled steel for strength and durability

Attractive durable powder coated finish stands up to heavy-duty use

Horizontal ribs provide added strength

Louvers securely support AkroBins

30653 Louvered Floor Rack shown with 30239 AkroBins.

30618

Louvered Panel

18" Lx 19" H 457 x 483 mm. 160 lb. capacity.

30636

Louvered Panel

35³/4' Lx 19" H 908 x 483 mm. 160 lb. capacity.

Develop a customized storage system by grouping any of our Louvered Panels.

30626

Double-Sided Snap Fastener Louvered Floor Rack

(Snap fasteners greatly reduce rack

assembly time.)

36" L x20" Wx 60" H

914 x 508 x 1524 mm.

700 lb. capacity.

30653 Louvered Floor Rack

35³/4" L x 32" W x 75¹/8" H 908 x 813 x 1908 mm.

2000 lb. capacity.

98600

Bench Rack

27³/4" Lx8" Wx21" H

705 x 203 x 533 mm.

120 lb. capacity.

98636 Bench Rack

36" L x 8" Wx21" H 914 x 203 x 533 mm. 120 lb. capacity.

Ordering Information:

Louvered Panels And Bench Racks

Use this chart to determine the quantity of same-size AkroBins required to fill each panel. AkroBins sold separtately.

AkroBins Model No. (Bin Wt. Capacity)


Model		Ctn.	30210	30220	30224	30230	30234	30235	30239	30240	30250	30255
No.	Description	Qty.	(10 lbs.)	(10 lbs.)	(30 lbs.)	(30 lbs.)	(50 lbs.)	(50 lbs.)	(50 lbs.)	(60 lbs.)	(75 lbs.)	(60 lbs.)
30618	18" x 19" Louvered Panel	4	16	16	12	9	9	-	-	-	-	3
30636	35³/4" x 19" Louvered Panel	4	32	32	24	18	18	9	8	8	4	6
	35³/4" x 37" (2 Panels)		72	72	36	36	36	18	16	16	8	12
	35³/4" x 55" (3 Panels)		104	104	54	54	54	27	28	28	14	18
	35³/4" x 73" (4 Panels)		144	144	72	72	72	36	36	36	18	24
98600	27³/4" Bench Rack	1	30	30	18	12	12	6	6	6	-	-
98636	36" Bench Rack	1	40	40	24	18	18	9	8	8	4	6

Coming Soon!

Single-Sided Louvered Rack

Louvered Floor Racks

Use this chart to determine the quantity of same-size AkroBins required to fill each floor rack.


Dimensions Model Inches mm No. Description L W H L W H		AkroBins Model Number (Bin Wt. Capacity) 30210 30220 30224 30230 30234 30235 30239 30240 30250 30255 (10 lbs.) (10 lbs.) (30 lbs.) (30 lbs.) (50 lbs.) (50 lbs.) (50 lbs.) (60 lbs.) (75 lbs.) (60lbs.)
30626 Double-Sided Snap 36 20 60 Fastener Louvered Rack	914 508 1524	192 192 144 108 108 54 48 48 24 36
30653 Louvered Floor Rack 3 5³/4 3 2 7 5 V8	908 813 1908	288 288 192 144 144 72 72 72 36 48
