Trucks & Dollies

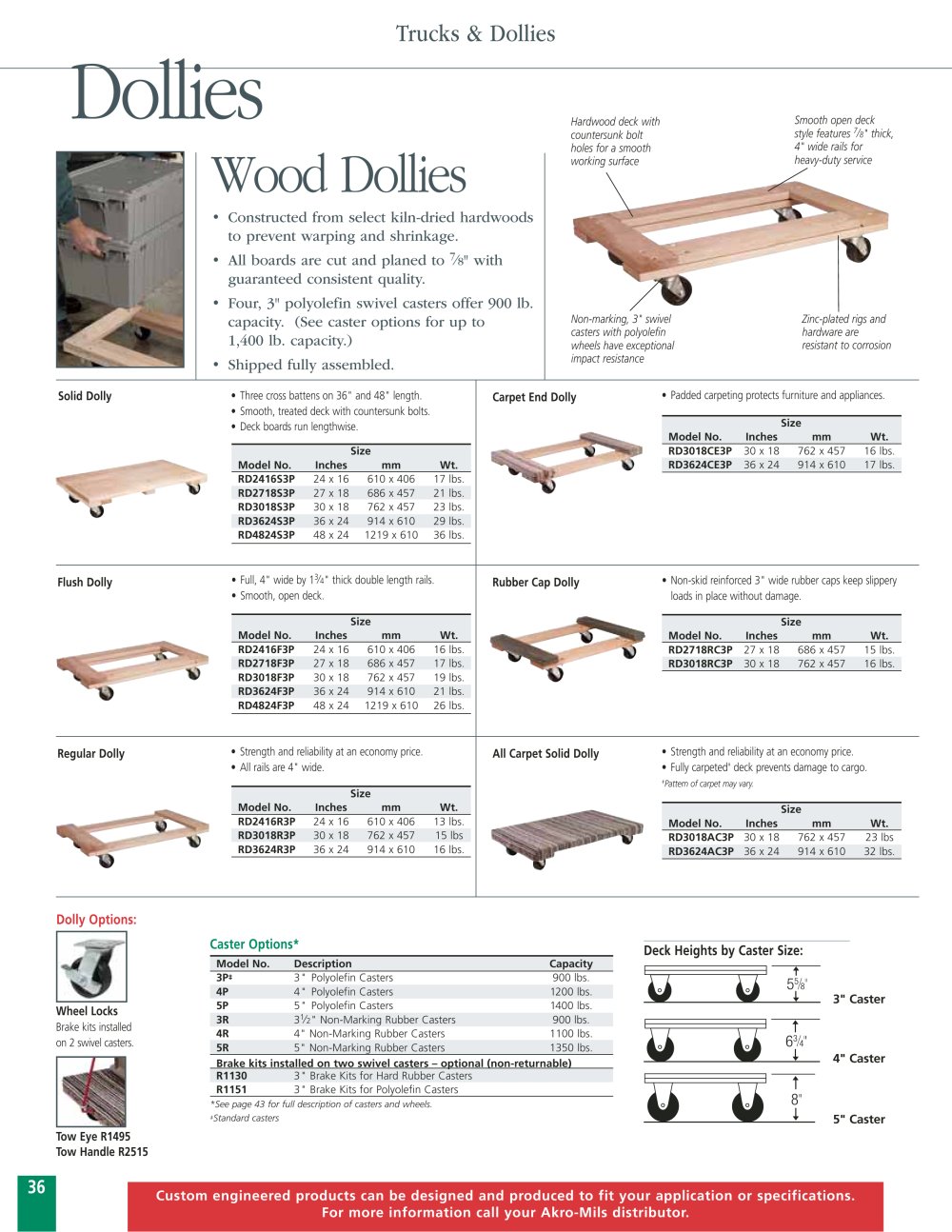

Akros Mils - Full Catalog - 9220 Dollies

Hardwood deck withcountersunk bolt holes for a smooth working surfaceSmooth open deckstyle features

7

�

8

" thick,4" wide rails for heavy-duty service Non-marking, 3" swivelcasters with polyolefinwheels have exceptionalimpact resistanceZinc-plated rigs andhardware are resistant to corrosion

•Constructed from select kiln-dried hardwoodsto prevent warping and shrinkage.• All boards are cut and planed to

Wood Dollies

7

�

8

" with guaranteed consistent quality.•Four, 3" polyolefin swivel casters offer 900 lb.capacity. (See caster options for up to 1,400 lb. capacity.)•Shipped fully assembled.

Solid Dolly Flush Dolly Regular Dolly Carpet End Dolly Rubber Cap Dolly All Carpet Solid Dolly •Three cross battens on 36" and 48" length. •Smooth, treated deck with countersunk bolts.•Deck boards run lengthwise.

Size Model No.InchesmmWt.RD3018CE3P Size 30 x 18762 x 45716 lbs. Model No.InchesmmWt.RD2416S3P RD3624CE3P 36 x 24914 x 61017 lbs. 24 x 16610 x 40617 lbs. RD2718S3P 27 x 18686 x 45721 lbs. RD3018S3P 30 x 18762 x 45723 lbs. RD3624S3P 36 x 24914 x 61029 lbs. RD4824S3P 48 x 241219 x 61036 lbs.

•Full, 4" wide by 1

3

�

4

" thick double length rails. •Smooth, open deck. •Strength and reliability at an economy price. •All rails are 4" wide. •Padded carpeting protects furniture and appliances. •Non-skid reinforced 3" wide rubber caps keep slippery loads in place without damage. •Strength and reliability at an economy price. •Fully carpeted

Size Size Model No.InchesmmWt.RD2416F3P Model No.InchesmmWt.RD2718RC3P 24 x 16610 x 40616 lbs. 27 x 18686 x 45715 lbs. RD2718F3P 27 x 18686 x 45717 lbs. RD3018RC3P 30 x 18762 x 45716 lbs. RD3018F3P 30 x 18762 x 45719 lbs. RD3624F3P 36 x 24914 x 61021 lbs. RD4824F3P 48 x 241219 x 61026 lbs.
‡

deck prevents damage to cargo.

‡ Pattern of carpet may vary. Size Model No.InchesmmWt.RD2416R3P Size 24 x 16610 x 40613 lbs. Model No.InchesmmWt.RD3018AC3P RD3018R3P 30 x 18762 x 45715 lbs 30 x 18762 x 45723 lbs RD3624R3P 36 x 24914 x 61016 lbs. RD3624AC3P 36 x 24914 x 61032 lbs.

Caster Options* Deck Heights by Caster Size:Dolly Options:

Model No.DescriptionCapacity3P
‡ 3"Polyolefin Casters900 lbs. 4P 4"Polyolefin Casters1200 lbs. 5P 5"Polyolefin Casters1400 lbs.

3" Caster Wheel Locks

1

Brake kits installedon 2 swivel casters.

3R 3 �
2 " Non-Marking Rubber Casters900 lbs. 4R 4" Non-Marking Rubber Casters1100 lbs. 5R 5" Non-Marking Rubber Casters1350 lbs. Brake kits installed on two swivel casters – optional (non-returnable)R1130

4" Caster

3"Brake Kits for Hard Rubber Casters R1151 3"Brake Kits for Polyolefin Casters
*See page 43 for full description of casters and wheels. ‡ Standard casters

5" Caster Tow Eye R1495Tow Handle R2515

36

Custom engineered products can be designed and produced to fit your application or specifications.For more information call your Akro-Mils distributor.
