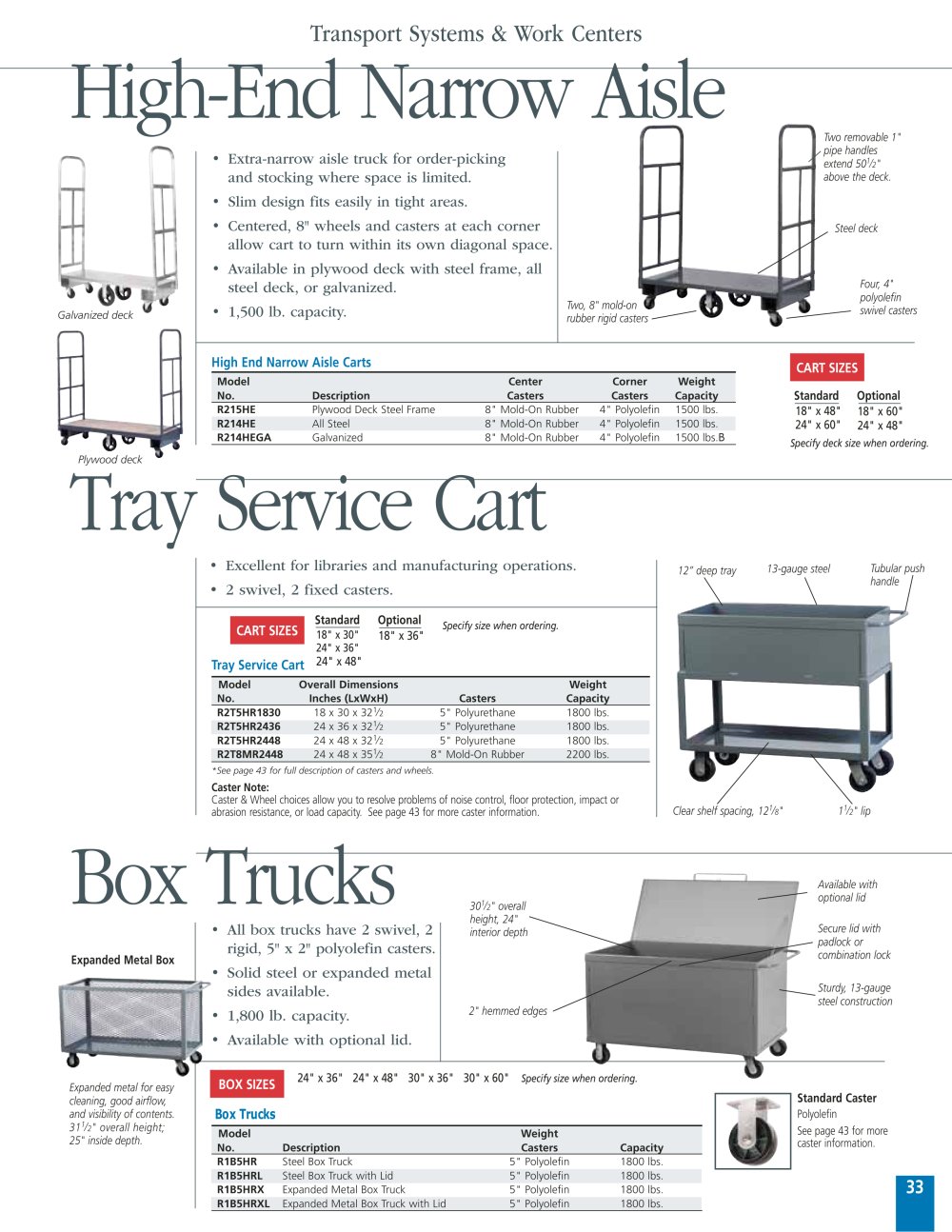

Transport Systems & Work Centers High-End Narrow Aisle

Two removable 1"pipe handles extend 50

•Extra-narrow aisle truck for order-picking and stocking where space is limited.•Slim design fits easily in tight areas. •Centered, 8" wheels and casters at each cornerallow cart to turn within its own diagonal space.•Available in plywood deck with steel frame, allsteel deck, or galvanized.•1,500 lb. capacity.

1

�

2

"above the deck. Two, 8" mold-onrubber rigid casters Steel deck Four, 4" polyolefinswivel casters

High End Narrow Aisle Carts CART SIZES

ModelCenterCornerWeight No.DescriptionCastersCastersCapacityR215HE

StandardOptional

Plywood Deck Steel Frame8" Mold-On Rubber4" Polyolefin1500 lbs.

18" x 48"24" x 60"18" x 60"24" x 48"

R214HE All Steel 8" Mold-On Rubber4" Polyolefin1500 lbs. R214HEGA Galvanized 8" Mold-On Rubber4" Polyolefin1500 lbs. B Specify deck size when ordering. Plywood deck Galvanized deck

Tray Service Cart

•Excellent for libraries and manufacturing operations.

12” deep tray 1 Tubular pushhandle

•2 swivel, 2 fixed casters.

StandardOptional

CART SIZES

Specify size when ordering. Specify size when ordering.

18" x 30" 24" x 36"

18" x 36"

TrayServiceCart

24" x 48"

Model Overall DimensionsWeight No.Inches (LxWxH)CastersCapacityR2T5HR1830 18 x 30 x 32
1 �
2 5" Polyurethane1800 lbs. R2T5HR2436 24 x 36 x 32
1 �
2 5" Polyurethane1800 lbs. R2T5HR2448 24 x 48 x 32
1 �
2 5" Polyurethane1800 lbs. R2T8MR2448 24 x 48 x 35
1 �
2 8" Mold-On Rubber2200 lbs.
*See page 43 for full description of casters and wheels.

Caster Note: Caster & Wheel choices allow you to resolve problems of noise control, floor protection, impact orabrasion resistance, or load capacity. See page 43 for more caster information.

1

�

8

" 13-gauge steel

1

�

2

" lipClear shelf spacing, 12

Box Trucks

30

1

�

2

" overallheight, 24" interior depthAvailable withoptional lid

•All box trucks have 2 swivel, 2rigid, 5" x 2" polyolefin casters.

Secure lid withpadlock or combination lock

Expanded Metal Box

•Solid steel or expanded metal sides available.•1,800 lb. capacity. •Available with optional lid.

Sturdy, 13-gaugesteel construction 2" hemmed edges Expanded metal for easy cleaning, good airflow, and visibility of contents. 31

BOX SIZES

24" x 36" 24" x 48" 30" x 36" 30" x 60" Standard Caster

Box Trucks

PolyolefinSee page 43 for morecaster information.

1

�

2

" overall height; 25" inside depth.

Model Weight No.DescriptionCastersCapacityR1B5HR Steel Box Truck5" Polyolefin1800 lbs. R1B5HRL Steel Box Truck with Lid5" Polyolefin1800 lbs. R1B5HRX Expanded Metal Box Truck5" Polyolefin1800 lbs. R1B5HRXL Expanded Metal Box Truck with Lid5" Polyolefin1800 lbs.

33
