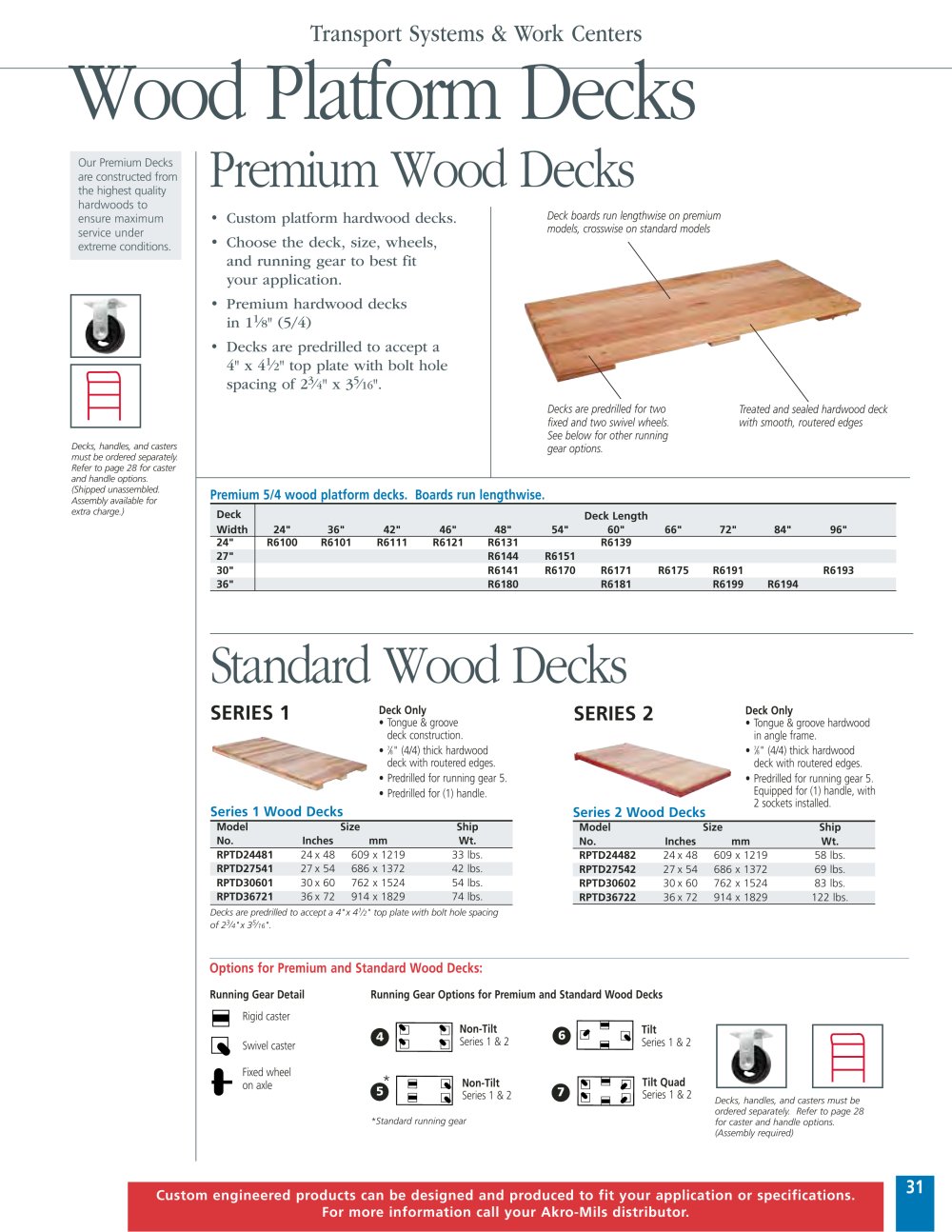

Transport Systems & Work Centers

Wood Platform Decks

Premium Wood Decks

Our Premium Decks are constructed from the highest quality hardwoods to ensure maximum service under extreme conditions.

Deck boards run lengthwise on premium models, crosswise on standard models

Custom platform hardwood decks.

Choose the deck, size, wheels, and running gear to best fit your application.

Premium hardwood decks in lVs" (5/4)

Decks are predrilled to accept a 4" x 4V2" top plate with bolt hole spacing of 2³/4" x 3⁵/i6".

♦

Decks are predrilled for two fixed and two swivel wheels. See below for other running gear options.

Treated and sealed hardwood deck with smooth, routered edges

Decks, handles, and casters must be ordered separately. Refer to page 28 for caster and handle options. (Shipped unassembled. Assembly available for extra charge.)

Premium 5/4 wood platform decks. Boards run lengthwise.


Deck			Deck Length
Width	24" 36" 42" 46" 48"	54"	60"	66"	72"	84"	96"
24"	R6100 R6101 R6111 R6121 R6131		R6139
27"	R6144	R6151
30"	R6141	R6170	R6171	R6175	R6191		R6193
36"	R6180		R6181		R6199	R6194

Standard Wood Decks

SERIES 1

Deck Only

• Tongue & groove deck construction.

• ⁷i" (4/4) thick hardwood deck with routered edges.

• Predrilled for running gear 5.

• Predrilled for (1) handle.

SERIES 2

Deck Only

• Tongue & groove hardwood in angle frame.

• ⁷i" (4/4) thick hardwood deck with routered edges.

• Predrilled for running gear 5. Equipped for (1) handle, with 2 sockets installed.

Series 1 Wood Decks

Series 2 Wood Decks


Model		Size	Ship	Model		Size	Ship
No.	Inches	mm	Wt.	No.	Inches	mm	Wt.
RPTD24481	24x 48	609 x 1219	33 lbs.	RPTD24482	24 x 48	609x 1219	58 lbs.
RPTD27541	27x 54	686 x 1372	42 lbs.	RPTD27542	27 x 54	686x1372	69 lbs.
RPTD30601	30 x 60	762 x 1524	54 lbs.	RPTD30602	30 x 60	762 x 1524	83 lbs.
RPTD36721	36x 72	914 x1829	74 lbs.	RPTD36722	36 x 72	914x 1829	122 lbs.

Decks are predrilled to accept a 4"x 4Vi" top plate with bolt hole spacing of 2³/4"x 3⁵/i6".

Options for Premium and Standard Wood Decks:

Running Gear Detail

Running Gear Options for Premium and Standard Wood Decks

Rigid caster

| ^ Swivel caster

"H"


fi	fi	Non-Tilt
fi	fi	Series 1 & 2

s		Non-Tilt
s	s	Series 1 & 2

Tilt

Series 1 & 2

Fixed wheel on axle

^r5*


fi	a	Tilt Quad
fi	a	Series 1 & 2

Decks, handles, and casters must be ordered separately. Refer to page 28 for caster and handle options. (Assembly required)

*Standard running gear

Custom engineered products can be designed and produced to fit your application or specifications. For more information call your Akro-Mils distributor.
