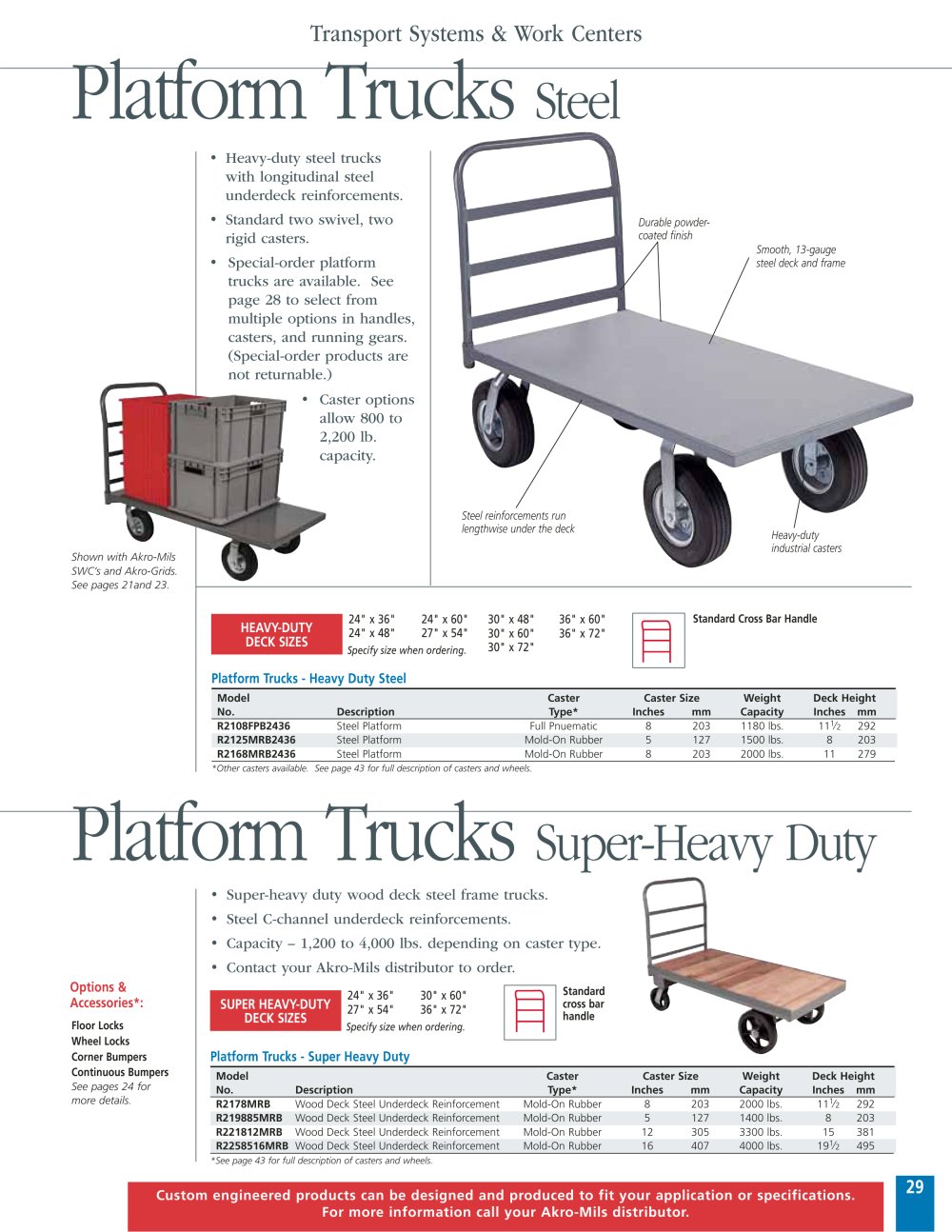

Transport Systems & Work Centers

Platform Trucks Steel

Heavy-duty steel trucks with longitudinal steel underdeck reinforcements.

Standard two swivel, two rigid casters.

Special-order platform trucks are available. See page 28 to select from multiple options in handles, casters, and running gears. (Special-order products are not returnable.)

Caster options allow 800 to 2,200 lb. capacity.

Smooth, 13-gauge steel deck and frame

Steel reinforcements run lengthwise under the deck

Heavy-duty

industrial casters

Shown with Akro-Mils SWC's and Akro-Grids. See pages 21and 23.

Standard Cross Bar Handle

24" x36" 24"x60" 24" x48" 27" x54"

Specify size when ordering.

30" x 48" 30" x 60" 30" x 72"

36" x 60" 36" x 72"

Platform Trucks - Heavy Duty Steel


Model		Caster	Caster	Size	Weight	Deck Height
No.	Description	Type*	Inches	mm	Capacity	Inches	mm
R2108FPB2436	Steel Platform	Full Pnuematic	8	203	1180 lbs.	11V2	292
R2125MRB2436	Steel Platform	Mold-On Rubber	5	127	1500 lbs.	8	203
R2168MRB2436	Steel Platform	Mold-On Rubber	8	203	2000 lbs.	11	279
*Other casters available.	See page 43 for full description of casters and wheels. *_1_*

Platform Trucks Super-Heavy Duty

Super-heavy duty wood deck steel frame trucks. Steel C-channel underdeck reinforcements. Capacity - 1,200 to 4,000 lbs. depending on caster type. Contact your Akro-Mils distributor to order.

Options & Accessories*:

Floor Locks Wheel Locks Corner Bumpers Continuous Bumpers

See pages 24 for more details.

Standard cross bar handle

24" x36" 30"x60"

27" x 54" 36" x 72"

Specify size when ordering.

SUPER HEAVY-DUTY DECK SIZES

Platform Trucks - Super Heavy Duty


Model		Caster	Caster Size		Weight	Deck Height
No.	Description	Type*	Inches	mm	Capacity	Inches mm
R2178MRB	Wood Deck Steel Underdeck Reinforcement	Mold-On Rubber	8	203	2000 lbs.	11V2 292
R219885MRB	Wood Deck Steel Underdeck Reinforcement	Mold-On Rubber	5	127	1400 lbs.	8 203
R221812MRB	Wood Deck Steel Underdeck Reinforcement	Mold-On Rubber	12	305	3300 lbs.	15 381
R2258516MRB	Wood Deck Steel Underdeck Reinforcement	Mold-On Rubber	16	407	4000 lbs.	19V2 495

*See page 43 for full description of casters and wheels.

Custom engineered products can be designed and produced to fit your application or specifications. For more information call your Akro-Mils distributor.
