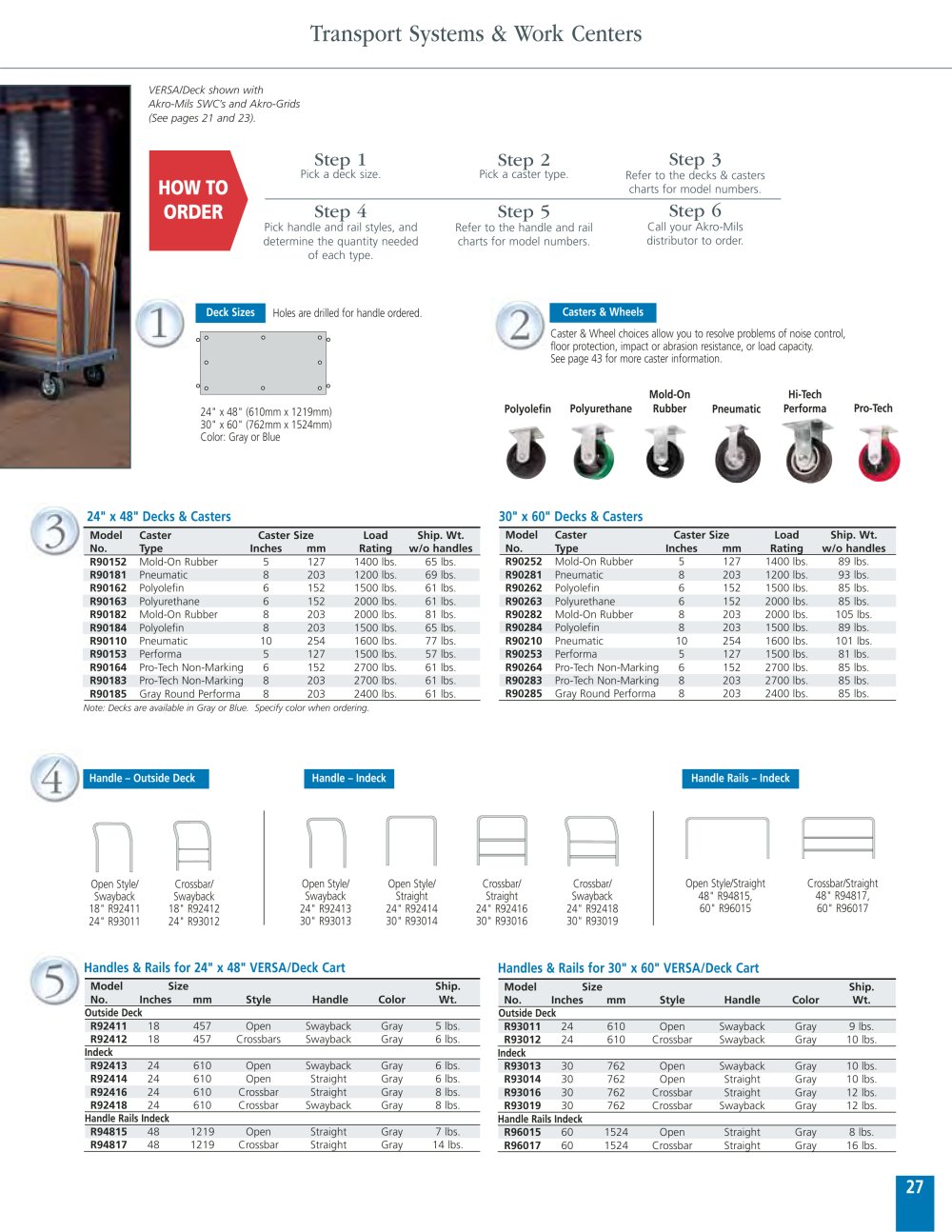

Transport Systems & Work Centers

VERSA/Deck shown with Akro-Mils SWC’s and Akro-Grids (See pages 21 and 23).

Pick a decksize.

Step 1

Pick a caster type.

Step 2

Refer to the decks & casterscharts for model numbers.

Step 3

HOWTOORDER

Refer to the handle and railcharts for model numbers.

Step 5

Call your Akro-Milsdistributor to order.

Step 6

Pick handle and rail styles, anddetermine the quantity neededof each type.

Step 4

Deck Sizes Holes are drilled for handle ordered. Casters & Wheels Caster & Wheel choices allow you to resolve problems of noise control,floor protection, impact or abrasion resistance, or load capacity. See page 43 for more caster information.24" x 48" (610mm x 1219mm)30" x 60" (762mm x 1524mm) Color: Gray or Blue PolyolefinMold-OnRubberPneumaticHi-Tech Performa Pro-Tech Polyurethane

24" x 48" Decks & Casters 30" x 60" Decks & Casters

Model CasterCaster SizeLoad Ship. Wt. Model CasterCaster SizeLoad Ship. Wt. No.TypeInchesmmRatingw/o handlesR90152 No.TypeInchesmmRatingw/o handlesR90252 Mold-On Rubber5127 1400 lbs.65 lbs. Mold-On Rubber51271400 lbs.89 lbs. R90181 Pneumatic8 2031200 lbs.69 lbs. R90281 Pneumatic8 2031200 lbs.93 lbs. R90162 Polyolefin6 1521500 lbs.61 lbs. R90262 Polyolefin6 1521500 lbs.85 lbs. R90163 Polyurethane6 1522000 lbs.61 lbs. R90263 Polyurethane6 1522000 lbs.85 lbs. R90182 Mold-On Rubber82032000 lbs.81 lbs. R90282 Mold-On Rubber8 2032000 lbs.105 lbs. R90184 Polyolefin8 2031500 lbs.65 lbs. R90284 Polyolefin8 203 1500 lbs.89 lbs. R90110 Pneumatic10 2541600 lbs.77 lbs. R90210 Pneumatic10 2541600 lbs.101 lbs. R90153 Performa51271500 lbs.57 lbs. R90253 Performa5 1271500 lbs.81 lbs. R90164 Pro-Tech Non-Marking6 1522700 lbs.61 lbs. R90264 Pro-Tech Non-Marking6 1522700 lbs.85 lbs. R90183 Pro-Tech Non-Marking8 2032700 lbs.61 lbs. R90283 Pro-Tech Non-Marking8 2032700 lbs.85 lbs. R90185 Gray Round Performa8 2032400 lbs.61 lbs. R90285 Gray Round Performa8 203 2400 lbs.85 lbs.
Note: Decks are available in Gray or Blue. Specify color when ordering.

Handle – Outside Deck Handle – Indeck Handle Rails – Indeck Open Style/Swayback18" R9241124" R93011Crossbar/Swayback18" R92412 24" R93012Open Style/Swayback24" R92413 30" R93013Crossbar/Swayback24" R9241830" R93019Open Style/Straight24" R92414 30" R93014Crossbar/Straight48" R94817,60" R96017Open Style/Straight 48" R94815,60" R96015Crossbar/Straight24" R92416 30" R93016

Handles & Rails for 24" x 48" VERSA/Deck Cart Handles & Rails for 30" x 60" VERSA/Deck Cart

Model SizeShip. Model SizeShip. No.InchesmmStyleHandleColorWt. No.InchesmmStyleHandleColorWt. Outside Deck Outside Deck R92411 18457OpenSwaybackGray5 lbs. R93011 24610OpenSwaybackGray 9 lbs. R92412 18457CrossbarsSwaybackGray6 lbs. R93012 24610CrossbarSwaybackGray 10 lbs. Indeck Indeck R92413 24610OpenSwaybackGray6 lbs. R93013 30762OpenSwaybackGray10 lbs. R92414 24 610OpenStraightGray6 lbs. R93014 30 762OpenStraightGray10 lbs. R92416 24610CrossbarStraightGray8 lbs. R93016 30762CrossbarStraightGray12 lbs. R92418 24610CrossbarSwaybackGray8 lbs. R93019 30762CrossbarSwaybackGray12 lbs. Handle Rails Indeck Handle Rails Indeck R94815 481219OpenStraightGray7 lbs. R96015 601524OpenStraightGray 8 lbs. R94817 481219CrossbarStraightGray 14 lbs. R96017 601524CrossbarStraightGray16 lbs.

27
