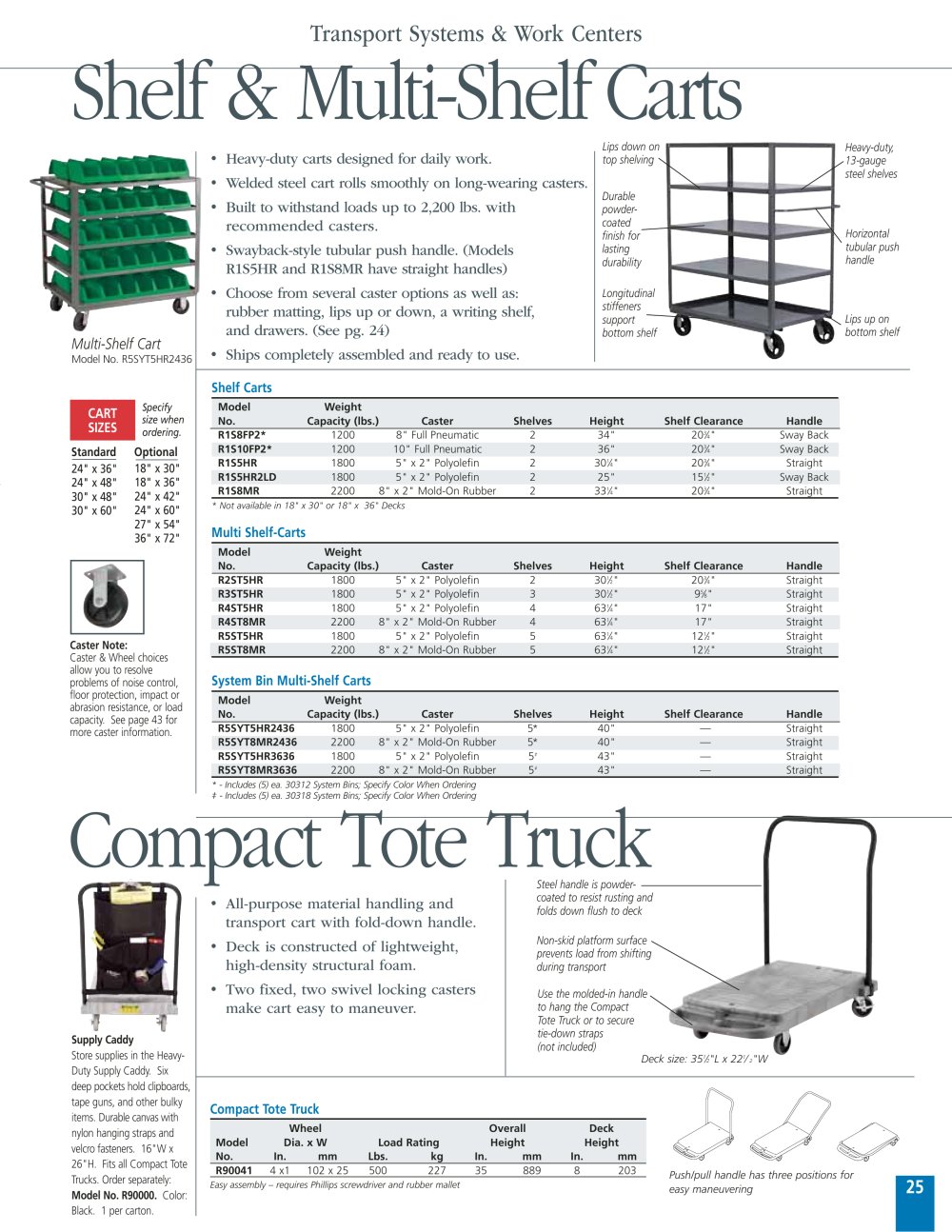

Transport Systems & Work Centers Shelf & Multi-ShelfCarts

•Heavy-duty carts designed for daily work.•Welded steel cart rolls smoothly on long-wearing casters. •Built to withstand loads up to 2,200 lbs. with recommended casters.

Horizontaltubular pushhandleLongitudinalstiffeners support bottom shelf Heavy-duty,13-gauge steel shelvesDurablepowder- coated finish forlastingdurabilityLips up onbottom shelf Lips down ontop shelving

•Swayback-style tubular push handle. (Models R1S5HR and R1S8MR have straight handles)•Choose from several caster options as well as: rubber matting, lips up or down, a writing shelf, and drawers. (See pg. 24)•Ships completely assembled and ready to use. Multi-Shelf Cart

Model No. R5SYT5HR2436

Shelf Carts CARTSIZES

Specifysize whenordering. ModelWeightNo.Capacity (lbs.)CasterShelvesHeightShelf ClearanceHandle R1S8FP2* 12008" Full Pneumatic234"20
3 �
4 "Sway Back

StandardOptional

R1S10FP2* 120010" Full Pneumatic236"20
3 �
4 "Sway Back
1 3

24" x 36"24" x 48" 30" x 48" 30" x 60" 18" x 30"18" x 36" 24" x 42" 24" x 60" 27" x 54" 36" x 72"

R1S5HR 18005" x 2" Polyolefin230 �
4 "20 �
4 "Straight R1S5HR2LD 18005" x 2" Polyolefin225"15
1 �
2 "Sway Back R1S8MR 22008" x 2" Mold-On Rubber233
1 �
4 "20
3 �
4 "Straight
* Not available in 18" x 30" or 18" x 36" Decks

Multi Shelf-Carts

ModelWeightNo.Capacity (lbs.)CasterShelvesHeightShelf ClearanceHandle R2ST5HR 18005" x 2" Polyolefin230
1 �
2 "20
3 �
4 "Straight R3ST5HR 18005" x 2" Polyolefin330
1 �
2 "9
5 �
8 "Straight R4ST5HR 18005" x 2" Polyolefin463
1 �
4 "17"Straight R4ST8MR 22008" x 2" Mold-On Rubber463
1 �
4 "17"Straight R5ST5HR 18005" x 2" Polyolefin563
1 �
4 "12
1 �
2 "Straight

Caster Note:

1 1

Caster & Wheel choices allow you to resolve problems of noise control, floor protection, impact orabrasion resistance, or loadcapacity. See page 43 for more caster information.

R5ST8MR 22008" x 2" Mold-On Rubber563 �
4 "12 �
2 "Straight

System Bin Multi-Shelf Carts

ModelWeightNo.Capacity (lbs.)CasterShelvesHeightShelf ClearanceHandle R5SYT5HR2436 18005" x 2" Polyolefin5*40"—Straight R5SYT8MR2436 22008" x 2" Mold-On Rubber5*40"—Straight R5SYT5HR3636 18005" x 2" Polyolefin5
‡ 43"—Straight R5SYT8MR3636 22008" x 2" Mold-On Rubber5
‡ 43"—Straight
* - Includes (5) ea. 30312 System Bins; Specify Color When Ordering ‡- Includes (5) ea. 30318 System Bins; Specify Color When Ordering

Compact Tote Truck

Steel handle is powder-coated to resist rusting andfolds down flush to deck

• All-purpose material handling andtransport cart with fold-down handle.• Deck is constructed of lightweight,high-density structural foam.• Two fixed, two swivel locking castersmake cart easy to maneuver.

Non-skid platform surfaceprevents load from shiftingduring transportUse the molded-in handleto hang the Compact Tote Truck or to secure tie-down straps (not included) Supply Caddy Store supplies in the Heavy- Duty Supply Caddy. Six deep pockets hold clipboards,tape guns, and other bulkyitems. Durable canvas withnylon hanging straps and velcrofasteners. 16"W x26"H. Fits all Compact ToteTrucks. Order separately:

Deck size: 35
1 �
2 "L x 22
1 �
2 "W

Model No. R90000. Color:Black. 1 per carton.

Compact Tote Truck

WheelOverall Deck ModelDia. x WLoad RatingHeightHeight No.In.mmLbs.kgIn.mmIn. mm R90041 4 x1102 x 25500227358898203 Push/pull handle has three positions foreasy maneuvering
Easy assembly – requires Phillips screwdriver and rubber mallet
