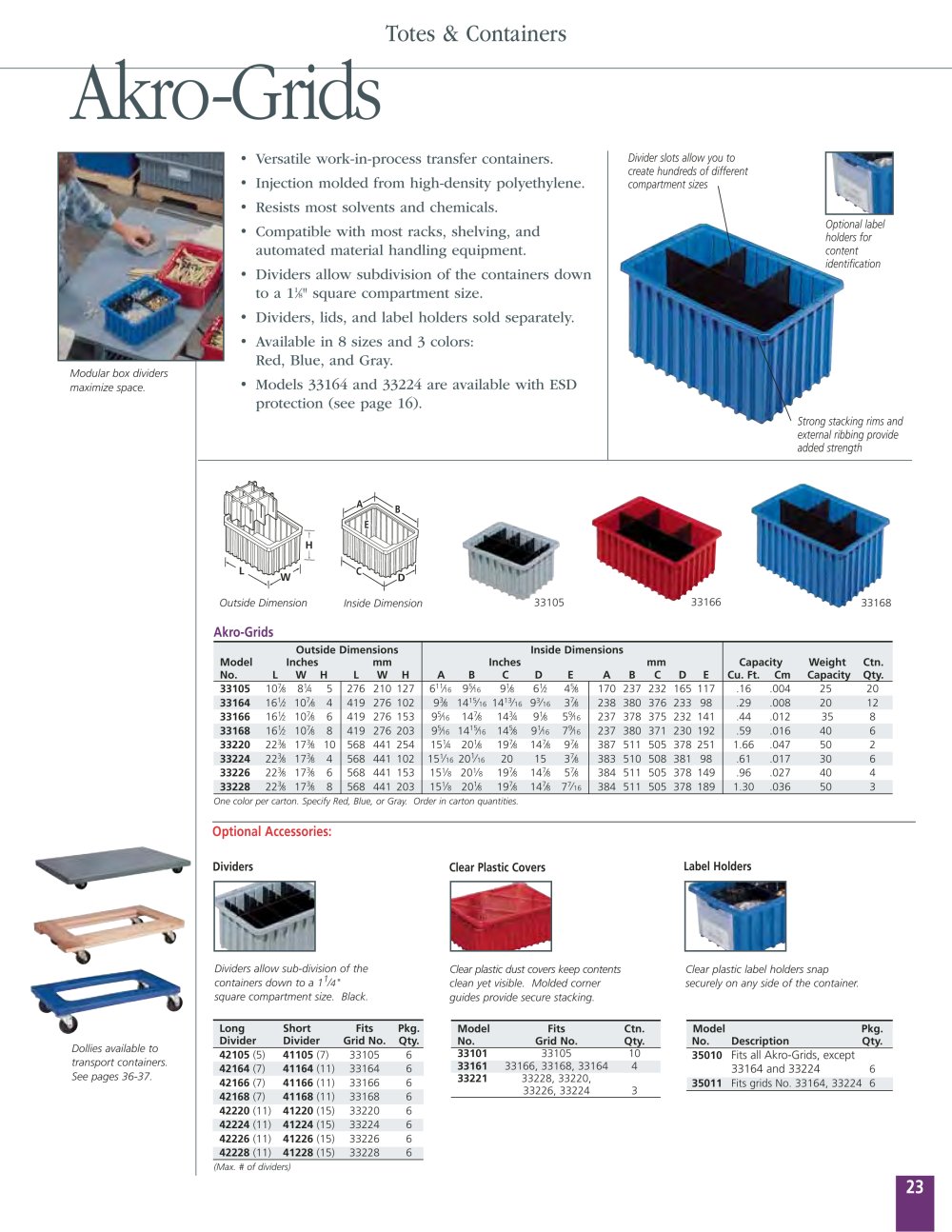

Totes & Containers

Akro-Grids

Versatile work-in-process transfer containers.

Injection molded from high-density polyethylene.

Resists most solvents and chemicals.

Compatible with most racks, shelving, and automated material handling equipment.

Dividers allow subdivision of the containers down to a 1/8" square compartment size.

Dividers, lids, and label holders sold separately.

Available in 8 sizes and 3 colors: Red, Blue, and Gray.

Models 33164 and 33224 are available with ESD protection (see page 16).

Divider slots allow you to create hundreds of different compartment sizes

Optional label holders for content identification

Modular box dividers maximize space.

Strong stacking rims and external ribbing provide added strength

33166

33105

Outside Dimension

Akro-Grids

33168

Inside Dimension


Model No.	Outside Dimensions Inches mm L W H L W H						A	B	Inches C	Inside Dimensions DE AB				mm C	D	E	Capacity Cu. Ft. Cm		Weight Capacity	Ctn. Qty.
33105	10%	8¹/4	5	276	210	127	6"/i6	9⁵/16	9%	6%	4%	170	237	232	165	117	.16	.004	25	20
33164	16%	10⁷/&	4	419	276	102	9%	14¹⁵/16	14¹³/16	9³/16	3%	238	380	376	233	98	.29	.008	20	12
33166	1612	10⁷/8	6	419	276	153	9⁵/6	14%	14³/4	9%	5⁹/16	237	378	375	232	141	.44	.012	35	8
33168	1612	10⁷/8	8	419	276	203	9⁵/6	14¹⁵/6	14⁵⁵8		7316	237	380	371	230	192	.59	.016	40	6
33220	22%	17%	10	568	441	254	1514	2018	19⁷⁷8	14⁷⁷8	9⁷⁷8	387	511	505	378	251	1.66	.047	50	2
33224	2236	17%	4	568	441	102	15V16 20V16		20	15	3⁷⁷8	383	510	508	381	98	.61	.017	30	6
33226	22%	17%	6	568	441	153	15V8	20V8	19⁷⁷8	14%	5%	384	511	505	378	149	.96	.027	40	4
33228	2236	17%	8	568	441	203	15V8	2018	19%	14%	7⁷/16	384	511	505	378	189	1.30	.036	50	3

One color per carton. Specify Red, Blue, or Gray. Order in carton quantities.

Optional Accessor

Label Holders

Dividers

Clear Plastic Covers

Dividers allow sub-division of the containers down to a 1¹/4" square compartment size. Black.

Clear plastic dust covers keep contents clean yet visible. Molded corner

guides provide secure stacking.

Clear plastic label holders snap securely on any side of the container.

Model

No.

Pkg.

Qty.

Description

Dollies available to transport containers. See pages 36-37.

35010 Fits all Akro-Grids, except 33164 and 33224 6

35011 Fits grids No. 33164, 33224 6

(Max. # of dividers)
