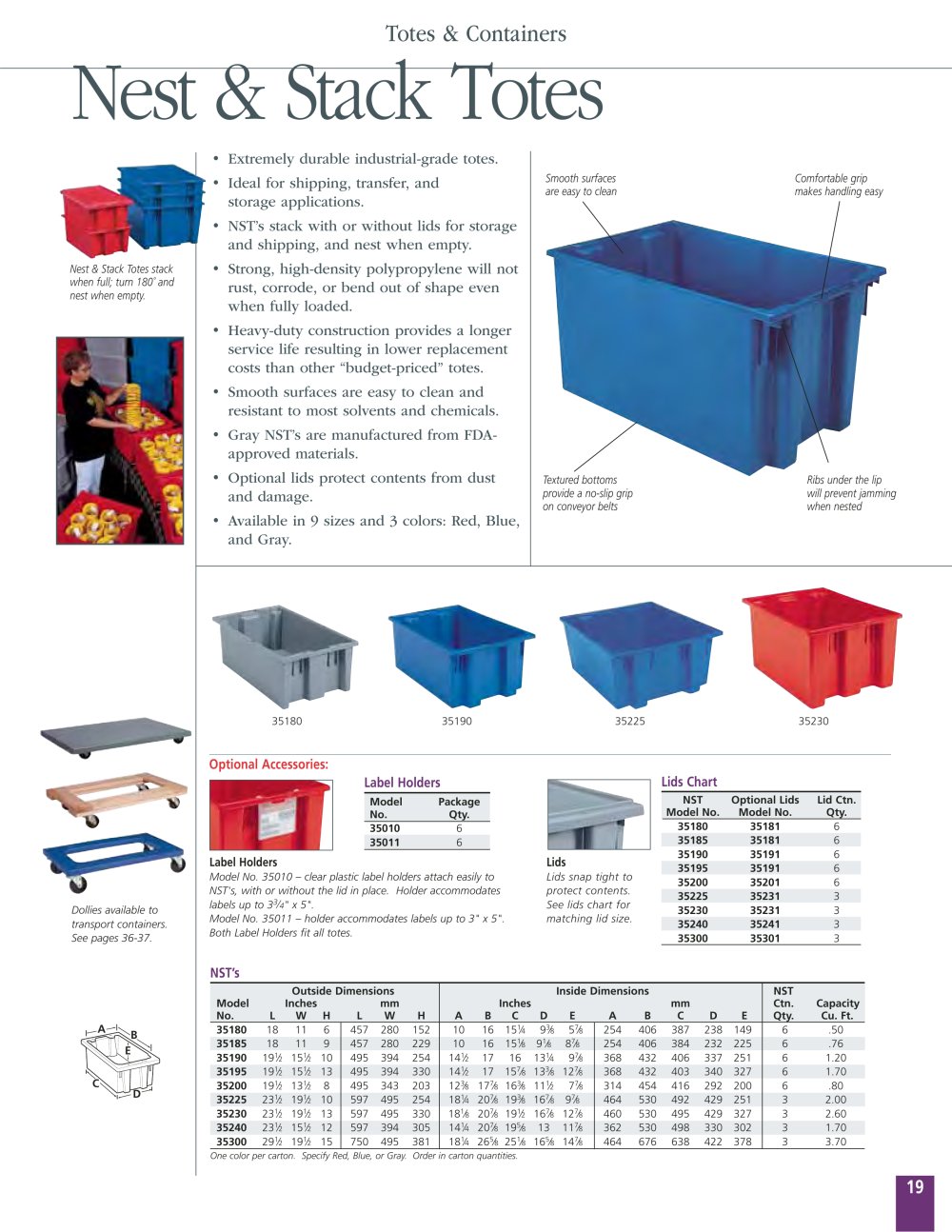

Totes & Containers

Nest & Stack Totes

Extremely durable industrial-grade totes.

Ideal for shipping, transfer, and storage applications.

NST's stack with or without lids for storage and shipping, and nest when empty.

Strong, high-density polypropylene will not rust, corrode, or bend out of shape even when fully loaded.

Heavy-duty construction provides a longer service life resulting in lower replacement costs than other "budget-priced" totes.

Smooth surfaces are easy to clean and resistant to most solvents and chemicals.

Gray NST's are manufactured from FDA-approved materials.

Optional lids protect contents from dust and damage.

Available in 9 sizes and 3 colors: Red, Blue, and Gray.

Smooth are easy

surfaces to clean

Comfortable grip makes handling easy

Nest & Stack Totes stack when full; turn 180" and nest when empty.

Textured bottoms provide a no-slip grip on conveyor belts

Ribs under the lip will prevent jamming when nested

1 1

35180

35190

35225

35230

Optional Accessories:

Lids Chart

Label Holders


NST	Optional Lids	Lid Ctn.
Model No.	Model No.	Qty.
35180	35181	6
35185	35181	6
35190	35191	6
35195	35191	6
35200	35201	6
35225	35231	3
35230	35231	3
35240	35241	3
35300	35301	3


	Model	Package
	No.	Qty.
	35010	6
	35011	6

Label Holders

Model No. 35010 - clear plastic label holders attach easily to NST's, with or without the lid in place. Holder accommodates labels up to 3³h" x 5".

Model No. 35011 - holder accommodates labels up to 3" x 5". Both Label Holders fit all totes.

Lids

Lids snap tight to protect contents. See lids chart for matching lid size.

Dollies available to transport containers. See pages 36-37.

NST's


		Outside Dimensions									Inside Dimensions						NST
Model		Inches			mm			Inches						mm			Ctn.	Capacity
No.	L	W	H	L	W	H	A	B	C	D	E	A	B	C	D	E	Qty.	Cu. Ft.
35180	18	11	6	457	280	152	10	16	15V4	9%	5%	254	406	387	238	149	6	.50
35185	18	11	9	457	280	229	10	16	1518	9%	8%	254	406	384	232	225	6	.76
35190	1912	1512	10	495	394	254	1412	17	16	13V4	9%	368	432	406	337	251	6	1.20
35195	1912	1512	13	495	394	330	1412	17	15%	13%	12%	368	432	403	340	327	6	1.70
35200	1912	13!2	8	495	343	203	12³8	17%	16%	11Í2	7%	314	454	416	292	200	6	.80
35225	2312	19V2	10	597	495	254	1814	20%	19%	16%	9%	464	530	492	429	251	3	2.00
35230	2312	19V2	13	597	495	330	18%	20%	19%	16%	12%	460	530	495	429	327	3	2.60
35240	2312	15!2	12	597	394	305	1414	20%	19%	13	11%	362	530	498	330	302	3	1.70
35300	2912	19V2	15	750	495	381	1814	26%	25%	16%	14%	464	676	638	422	378	3	3.70

One color per carton. Specify Red, Blue, or Gray. Order in carton quantities.
