Technische Änderungen vorbehalten / technical changes kept in reserve

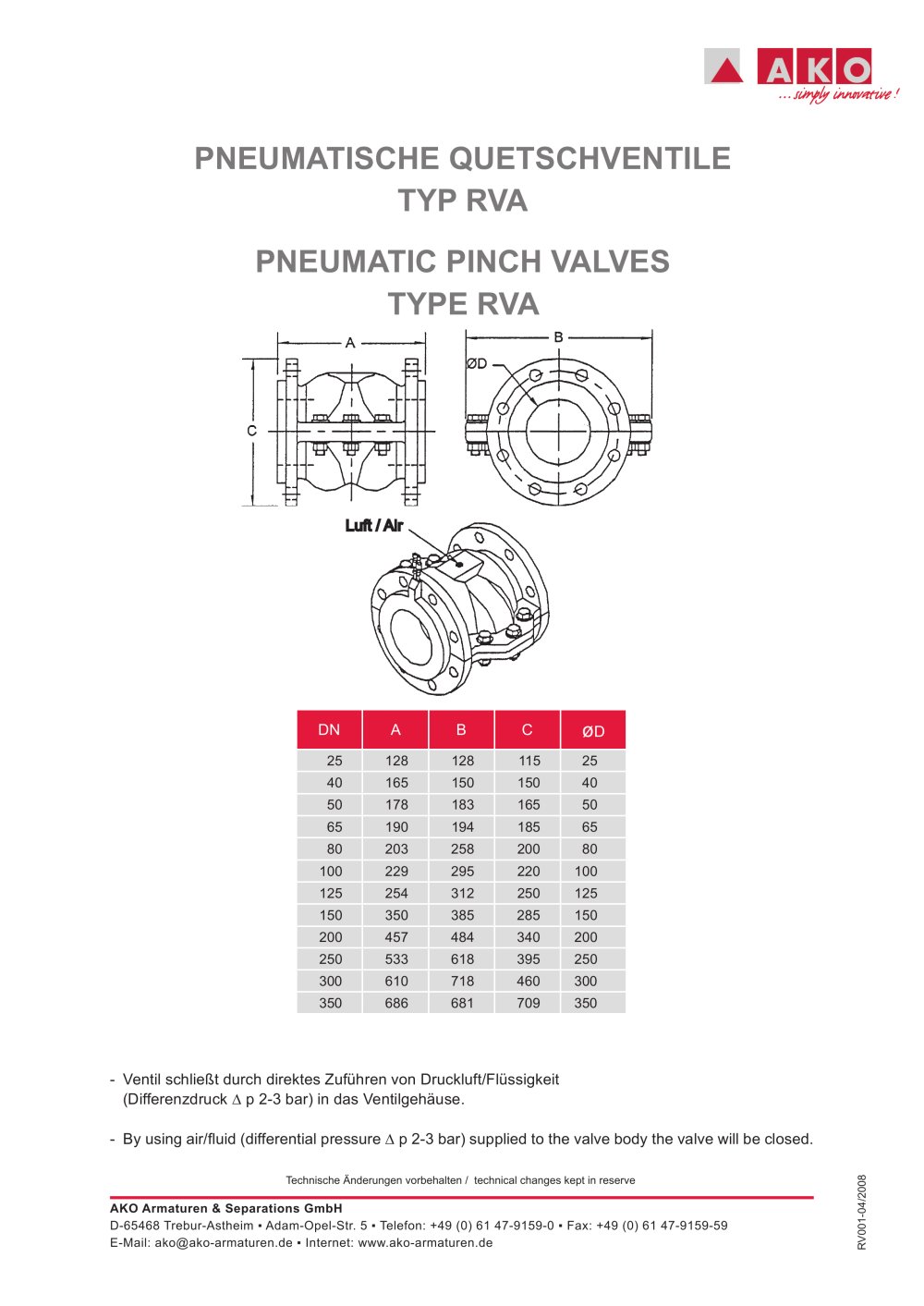

PNEUMATISCHE QUETSCHVENTILE
TYP RVA
PNEUMATIC PINCH VALVES
TYPE RVA
-- Ventil schließt durch direktes Zuführen von Druckluft/Flüssigkeit
(Differenzdruck Ä p 2-3 bar) in das Ventilgehäuse.
-- By using air/fluid (differential pressure Ä p 2-3 bar) supplied to the valve body the valve will be closed.
DN A B C øD
25 128 128 115 25
40 165 150 150 40
50 178 183 165 50
65 190 194 185 65
80 203 258 200 80
100 229 295 220 100
125 254 312 250 125
150 350 385 285 150
200 457 484 340 200
250 533 618 395 250
300 610 718 460 300
350 686 681 709 350
RV001-
04/2008
AKO Armaturen & Separations GmbH
D-65468 Trebur-Astheim Adam-Opel-Str. 5 Telefon: +49 (0) 61 47-9159-0 Fax: +49 (0) 61 47-9159-59
E-Mail: ako@ako-armaturen.de Internet: www.ako-armaturen.de
