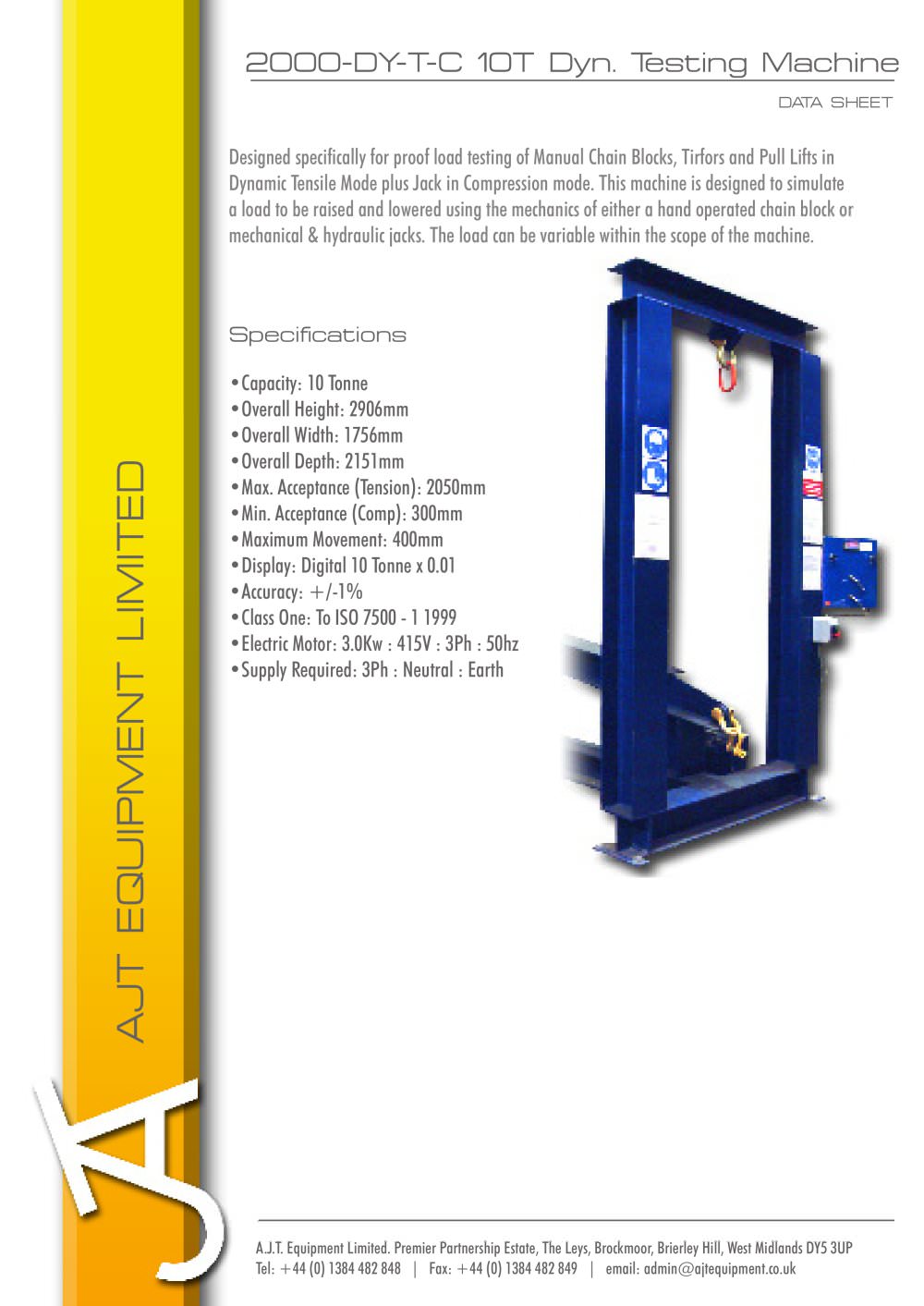

2DDD-DY-T-C 1DT Dyn. Testing machine

□ATA SHEET

Designed specifically for proof load testing of Manual Chain Blocks, Tirfors and Pull Lifts in Dynamic Tensile Mode plus Jack in Compression mode. This machine is designed to simulate a load to be raised and lowered using the mechanics of either a hand operated chain block or mechanical & hydraulic jacks. The load can be variable within the scope of the machine.

Specifications

•Capacity: 10 Tonne •Overall Height: 2906mm •Overall Width: 1756mm •Overall Depth: 2151mm •Max. Acceptance (Tension): 2050mm •Min. Acceptance (Comp): 300mm •Maximum Movement: 400mm

•Display: Digital 10 Tonne x 0.01

•Accuracy: +/-1% •Class One: To ISO 7500 - 1 1999 •Electric motor: 3.0Kw : 415V : 3Ph : 50hz •Supply Required: 3Ph : Neutral : Earth

A.J.T. Equipment Limited. Premier Partnership Estate, The Leys, Brockmoor, Brierley Hill, West Midlands DY5 3UP Tel: +44 (0) 1384 482 848 | Fax: +44 (0) 1384 482 849 | email: admin@ajtequipment.co.uk
