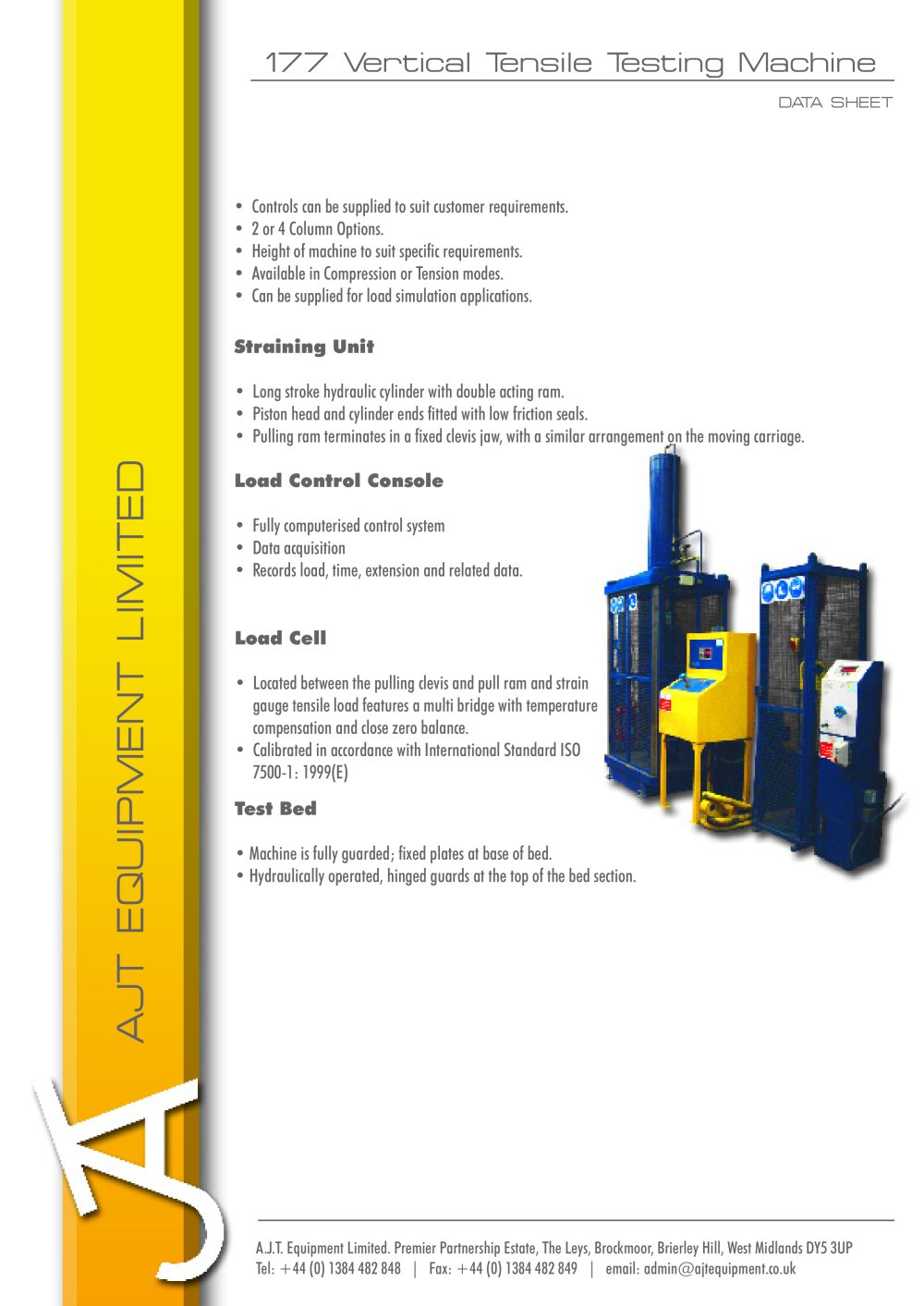

| | | □ATA SHEET | | |
| | | |
| | | Controls can be supplied to suit customer requirements. 2 or 4 Column Options. Height of machine to suit specific requirements. Available in Compression or Tension modes. Can be supplied for load simulation applications. | | |
| | | |
| | | Straining Unit • Piston head and cylinder ends fitted with low friction seals. • Pulling ram terminates in a fixed clevis jaw, with a similar arrangement on the moving carriage. | | |
| | | |
| | | Load Control Console • Fully computerised control system • Records load, time, extension and related data. | | |
| | | |
| | | • Located between the pulling clevis and pull ram and strain gauge tensile load features a multi industrial bridge with temperature compensation and close zero balance. • Calibrated in accordance with International Standard ISO 7500-1: 1999(E) | | |
| | | |
| | | • Machine is fully guarded; fixed plates at base of bed. • Hydraulically operated, hinged guards at the top of the bed section. | | |
| | | |
| | | A.J.T. Equipment Limited. Premier Partnership Estate, The Leys, Brockmoor, Brierley Hill, West Midlands DY5 3UP Tel: +44 (0) 1384 482 848 | Fax: +44 (0) 1384 482 849 | email: admin@ajtequipment.co.uk | | |
| | | |
| | | | | | | | | | | | | | | | | |
