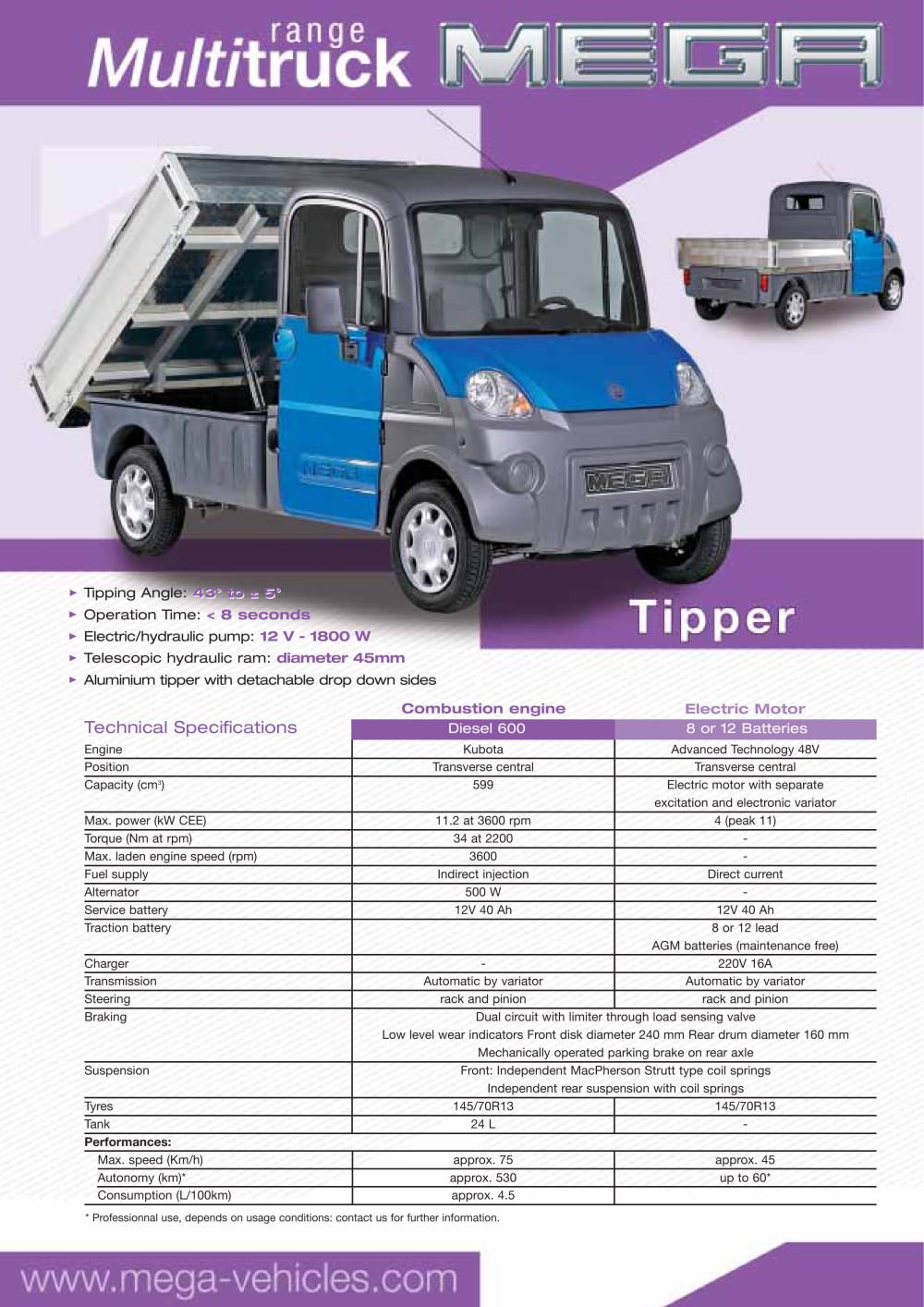

Tipper - AIXAM MEGA -- www.mega-vehicles.com - (Version JPG) - PDF Catalogue | Technical Documentation

► Telescopic hydraulic ram: diameter 45mm

► Aluminium tipper with detachable drop down sides

Combustion engine Electric Motor


Technical Specifications	Diesel 600	8 or 12 Batteries 1
Engine	Kubota	Advanced Technology 48V
Position	Transverse central	Transverse central
Capacity (cm³)	599	Electric motor with separate excitation and electronic variator
Max. power (kW CEE)	11.2 at 3600 rpm	4 (peak 11)
Torque (Nm at rpm)	34 at 2200	-
Max. laden engine speed (rpm)	3600	-
Fuel supply	Indirect injection	Direct current
Alternator	500 W	-
Service battery	12V 40 Ah	12V 40 Ah
Traction battery		8 or 12 lead AGM batteries (maintenance free)
Charger	-	220V 16A
Transmission	Automatic by variator	Automatic by variator
Steering	rack and pinion	rack and pinion
Braking	Dual circuit with limiter through load sensing valve Low level wear indicators Front disk diameter 240 mm Rear drum diameter 160 mm Mechanically operated parking brake on rear axle
Suspension	Front: Independent MacPherson Strutt type coil springs Independent rear suspension with coil springs
Tyres	145/70R13	145/70R13
Tank	24 L	-
Performances:
Max. speed (Km/h)	approx. 75	approx. 45
Autonomy (km)*	approx. 530	up to 60*
Consumption (Ly100km)	approx. 4.5

* Professionnal use, depends on usage conditions: contact us for further information.
