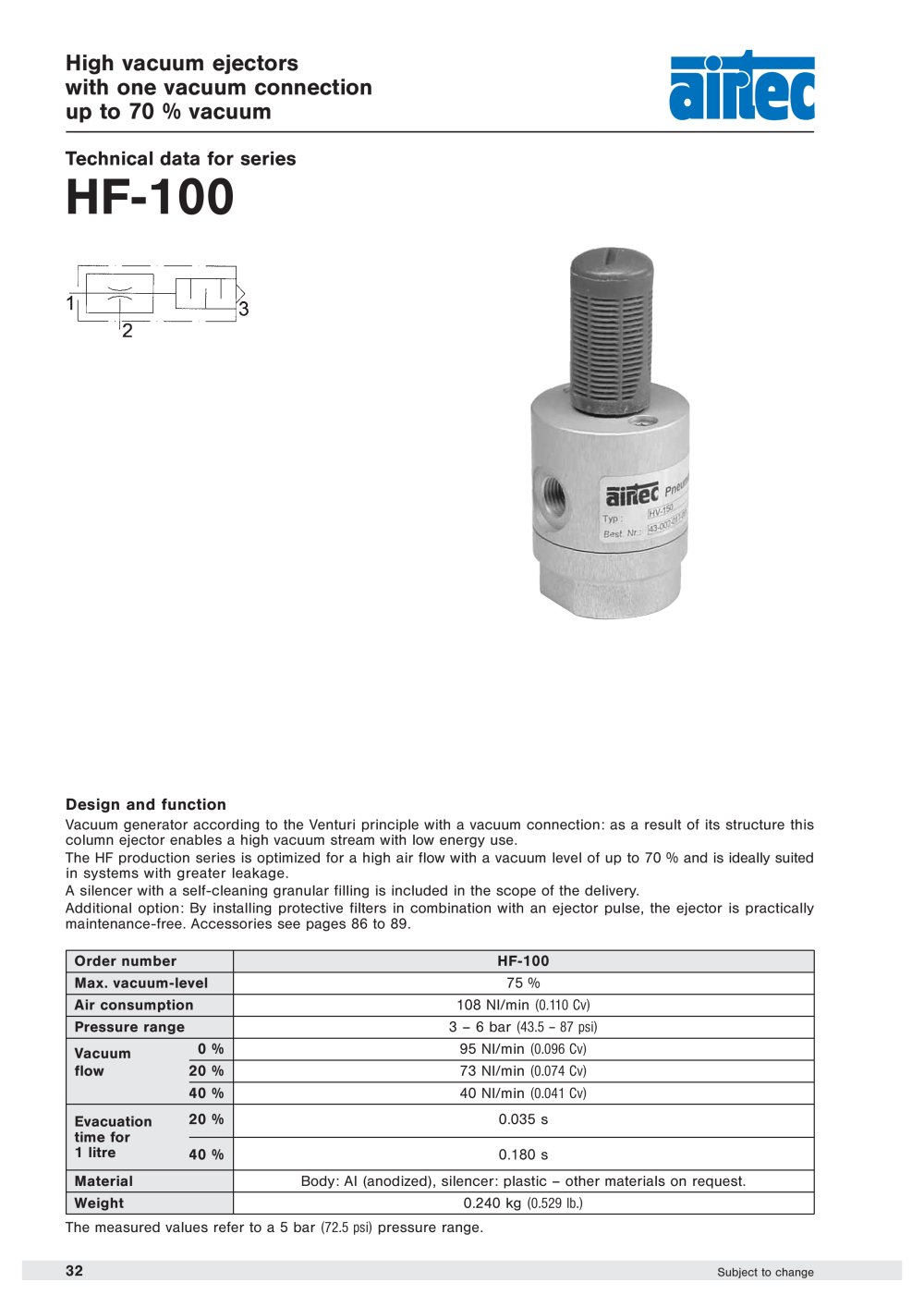

High vacuum ejectorswith one vacuum connection up to 70 % vacuum

Technical data for series

HF-100

Design and function

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HF production series is optimized for a high air flow with a vacuum level of up to 70 % and is ideally suitedin systems with greater leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order numberHF-100Max. vacuum-level 75 % Air consumption 108 Nl/min (0.110 Cv) Pressure range 3 – 6 bar (43.5 – 87 psi) Vacuum0 % 95 Nl/min (0.096 Cv) flow20 % 73 Nl/min (0.074 Cv) 40 % 40 Nl/min (0.041 Cv) Evacuationtime for 1 litre 20 % 0.035 s 40 % 0.180 s Material Body: Al (anodized), silencer: plastic – other materials on request. Weight 0.240 kg (0.529 lb.) The measured values refer to a 5 bar (72.5 psi) pressure range. 32
Subject to change
