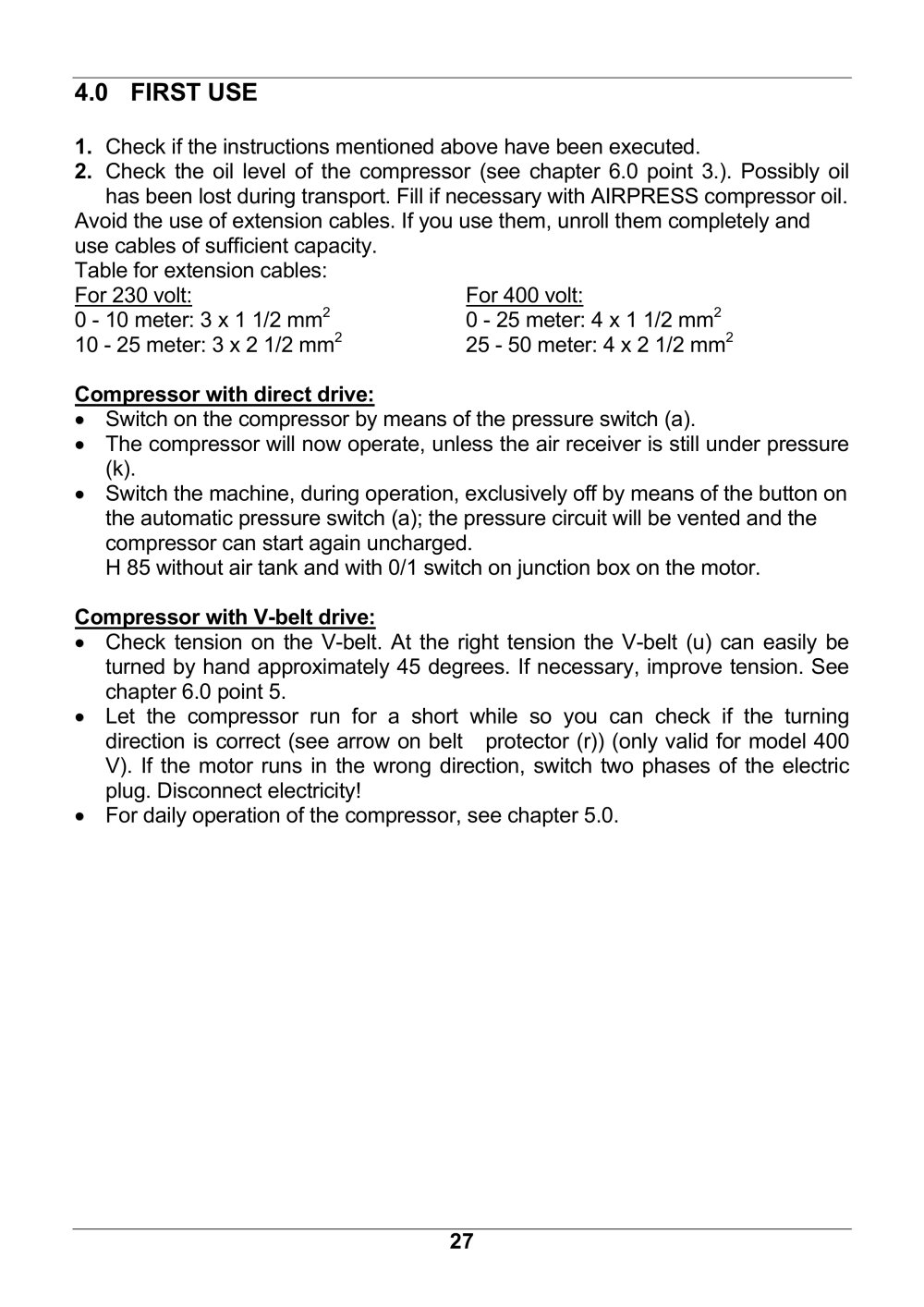

4.0 FIRST USE

1. Check if the instructions mentioned above have been executed. 2. Check the oil level of the compressor (see chapter 6.0 point 3.). Possibly oil has been lost during transport. Fill if necessary with AIRPRESS compressor oil.Avoid the use of extension cables. If you use them, unroll them completely and use cables of sufficient capacity. Table for extension cables: For 230 volt: For 400 volt: 0 - 10 meter: 3 x 1 1/2 mm
2 2 0 - 25 meter: 4 x 1 1/2 mm
2 10 - 25 meter: 3 x 2 1/2 mm 25 - 50 meter: 4 x 2 1/2 mm
2 Compressor with direct drive: Switch on the compressor by means of the pressure switch (a). The compressor will now operate, unless the air receiver is still under pressure (k). Switch the machine, during operation, exclusively off by means of the button on the automatic pressure switch (a); the pressure circuit will be vented and the compressor can start again uncharged. H 85 without air tank and with 0/1 switch on junction box on the motor. Compressor with V-belt drive: Check tension on the V-belt. At the right tension the V-belt (u) can easily be turned by hand approximately 45 degrees. If necessary, improve tension. See chapter 6.0 point 5. Let the compressor run for a short while so you can check if the turning direction is correct (see arrow on belt protector (r)) (only valid for model 400 V). If the motor runs in the wrong direction, switch two phases of the electric plug. Disconnect electricity! For daily operation of the compressor, see chapter 5.0. 27
