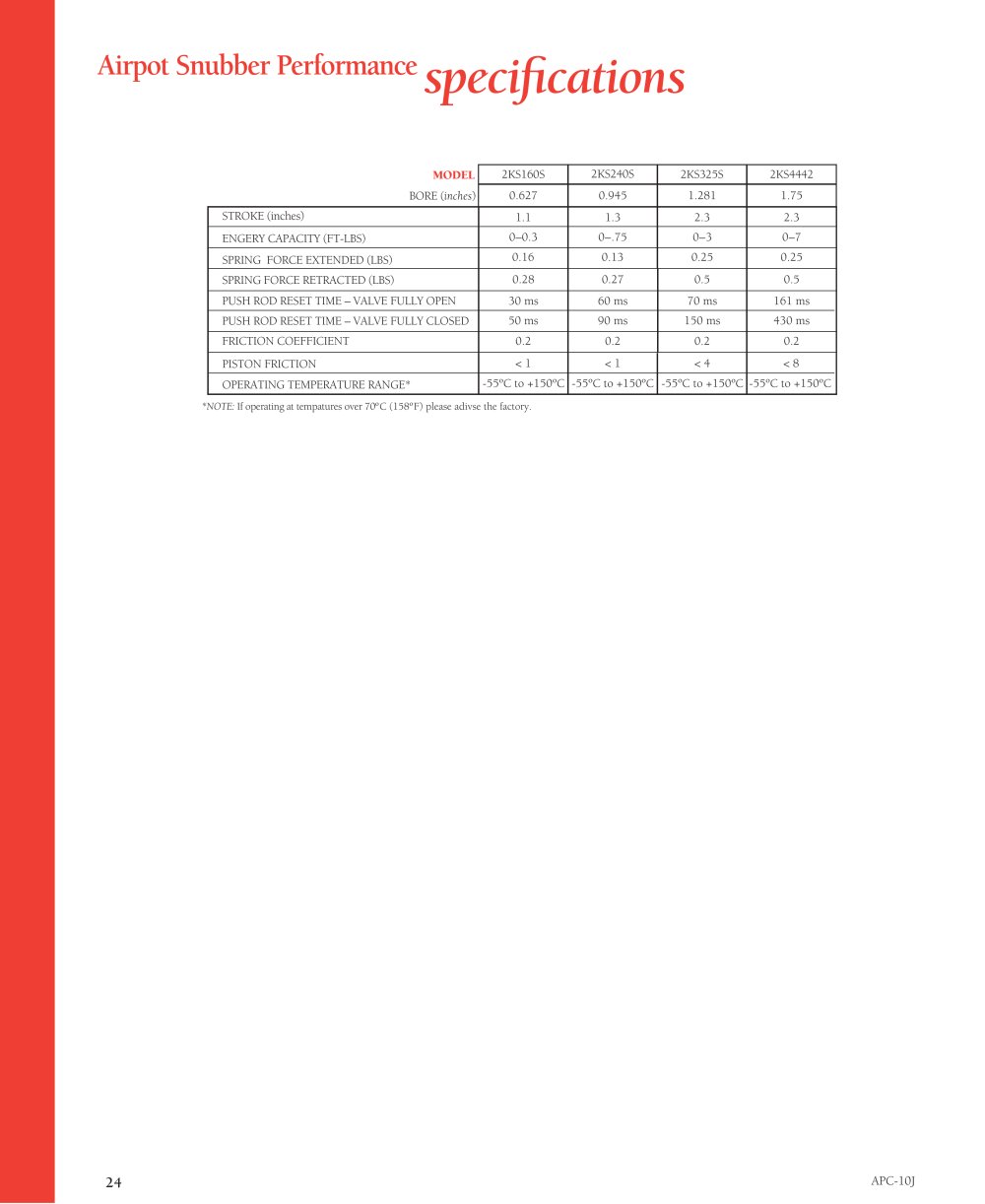

Airpot Snubber Performance
specifications
MODEL
BORE (inches)
2KS160S
2KS240S
2KS325S
2KS4442
0.627
0.945
1.281
1.75
STROKE (inches)
1.1
1.3
2.3
2.3
ENGERY CAPACITY (FT-LBS)
0-0.3
0-.75
0-3
0-7
SPRING FORCE EXTENDED (LBS)
0.16
0.13
0.25
0.25
SPRING FORCE RETRACTED (LBS)
0.28
0.27
0.5
0.5
PUSH ROD RESET TIME - VALVE FULLY OPEN
30 ms
60 ms
70 ms
161 ms
PUSH ROD RESET TIME - VALVE FULLY CLOSED
50 ms
90 ms
150 ms
430 ms
FRICTION COEFFICIENT
0.2
0.2
0.2
0.2
PISTON FRICTION
< 1
< 1
< 4
< 8
OPERATING TEMPERATURE RANGE*
-55°C to +150°C
-55°C to +150°C
-55°C to +150°C
-55°C to +150°C
*NOTE: If operating at tempatures over 70° C (158° F) please adivse the factory.
APC-10J
24
