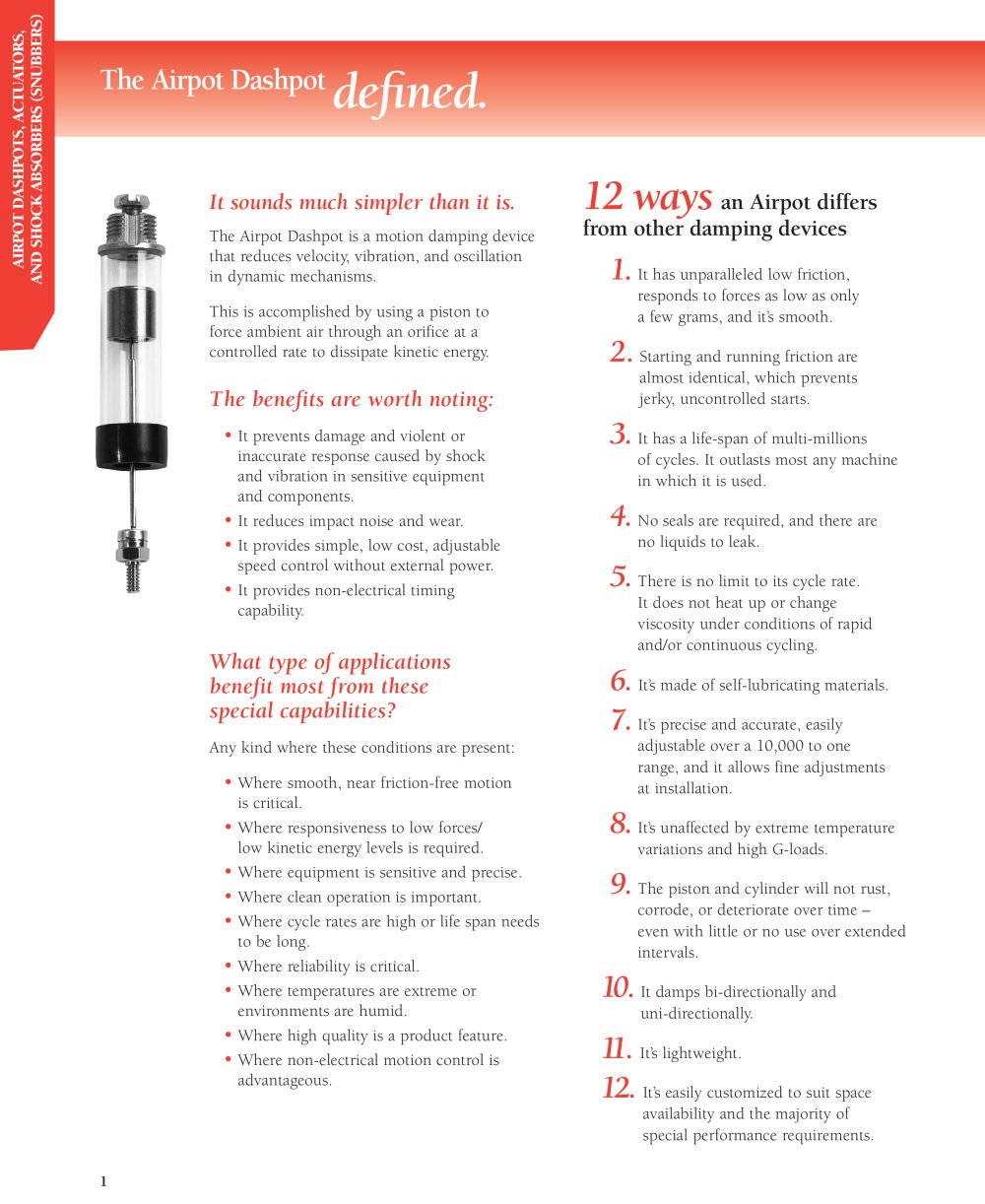

The Airpot Dashpot

The Complete Book of Airpot - 11558 defined.

It sounds much simpler than it is.

12 ways

an Airpot differs from other damping devices

The Airpot Dashpot is a motion damping devicethat reduces velocity, vibration, and oscillation in dynamic mechanisms. This is accomplished by using a piston to force ambient air through an orifice at a controlled rate to dissipate kinetic energy.
AIRPOT DASHPOTS, ACTUATORS, AND SHOCK ABSORBERS (SNUBBERS)

1.

It has unparalleled low friction,responds to forces as low as only a few grams, and it’s smooth.

2.

Starting and running friction are almost identical, which prevents jerky, uncontrolled starts.

The benefits are worth noting:

•

It prevents damage and violent or inaccurate response caused by shock and vibration in sensitive equipment and components.

3.

It has a life-span of multi-millions of cycles. It outlasts most any machine in which it is used.

•

It reduces impact noise and wear.

4.

No seals are required, and there areno liquids to leak.

•

It provides simple, low cost, adjustable speed control without external power.

•

It provides non-electrical timing capability.

5.

There is no limit to its cycle rate. It does not heat up or change viscosity under conditions of rapid and/or continuous cycling.

What type of applications benefit most from these special capabilities?

6.

It’s made of self-lubricating materials. It’s precise and accurate, easily adjustable over a 10,000 to one range, and it allows fine adjustments at installation. Any kind where these conditions are present:

7.

•

Where smooth, near friction-free motion is critical.

•

Where responsiveness to low forces/ low kinetic energy levels is required.

8.

It’s unaffected by extreme temperature variations and high G-loads.

•

Where equipment is sensitive and precise.

•

Where clean operation is important.

9.

The piston and cylinder will not rust, corrode, or deteriorate over time – even with little or no use over extended intervals.

•

Where cycle rates are high or life span needs to be long.

•

Where reliability is critical.

•

Where temperatures are extreme or environments are humid.

10.

It damps bi-directionally and uni-directionally.

•

Where high quality is a product feature.

•

Where non-electrical motion control is advantageous.

11.

It’s lightweight.

12.

It’s easily customized to suit space availability and the majority of special performance requirements.
