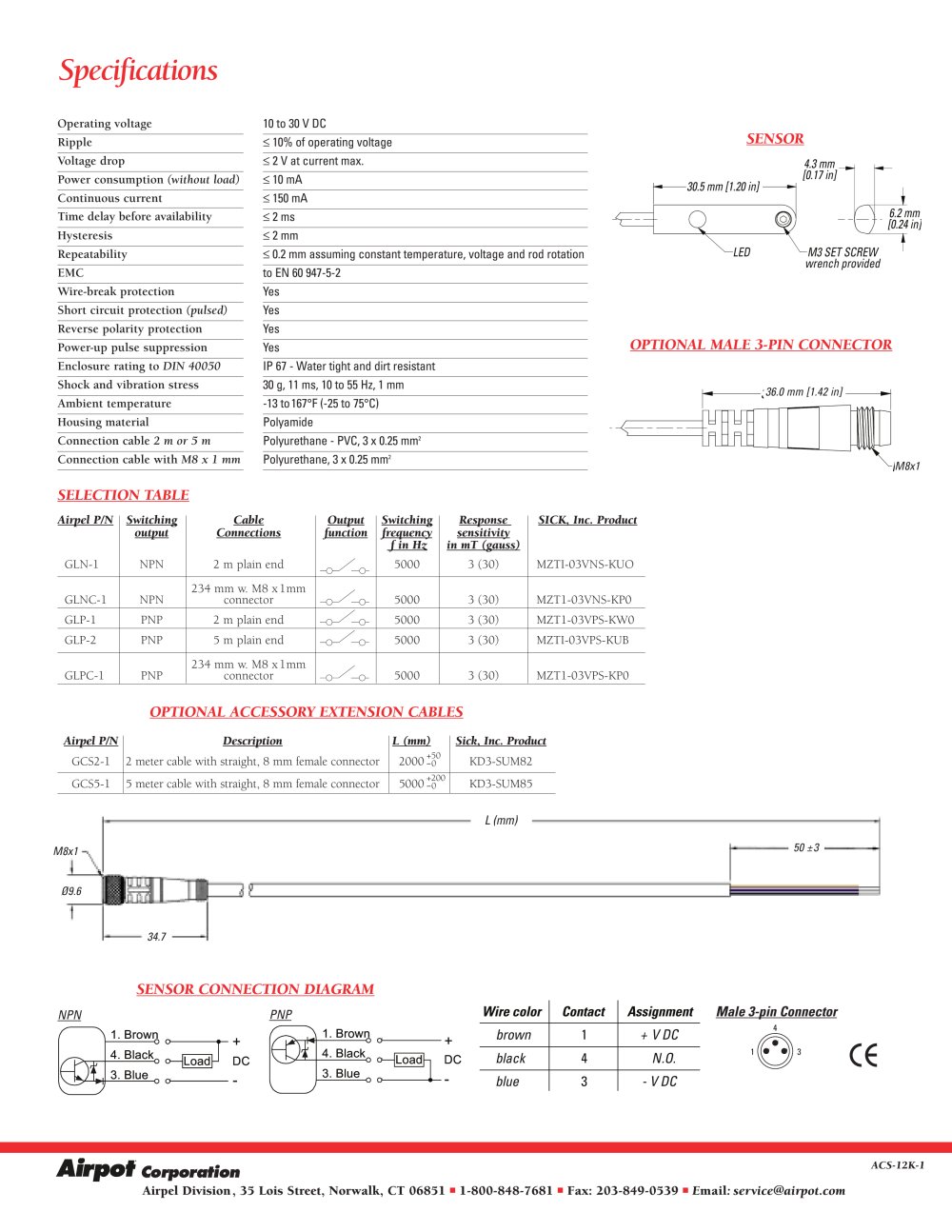

Specifications

Operating voltage 10 to 30 V DC Ripple ≤ 10% of operating voltage

SENSOR

Voltage drop ≤ 2 V at current max. Power consumption (without load) ≤ 10 mA
30.5 mm [1.20 in]LED4.3 mm[0.17 in]M3 SET SCREWwrench provided6.2 mm[0.24 in] Continuous current ≤ 150 mA Time delay before availability ≤ 2 ms Hysteresis ≤ 2 mm Repeatability ≤ 0.2 mm assuming constant temperature, voltage and rod rotation EMC to EN 60 947-5-2 Wire-break protection Yes Short circuit protection (pulsed) Yes Reverse polarity protection Yes Power-up pulse suppression Yes

OPTIONAL MALE 3-PIN CONNECTOR

Enclosure rating to DIN 40050 IP 67 - Water tight and dirt resistant Shock and vibration stress 30 g, 11 ms, 10 to 55 Hz, 1 mm
36.0 mm [1.42 in] Ambient temperature -13 to167°F (-25 to 75°C)

36.0 mm [1.42 in]M8x1

Housing material Polyamide Connection cable 2 m or 5 m Polyurethane - PVC, 3 x 0.25 mm
2 Connection cable with M8 x 1 mm Polyurethane, 3 x 0.25 mm
2 M8x1

SELECTION T ABLE

Airpel P/N Switching Cable Output Switching Response SICK, Inc. Pr oduct output Connections function fr equency sensitivity f in Hz in mT (gauss) GLN-1NPN2 m plain end50003 (30)MZTI-03VNS-KUO 234 mm w. M8 x1mmGLNC-1NPNconnector50003 (30)MZT1-03VNS-KP0 GLP-1PNP2 m plain end50003 (30)MZT1-03VPS-KW0 GLP-2PNP5 m plain end50003 (30)MZTI-03VPS-KUB 234 mm w. M8 x1mmGLPC-1PNPconnector50003 (30)MZT1-03VPS-KP0

OPTIONAL ACCESSOR Y EXTENSION CABLES

Airpel P/N Description L (mm) Sick, Inc. Pr oduct GCS2-12 meter cable with straight, 8 mm female connector2000KD3-SUM82
+50 – 0+200 GCS5-15 meter cable with straight, 8 mm female connector5000KD3-SUM85
– L (mm)
M8x1 50 ±3 Ø9.6 34.7

SENSOR CONNECTION DIAGRAM

NPN PNP

Wire colorContactAssignment Male 3-pin Connector

1. Brown 1. Brown4. Black4. Black3. Blue3. Blue

+ +--

1. Brown 1. Brown4. Black4. Black3. Blue3. Blue

+ +--

brown 1 + V DCblack

Load Load DC DC 1 34 Load Load DC DC

4 N.O.blue 3 - V DC
