Airpel-AB

® Force Without Friction

Metric

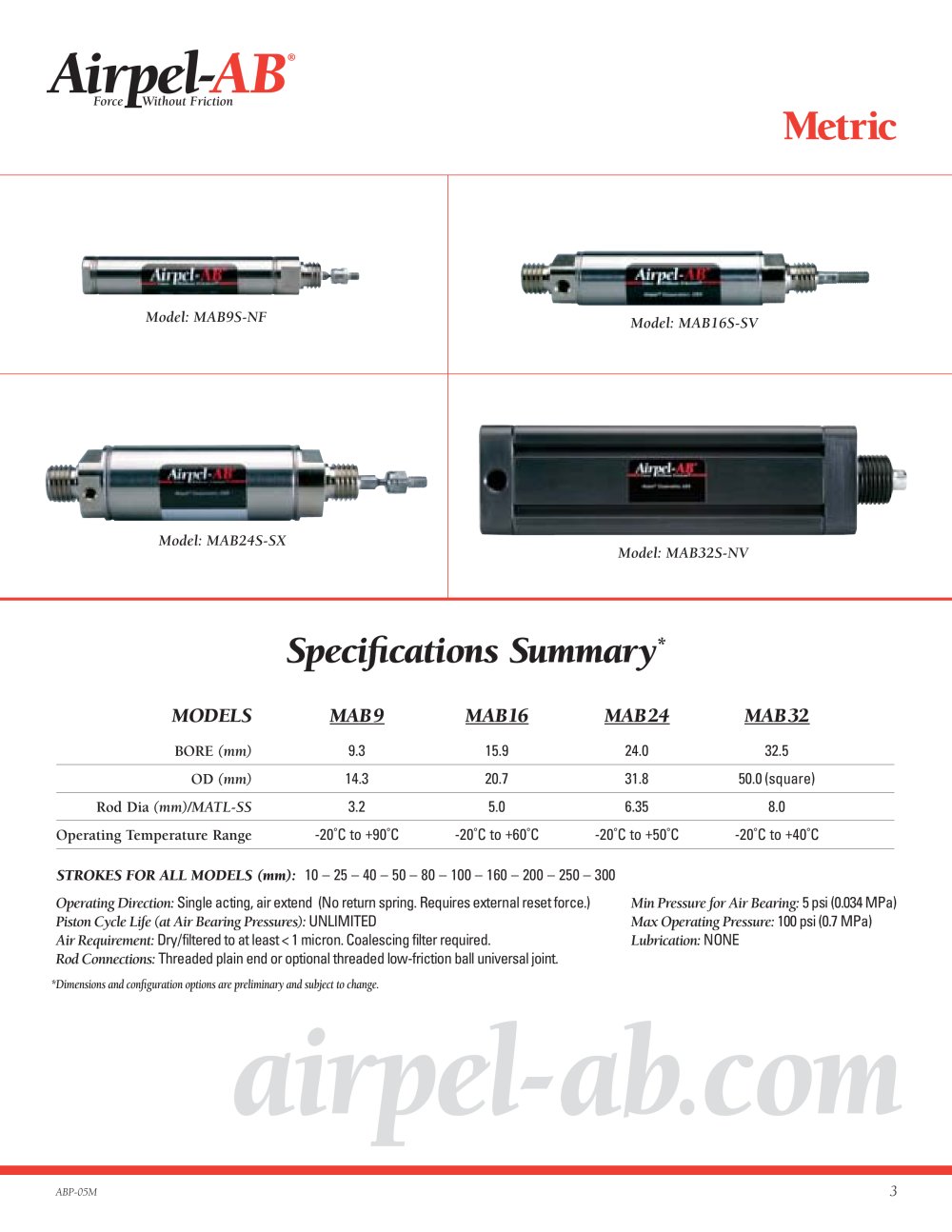

Model: MAB9S-NFModel: MAB16S-SV Model: MAB24S-SXModel: MAB32S-NV

Specifications Summary Specifications Summary

* *

MODELS MA B 9 MA B 1 6 MA B 24 MA B 32

BORE (mm) 9.315.924.032.5 OD (mm) 14.320.731.850.0(square) Rod Dia (mm)/MATL-SS 3.25.06.358.0 Operating Temperature Range -20ËšC to +90ËšC-20ËšC to +60ËšC-20ËšC to +50ËšC-20ËšC to +40ËšC STROKESFORALLMODELS (mm): 10 – 25 – 40 – 50 – 80 – 100 – 160 – 200 – 250 – 300 Operating Direction: Single acting, air extend (No return spring. Requires external reset force.) Min Pressure for Air Bearing: 5 psi (0.034 MPa) Piston Cycle Life (at Air Bearing Pressures): UNLIMITED Max Operating Pressure: 100 psi (0.7 MPa) Air Requirement: Dry/filtered to at least
*Dimensions and configuration options are preliminary and subject to change. ABP-05M

Airpel -AB - 11558 airpel-ab . com

3
