| S U P P L Y I N G C L E A N A I R T O | I N D U S T R Y | |||||
| | ||||||

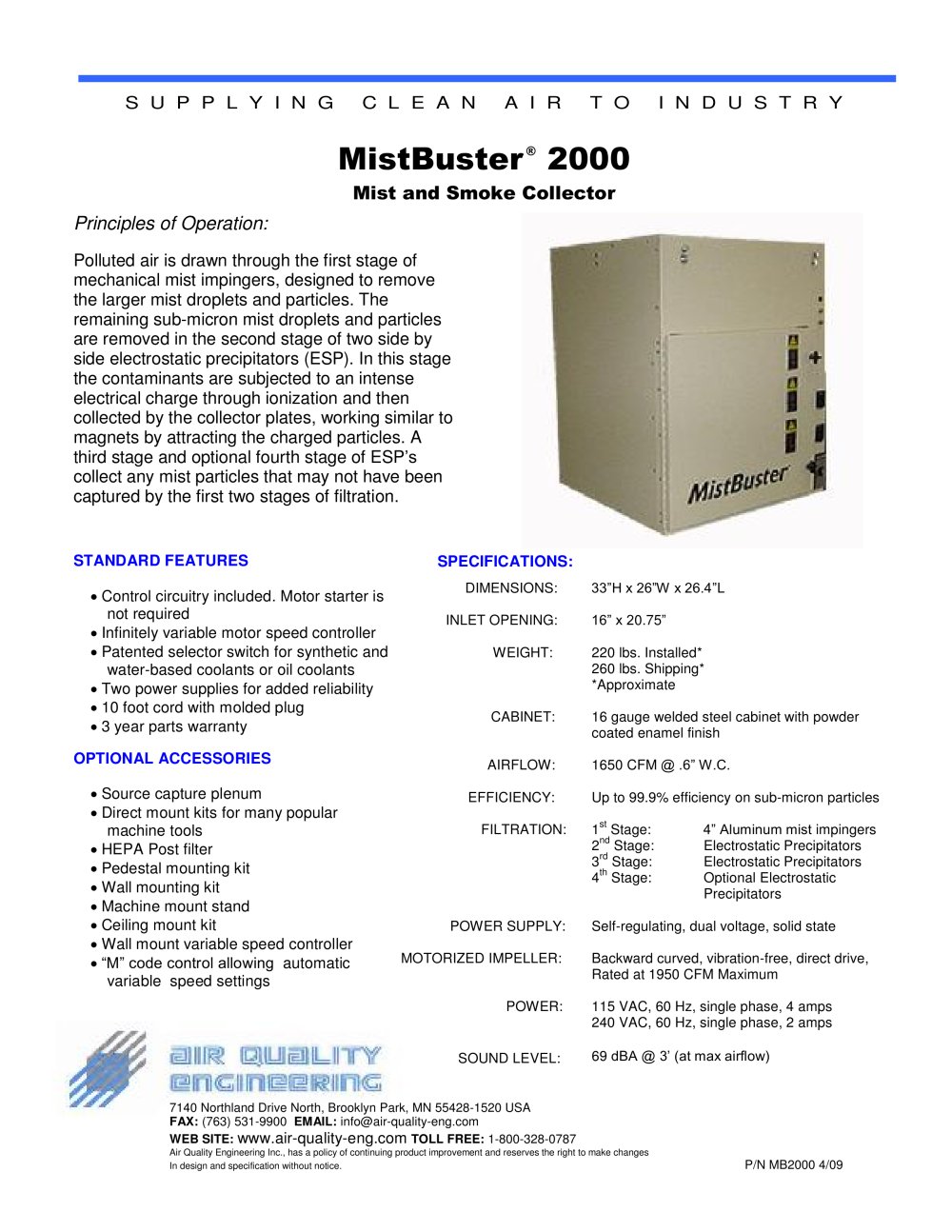

| MistBuster 2000 Mist and Smoke Collector | ||||||
| | ||||||
| Principles of Operation: | ||||||
| | ||||||
| Polluted air is drawn through the first stage of mechanical mist impingers, designed to remove the larger mist droplets and particles. The remaining sub-micron mist droplets and particles are removed in the second stage of two side by side electrostatic precipitators (ESP). In this stage the contaminants are subjected to an intense electrical charge through ionization and then collected by the collector plates, working similar to magnets by attracting the charged particles. A third stage and optional fourth stage of ESP's collect any mist particles that may not have been captured by the first two stages of filtration. | ||||||
| | ||||||
| STANDARD FEATURES | SPECIFICATIONS: | |||||
| | ||||||
| • Control circuitry included. Motor starter is not required • Infinitely variable motor speed controller • Patented selector switch for syntheti c a nd water-based coolants or oil coolants • Two power supplies for added reliability • 10 foot cord with molded plug • 3 year parts warranty OPTIONAL ACCESSORIES • Source capture plenum • Direct mount kits for many popular machine tools • HEPA Post filter • Pedestal mounting kit • Wall mounting kit • Machine mount stand • Ceiling mount kit | DIMENSIONS: INLET OPENING: WEIGHT: CABINET: AIRFLOW: EFFICIENCY: FILTRATION: | 33"H x 26"W x 26.4"L 16" x 20.75" 220 lbs. Installed* 260 lbs. Shipping* *Approximate 16 gauge welded steel cabinet with powder coated enamel finish 1650 CFM @ .6" W.C. Up to 99.9% efficiency on sub-micron particles 1st Stage: 4" Aluminum mist impingers 2nd Stage: Electrostatic Precipitators 3rd Stage: Electrostatic Precipitators 4th Stage: Optional Electrostatic Precipitators Self-regulating, dual voltage, solid state Backward curved, vibration-free, direct drive, Rated at 1950 CFM Maximum 115 VAC, 60 Hz, single phase, 4 amps 240 VAC, 60 Hz, single phase, 2 amps 69 dBA @ 3' (at max airflow) | ||||
| POWER SUPPLY: MOTORIZED IMPELLER: POWER: SOUND LEVEL: | ||||||
| • | Wall mount variable speed controller "M" code control allowing automatic variable speed settings | |||||
| mm QLmurnr @raoine©Riir№ | ||||||
| | ||||||
| 7140 Northland Drive North, Brooklyn Park, MN 55428-1520 USA fax: (763) 531-9900 email: info@air-quality-eng.com web site: www.air-quality-eng.com toll free: 1-800-328-0787 Air Quality Engineering Inc., has a policy of continuing product improvement and reserves the right to make changes In design and specification without notice. | P/N MB2000 4/09 | |||||
| | ||||||
