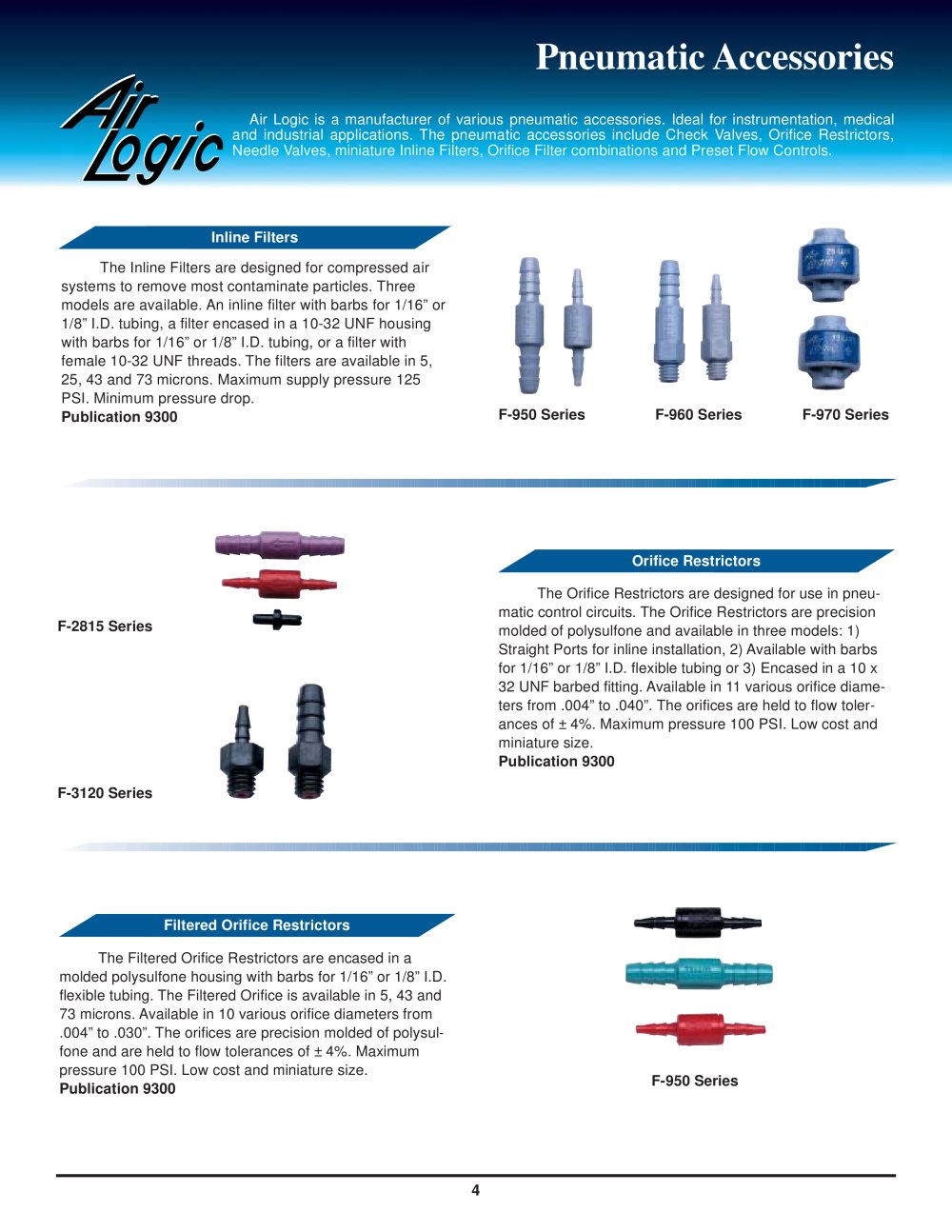

Pneumatic Accessories

Air Logic is a manufacturer of various pneumatic accessories. Ideal for instrumentation, medicaland industrial applications. The pneumatic accessories include Check valves manufacturer, Orifice Restrictors, Needle valves, miniature Inline Industrial filters, Orifice Filter combinations and Preset Flow controls. Inline Filters The Inline Filters are designed for compressed airsystems to remove most contaminate particles. Threemodels are available. An inline filter with barbs for 1/16” or 1/8” I.D. tubing, a filter encased in a 10-32 UNF housingwith barbs for 1/16” or 1/8” I.D. tubing, or a filter withfemale 10-32 UNF threads. The filters are available in 5,25, 43 and 73 microns. Maximum supply pressure 125PSI. Minimum pressure drop. Publication 9300 Orifice Restrictors The Orifice Restrictors are designed for use in pneu-matic control circuits. The Orifice Restrictors are precisionmolded of polysulfone and available in three models: 1) Straight Ports for inline installation, 2) Available with barbs for 1/16” or 1/8” I.D. flexible tubing or 3) Encased in a 10 x 32 UNF barbed fitting. Available in 11 various orifice diame-ters from .004” to .040”. The orifices are held to flow toler-ances of ±4%. Maximum pressure 100 PSI. Low cost and miniature size. Publication 9300 Filtered Orifice Restrictors F-960 SeriesF-970 SeriesF-950 Series F-2815 Series F-3120 Series F-950 Series The Filtered Orifice Restrictors are encased in amolded polysulfone housing with barbs for 1/16” or 1/8” I.D.flexible tubing. The Filtered Orifice is available in 5, 43 and 73 microns. Available in 10 various orifice diameters from .004” to .030”. The orifices are precision molded of polysul- fone and are held to flow tolerances of ±4%. Maximumpressure 100 PSI. Low cost and miniature size. Publication 9300
