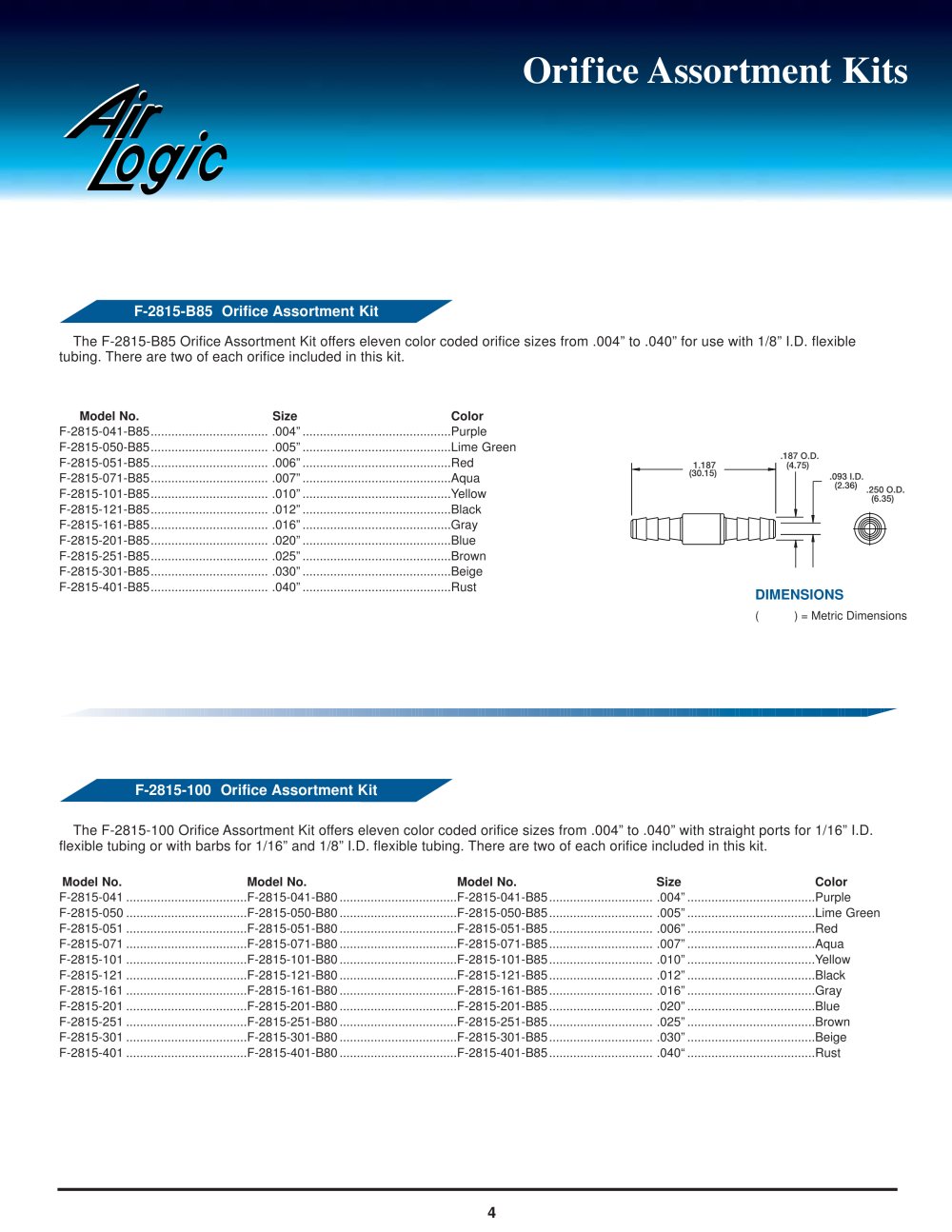

Orifice Assortment Kits

F-2815-B85 Orifice Assortment Kit

The F-2815-B85 Orifice Assortment Kit offers eleven color coded orifice sizes from .004" to .040" for use with 1/8" I.D. flexible tubing. There are two of each orifice included in this kit.

Model No.

F-2815-041-B85..................................

F-2815-050-B85..................................

F-2815-051-B85..................................

F-2815-071-B85..................................

F-2815-101-B85..................................

F-2815-121-B85..................................

F-2815-161-B85..................................

F-2815-201-B85..................................

F-2815-251-B85..................................

F-2815-301-B85..................................

F-2815-401-B85..................................

Size Color

.004"...........................................Purple

.005"...........................................Lime Green

.006"...........................................Red

.007"...........................................Aqua

.010"...........................................Yellow

.012"...........................................Black

.016"...........................................Gray

.020"...........................................Blue

.025"...........................................Brown

.030"...........................................Beige

.040"...........................................Rust

.250 o.d. (6.35)

I i 11 ■

шОш:

DIMENSIONS

( ) = Metric Dimensions

F-2815-100 Orifice Assortment Kit

The F-2815-100 Orifice Assortment Kit offers eleven color coded orifice sizes from .004" to .040" with straight ports for 1/16" I.D. flexible tubing or with barbs for 1/16" and 1/8" I.D. flexible tubing. There are two of each orifice included in this kit.

Model No. Model No. Model No. Size Color

F-2815-041 ...................................F-2815-041-B80..................................F-2815-041-B85...............................004".....................................Purple

F-2815-050...................................F-2815-050-B80..................................F-2815-050-B85...............................005".....................................Lime Green

F-2815-051 ...................................F-2815-051-B80..................................F-2815-051-B85...............................006".....................................Red

F-2815-071 ...................................F-2815-071-B80..................................F-2815-071-B85...............................007".....................................Aqua

F-2815-101 ...................................F-2815-101-B80..................................F-2815-101-B85...............................010".....................................Yellow

F-2815-121 ...................................F-2815-121-B80..................................F-2815-121-B85...............................012".....................................Black

F-2815-161 ...................................F-2815-161-B80..................................F-2815-161-B85...............................016".....................................Gray

F-2815-201 ...................................F-2815-201-B80..................................F-2815-201-B85...............................020".....................................Blue

F-2815-251 ...................................F-2815-251-B80..................................F-2815-251-B85...............................025".....................................Brown

F-2815-301 ...................................F-2815-301-B80..................................F-2815-301-B85...............................030".....................................Beige

F-2815-401 ...................................F-2815-401-B80..................................F-2815-401-B85...............................040".....................................Rust
