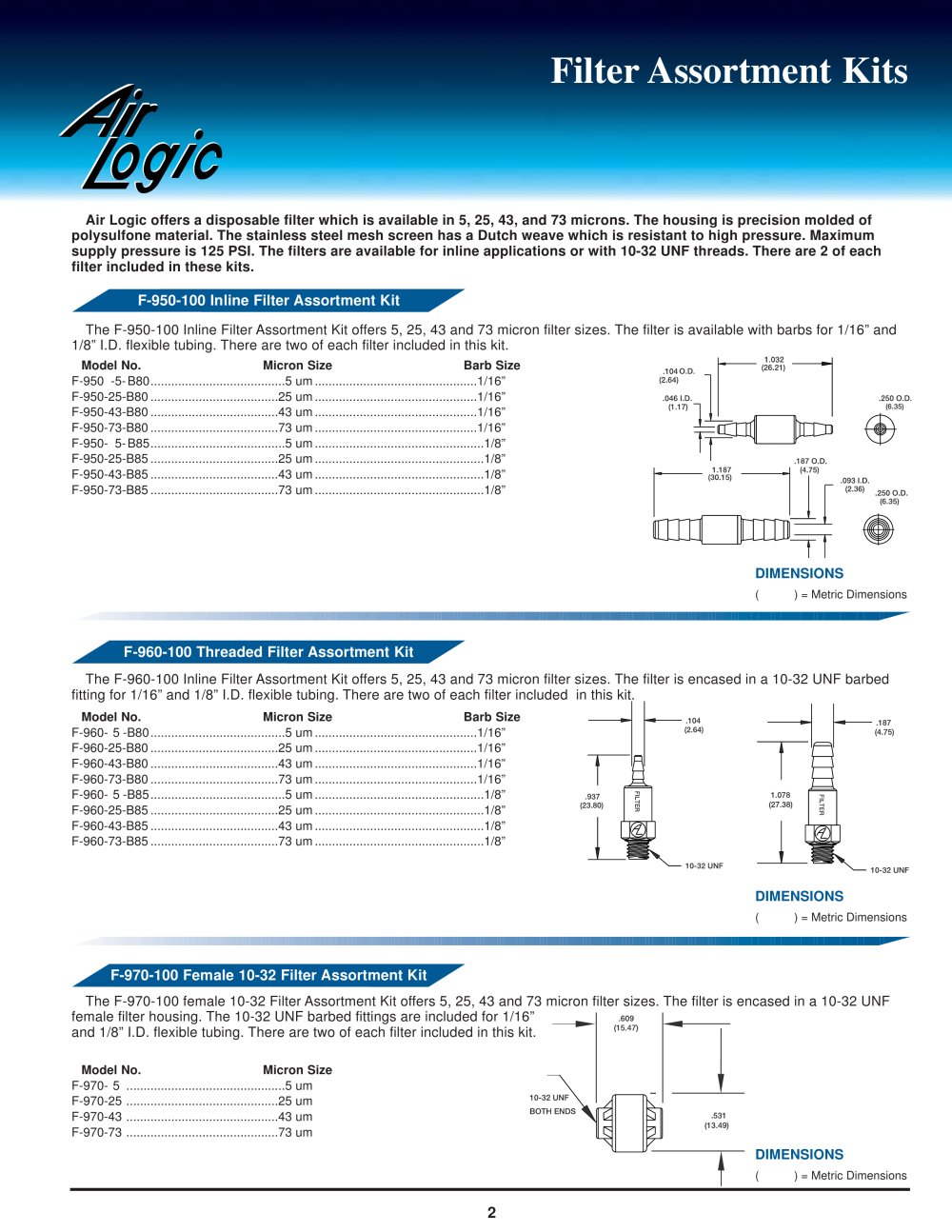

| | | Filter Assortment Kits | | |
| | | |
| | | Air Logic offers a disposable filter which is available in 5, 25, 43, and 73 microns. The housing is precision molded of polysulfone material. The stainless steel mesh screen has a Dutch weave which is resistant to high pressure. Maximum supply pressure is 125 PSI. The filters are available for inline applications or with 10-32 UNF threads. There are 2 of each filter included in these kits. | | |
| | | |
| | | F-950-100 Inline Filter Assortment Kit | | |
| | | |
| | | The F-950-100 Inline Filter Assortment Kit offers 5, 25, 43 and 73 micron filter sizes. The filter is available with barbs for 1/16" 1/8" I.D. flexible tubing. There are two of each filter included in this kit. Model No. Micron Size Barb Size ,„„™ | | and | | |
| | | |
| | | |
| | | F-950 -5-B80.......................................5 um. F-950-25-B80.....................................25 um. F-950-43-B80.....................................43 um. F-950-73-B80.....................................73 um. F-950- 5-B85.......................................5 um. F-950-25-B85.....................................25 um. F-950-43-B85.....................................43 um. F-950-73-B85.....................................73 um. | | .1/16" .1/16" .1/16" .1/16" ...1/8" ...1/8" ...1/8" ...1/8" | | |
| | | .046 I.D.
| | |
| | | |
| | | 17) "I | | |
| | | (1 | | |
| | | |
| | | teDJ | | |
| | | |
| | | .187 O.D. (4.75) | | |
| | | |
| | | .093 I.D. (2.36) | | |
| | | .250 O.D. (6.35) | | |
| | | |
| | | |
| | | |
| | | rarormi | | |
| | | TT | | |
| | | |
| | | |
| | | DIMENSIONS | | |
| | | |
| | | ) = Metric Dimensions | | |
| | | |
| | | F-960-100 Threaded Filter Assortment Kit | | |
| | | |
| | | The F-960-100 Inline Filter Assortment Kit offers 5, 25, 43 and 73 micron filter sizes. The filter is encased in a 10-32 UNF barbed fitting for 1/16" and 1/8" I.D. flexible tubing. There are two of each filter included in this kit. | | |
| | | |
| | | Model No. Micron Size F-960- 5-B80.......................................5 um....... F-960-25-B80.....................................25 um....... F-960-43-B80.....................................43 um....... F-960-73-B80.....................................73 um....... F-960- 5-B85.......................................5 um....... F-960-25-B85.....................................25 um....... F-960-43-B85.....................................43 um....... F-960-73-B85.....................................73 um....... | | Barb Size .....1/16" .....1/16" .....1/16" .....1/16" .......1/8" .......1/8" .......1/8" .......1/8" | | |
| | | - .104 (2.64) | | |
| | | |
| | | (23.80) | | |
| | | |
| | | |
| | | NSIONS ) = Metric Dimensions | | |
| | | |
| | | F-970-100 Female 10-32 Filter Assortment Kit | | |
| | | |
| | | The F-970-100 female 10-32 Filter Assortment Kit offers 5, 25, 43 and 73 micron filter sizes. The filter is encased in a 10-32 UNF female filter housing. The 10-32 UNF barbed fittings are included for 1/16" and 1/8" I.D. flexible tubing. There are two of each filter included in this kit. Model No. Micron Size F-970- 5 ..............................................5 um F-970-25 ............................................25 um F-970-43 ............................................43 um F-970-73 ............................................73 um ~NI ir^— DIMENSIONS ( ) = Metric Dimensions | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
