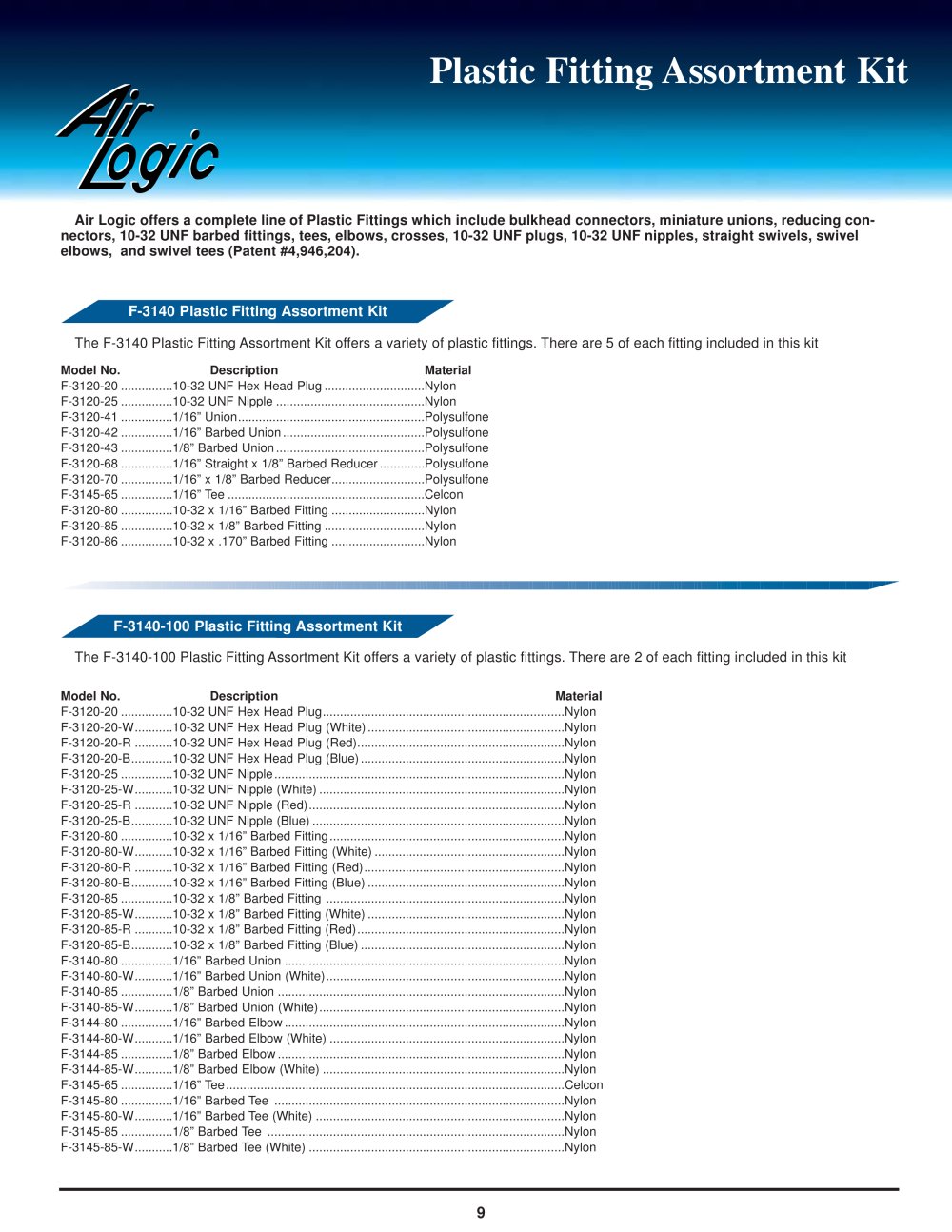

Plastic Fitting Assortment Kit
Air Logic offers a complete line of Plastic fittings which include bulkhead industrial connectors, miniature unions, reducing con­nectors, 10-32 UNF barbed industrial fittings, tees, elbows, crosses, 10-32 UNF plugs, 10-32 UNF nipples, straight swivels, swivel elbows, and swivel tees (Patent #4,946,204).
F-3140 Plastic Fitting Assortment Kit
The F-3140 Plastic Fitting Assortment Kit offers a variety of plastic fittings. There are 5 of each fitting included in this kit
Model No. Description Material
F-3120-20...............10-32 UNF Hex Head Plug.............................Nylon
F-3120-25...............10-32 UNF Nipple...........................................Nylon
F-3120-41...............1/16" Union......................................................Polysulfone
F-3120-42...............1/16" Barbed Union.........................................Polysulfone
F-3120-43...............1/8" Barbed Union...........................................Polysulfone
F-3120-68...............1/16" Straight x 1/8" Barbed Reducer.............Polysulfone
F-3120-70...............1/16" x 1/8" Barbed Reducer...........................Polysulfone
F-3145-65...............1/16" Tee.........................................................Celcon
F-3120-80...............10-32 x 1/16" Barbed Fitting...........................Nylon
F-3120-85...............10-32 x 1/8" Barbed Fitting.............................Nylon
F-3120-86...............10-32 x .170" Barbed Fitting...........................Nylon
F-3140-100 Plastic Fitting Assortment Kit
The F-3140-100 Plastic Fitting Assortment Kit offers a variety of plastic fittings. There are 2 of each fitting included in this kit
Model No. Description Material
F-3120-20...............10-32 UNF Hex Head Plug......................................................................Nylon
F-3120-20-W...........10-32 UNF Hex Head Plug (White).........................................................Nylon
F-3120-20-R...........10-32 UNF Hex Head Plug (Red)............................................................Nylon
F-3120-20-B............10-32 UNF Hex Head Plug (Blue)...........................................................Nylon
F-3120-25...............10-32 UNF Nipple....................................................................................Nylon
F-3120-25-W...........10-32 UNF Nipple (White).......................................................................Nylon
F-3120-25-R...........10-32 UNF Nipple (Red)..........................................................................Nylon
F-3120-25-B............10-32 UNF Nipple (Blue).........................................................................Nylon
F-3120-80...............10-32 x 1/16" Barbed Fitting....................................................................Nylon
F-3120-80-W...........10-32 x 1/16" Barbed Fitting (White).......................................................Nylon
F-3120-80-R...........10-32 x 1/16" Barbed Fitting (Red)..........................................................Nylon
F-3120-80-B............10-32 x 1/16" Barbed Fitting (Blue).........................................................Nylon
F-3120-85...............10-32 x 1/8" Barbed Fitting .....................................................................Nylon
F-3120-85-W...........10-32 x 1/8" Barbed Fitting (White).........................................................Nylon
F-3120-85-R...........10-32 x 1/8" Barbed Fitting (Red)............................................................Nylon
F-3120-85-B............10-32 x 1/8" Barbed Fitting (Blue)...........................................................Nylon
F-3140-80...............1/16" Barbed Union.................................................................................Nylon
F-3140-80-W...........1/16" Barbed Union (White).....................................................................Nylon
F-3140-85...............1/8" Barbed Union...................................................................................Nylon
F-3140-85-W...........1/8" Barbed Union (White).......................................................................Nylon
F-3144-80...............1/16" Barbed Elbow.................................................................................Nylon
F-3144-80-W...........1/16" Barbed Elbow (White)....................................................................Nylon
F-3144-85...............1/8" Barbed Elbow...................................................................................Nylon
F-3144-85-W...........1/8" Barbed Elbow (White)......................................................................Nylon
F-3145-65...............1/16" Tee..................................................................................................Celcon
F-3145-80...............1/16" Barbed Tee ....................................................................................Nylon
F-3145-80-W...........1/16" Barbed Tee (White)........................................................................Nylon
F-3145-85...............1/8" Barbed Tee ......................................................................................Nylon
F-3145-85-W...........1/8" Barbed Tee (White)..........................................................................Nylon
9
