O ^u

O 3

tfl

O -i

CD (—i^p

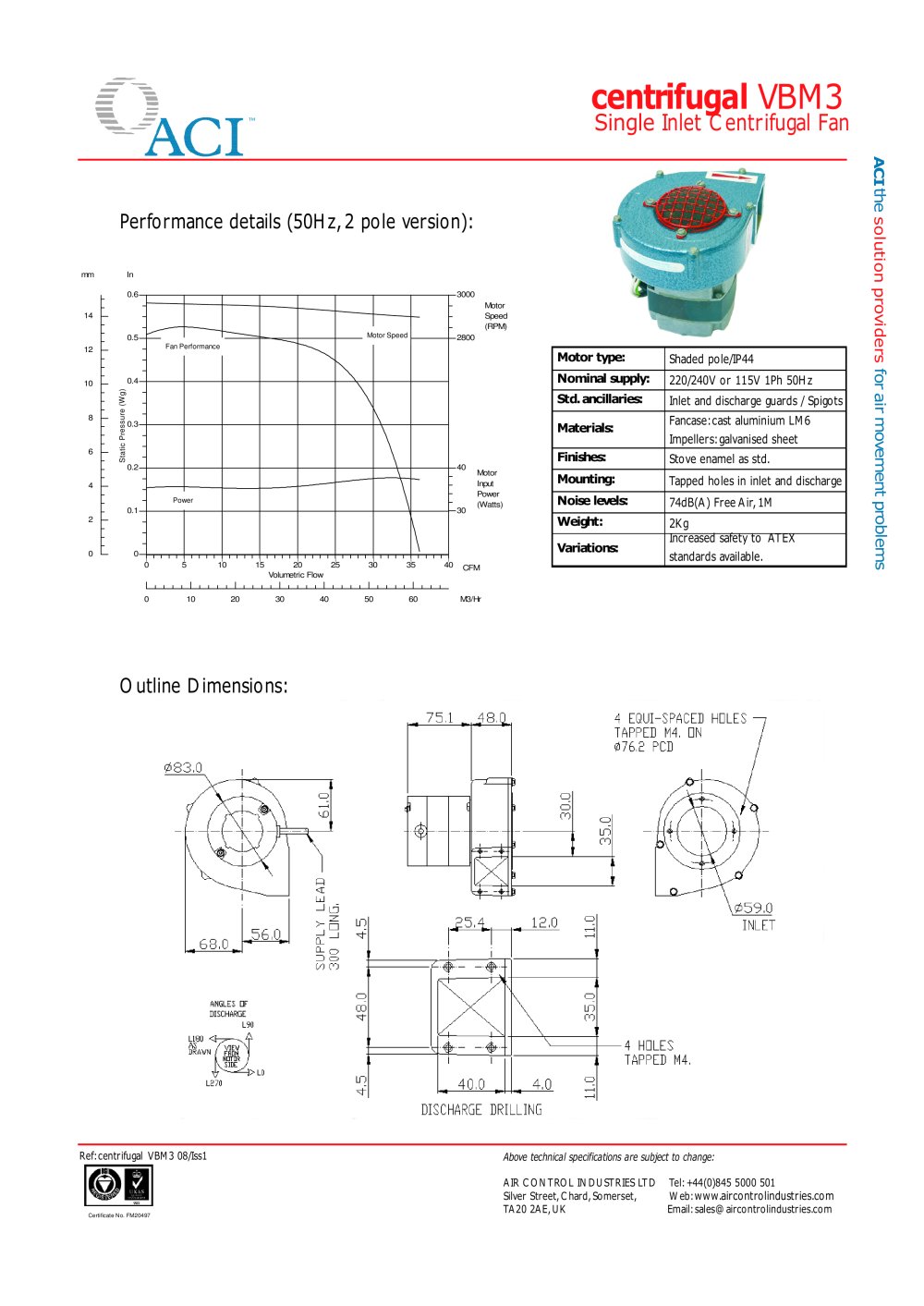

Performance details (50Hz, 2 pole version):


	Motor type:	Shaded pole/IP44
	Nominal supply:	220/240V or 115V 1Ph 50Hz
	Std. ancillaries	Inlet and discharge guards/ Spigots
	Materials:	Fancase: cast aluminium LM6 Impellers: galvanised sheet
	Finishes:	Stove enamel as std.
	Mounting:	Tapped holes in inlet and discharge
	Noise levels:	74dB(A) Free Air, 1M
	Weight:	2Kg
	Variations:	Increased safety to AlEX standards available.

Ref: centrifuga VBM3 08/Iss1

Above technical specifications are subject to change:
