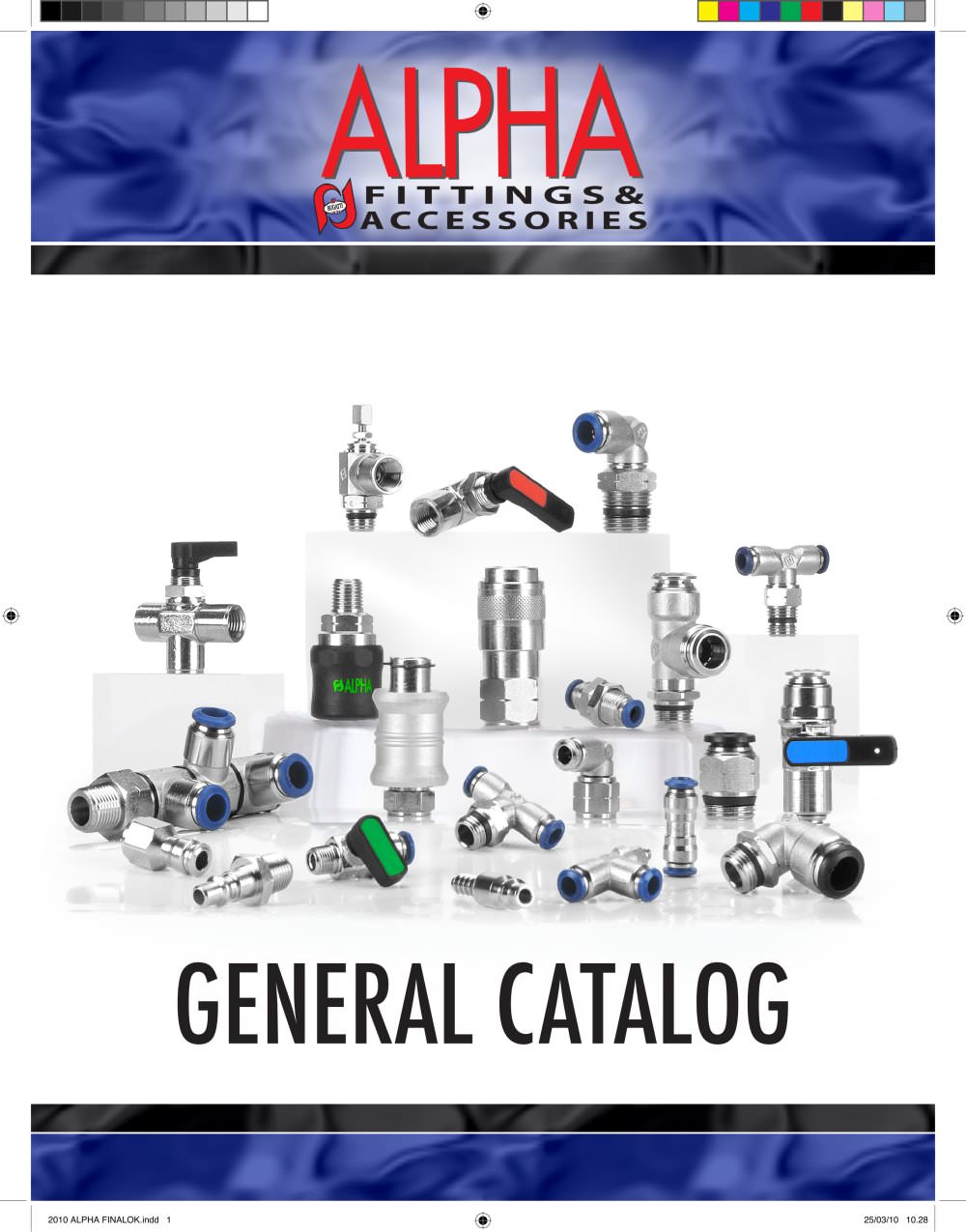

A GENERAL CATALOG 2010 ALPHA FINALOK.indd 1 25/03/10 10.28
Open the catalog to page 12 320 PREMIER CT FRANKLIN, TN 37067 • PH: 615 771 6650 FX: 615 771 0926 With over a century of experience Alpha Technologies and our partner Aignep spa have become worldwide leaders in the production and marketing of fittings and accessories for industrial applications in addition to a wide variety of specialty products employed in agriculture, irrigation, medical, pest control, plumbing and countless other industry segments. To maintain our role as industry leaders and to achieve optimal productivity, we invest in a highly skilled workforce and incorporate the most advanced equipment...
Open the catalog to page 216 320 PREMIER CT FRANKLIN, TN 37067 • PH: 615 771 6650 FX: 615 771 0926 PLUG TUBE REDUCER a Part No. A B L 88700-04-02 1/4 1/8 1.181 (30) 88700-04-53 1/4 5/32 1.181 (30) 88700-06-04 3/8 1/4 1.377 (35) 88700-08-04 1/2 1/4 1.693 (43) 88700-08-06 1/2 3/8 1.693 (43) B A L Part No. A B C 88610-02 1/8 .708 (18) .236 (6) 88610-53 5/32 .925 (23.5) .315 (8) 88610-04 1/4 .964 (24.5) .413 (10.5) 88610-05 5/16 1.023 (26) .511 (13) 88610-06 3/8 1.122 (28.5) .669 (17) 88610-08 1/2 1.122 (28.5) .787 (20) A C B Premium Air Distribution System Air distribution simplified. No more heavy corrosive iron pipe...
Open the catalog to page 16WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 17 INCH TUBE 87861-04 1/4" TUBE FITTING KIT Part No. Description Qty 87000-04-02 Straight 1/4 Tube x 1/8 Male Swift-Fit 5 87000-04-04 Straight 1/4 Tube x 1/4 Male Swift-Fit 5 87000-04-06 Straight 1/4 Tube x 3/8 Male Swift-Fit 5 87110-04-02 Swivel Elbow 1/4 Tube x 1/8 Male Swift-Fit 5 87110-04-04 Swivel Elbow 1/4 Tube x 1/4 Male Swift-Fit 5 87110-04-06 Swivel Elbow 1/4 Tube x 3/8 Male Swift-Fit 5 87210-04-02 Branch Tee 1/4 Tube x 1/8 Male Swift-Fit 5 87210-04-04 Branch Tee 1/4 Tube x 1/4 Male Swift-Fit 5 87210-04-06 Branch Tee 1/4 Tube x 3/8...
Open the catalog to page 1724 320 PREMIER CT FRANKLIN, TN 37067 • PH: 615 771 6650 FX: 615 771 0926 METRIC TUBE 50860N-6 6mm Tube Fitting Kit 50860N-8 8mm Tube Fitting Kit 50860N-4 4mm Tube Fitting Kit Part No. Description Qty 50000N-4-1/8 Straight 4mm Tube x 1/8 Male 5 50000N-4-1/4 Straight 4mm Tube x 1/4 Male 5 50110N-4-1/8 Swivel Elbow 4mm Tube x 1/8 Male 5 50110N-4-1/4 Swivel Elbow 4mm Tube x 1/4 Male 5 50210N-4-1/8 Branch Tee 4mm Tube x 1/8 Male 5 50210N-4-1/4 Branch Tee 4mm Tube x 1/4 Male 5 50222N-4-1/8 Run Tee 4mm Tube x 1/8 Male 5 50222N-4-1/4 Run Tee 4mm Tube x 1/4 Male 5 50040N-4 Union 4mm Tube 5 50050N-4...
Open the catalog to page 24WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 25 METRIC TUBE 50860N-10 10mm Tube Fitting Kit 50860N-12 12mm Tube Fitting Kit Part No. Description Qty 50000N-10-1/4 Straight 10mm Tube x 1/4 Male 3 50000N-10-3/8 Straight 10mm Tube x 3/8 Male 3 50110N-10-1/4 Swivel Elbow 10mm Tube x 1/4 Male 3 50110N-10-3/8 Swivel Elbow 10mm Tube x 3/8 Male 3 50210N-10-1/4 Branch Tee 10mm Tube x 1/4 Male 3 50210N-10-3/8 Branch Tee 10mm Tube x 3/8 Male 3 50222N-10-1/4 Run Tee 10mm Tube x 1/4 Male 3 50222N-10-3/8 Run Tee 10mm Tube x 3/8 Male 3 50040N-10 Union 10mm Tube 3 50050N-10 Bulkhead Union 10mm Tube 3...
Open the catalog to page 25WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 33 1. Shutter spring Stainless steel 2. Seal NBR 70 3. Ring Nickel-plated brass 4. O-ring NBR 70 5. Ring nut thrust spring Stainless steel 6. Ball Stainless steel 7. Sleeve Technopolymer 8. Coupling body Nickel-plated brass Temperature rating 0 - 180 F Media Compressed air Pressure rating 0 - 220 psi Socket type 1/4” Industrial COMPONENT SPECIFICATIONS SAFETY COUPLER Alpha’s innovative one-step release and exhaust safety coupler quickly vents system pressure allowing for a safe disconnect. Corrosion resistant stainless steel internal...
Open the catalog to page 33WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 45 controlsFLOW 2010 ALPHA FINALOK.indd 45 25/03/10 10.29
Open the catalog to page 45WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 65 Accessories 2010 ALPHA FINALOK.indd 65 25/03/10 10.30
Open the catalog to page 6566 320 PREMIER CT FRANKLIN, TN 37067 • PH: 615 771 6650 FX: 615 771 0926 WARNING! This valve exhausts to atmosphere. DO NOT use toxic, corrosive or flammable media. ON: In the "on" or open position, pressure flows from the inlet through a series of radial holes in the body to the air circuit OFF: Moving the sleeve to the "off" or closed position allows air from the circuit to be exhausted to the atmosphere. SLIDE VALVE FEMALE Pressure range 0 - 150 psi Temperature range Min: 0 F Max: 160 F COMPONENT SPECIFICATIONS 1. Sleeve Aluminum 2. Body Chrome-plated brass 3. Seal NBR 70 4. Snap ring...
Open the catalog to page 66WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 67 Figure 1 Figure 2 MALE x MALE INCH TUBE x TUBE COMPONENT SPECIFICATIONS 1. Body Nickel Plated Brass 2. End Cap Nickel Plated Brass 3. End Cap Seal NBR 70 / Viton 4. Spring Steel 5. Piston Nickel Plated Brass 6. Piston Seal NBR 70 / Viton Pressure Range 3 - 120 psi Cracking Pressure 3 psi Maximum Pressure 150 psi Temperature range Min: 0 F (-18 C) Max: 160 F (70 C) 1 2 3 4 5 6 CHECK VALVES NPTF THREAD NPTF THREAD Part No. A L ES 82662-02 1/8 1.437 (36.5) .512 (13) 82662-04 1/4 1.850 (47) .669 (17) L Es A A Part No. Tube L B 82664-04 1/4...
Open the catalog to page 67WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 77 specialty manufacturing 2010 ALPHA FINALOK.indd 77 25/03/10 10.31
Open the catalog to page 7780 320 PREMIER CT FRANKLIN, TN 37067 • PH: 615 771 6650 FX: 615 771 0926 FLOW CONTROL SPECIFICATIONS7.06.56.05.55.04.54.03.53.02.52.01.51.00.50123456789101112131415141312111098765432101234567891011121314151615403753532.53027.52522.52017.51512.501234567891011121314107.552.5 FLOW CONTROL VALVES 10/32" FLOW RATE (CFM) NUMBER OF NEEDLE TURNS FLOW CONTROL VALVES 1/8" FLOW RATE (CFM) NUMBER OF NEEDLE TURNS FLOW CONTROL VALVES 1/4" FLOW RATE (CFM) NUMBER OF NEEDLE TURNS FLOW CONTROL VALVES 3/8" FLOW RATE (CFM) NUMBER OF NEEDLE TURNS TECHNICAL SPECIFICATION 2010 ALPHA FINALOK.indd 80 25/03/10 10.31
Open the catalog to page 80WWW.ALPHAFITTINGS.COM • SERVICE@ALPHAFITTINGS.COM 81 BALL VALVE SPECIFICATIONS4542.54037.53532.53027.52522.52017.51512.501234567891011121314155047.5107.552.52220181614121002468101214161820864 FLOW CONTROL VALVES 1/2" FLOW RATE (CFM) NUMBER OF NEEDLE TURNS INLINE FLOW CONTROLS FLOW RATE (CFM) NUMBER OF NEEDLE TURNS10090807060504001530456075302010290105 BALL VALVES 1/8" FLOW RATE (CFM) OUTLET PRESSURE P2 (PSI)10090807060504001530456075302010290105 BALL VALVES 1/4" FLOW RATE (CFM) OUTLET PRESSURE P2 (PSI) INLET PRESSURE P1 (PSI) INLET PRESSURE P1 (PSI) 90 PSI 75 PSI 60 PSI 45 PSI 30 PSI 90 PSI...
