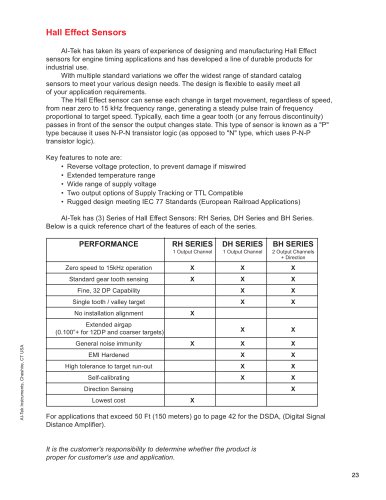

Hall Effect Sensors
AI-Tek has taken its years of experience of designing and manufacturing Hall Effect
sensors for engine timing applications and has developed a line of durable products for
industrial use.
With multiple standard variations we offer the widest range of standard catalog
sensors to meet your various design needs. The design is flexible to easily meet all
of your application requirements.
The Hall Effect sensor can sense each change in target movement, regardless of speed,
from near zero to 15 kHz frequency range, generating a steady pulse train of frequency
proportional to target speed. Typically, each time a gear tooth (or any ferrous discontinuity)
passes in front of the sensor the output changes state. This type of sensor is known as a "P"
type because it uses N-P-N transistor logic (as opposed to "N" type, which uses P-N-P
transistor logic).
Key features to note are:
• Reverse voltage protection, to prevent damage if miswired
• Extended temperature range
• Wide range of supply voltage
• Two output options of Supply Tracking or TTL Compatible
• Rugged design meeting IEC 77 Standards (European Railroad Applications)
AI-Tek has (3) Series of Hall Effect Sensors: RH Series, DH Series and BH Series.
Below is a quick reference chart of the features of each of the series.

PERFORMANCE

RH SERIES

DH SERIES

BH SERIES

1 Output Channel

1 Output Channel

2 Output Channels
+ Direction

Zero speed to 15kHz operation

X

X

X

Standard gear tooth sensing

X

X

X

Fine, 32 DP Capability

X

X

Single tooth / valley target

X

X

X

X

X

X

EMI Hardened

X

X

High tolerance to target run-out

X

X

Self-calibrating

X

X

No installation alignment

X

AI-Tek Instruments, Cheshire, CT USA

Extended airgap
(0.100”+ for 12DP and coarser targets)
General noise immunity

X

Direction Sensing
Lowest cost

X
X

For applications that exceed 50 Ft (150 meters) go to page 42 for the DSDA, (Digital Signal
Distance Amplifier).

It is the customer's responsibility to determine whether the product is
proper for customer's use and application.
23

Sensors
  1. P. 1

  2. P. 18
