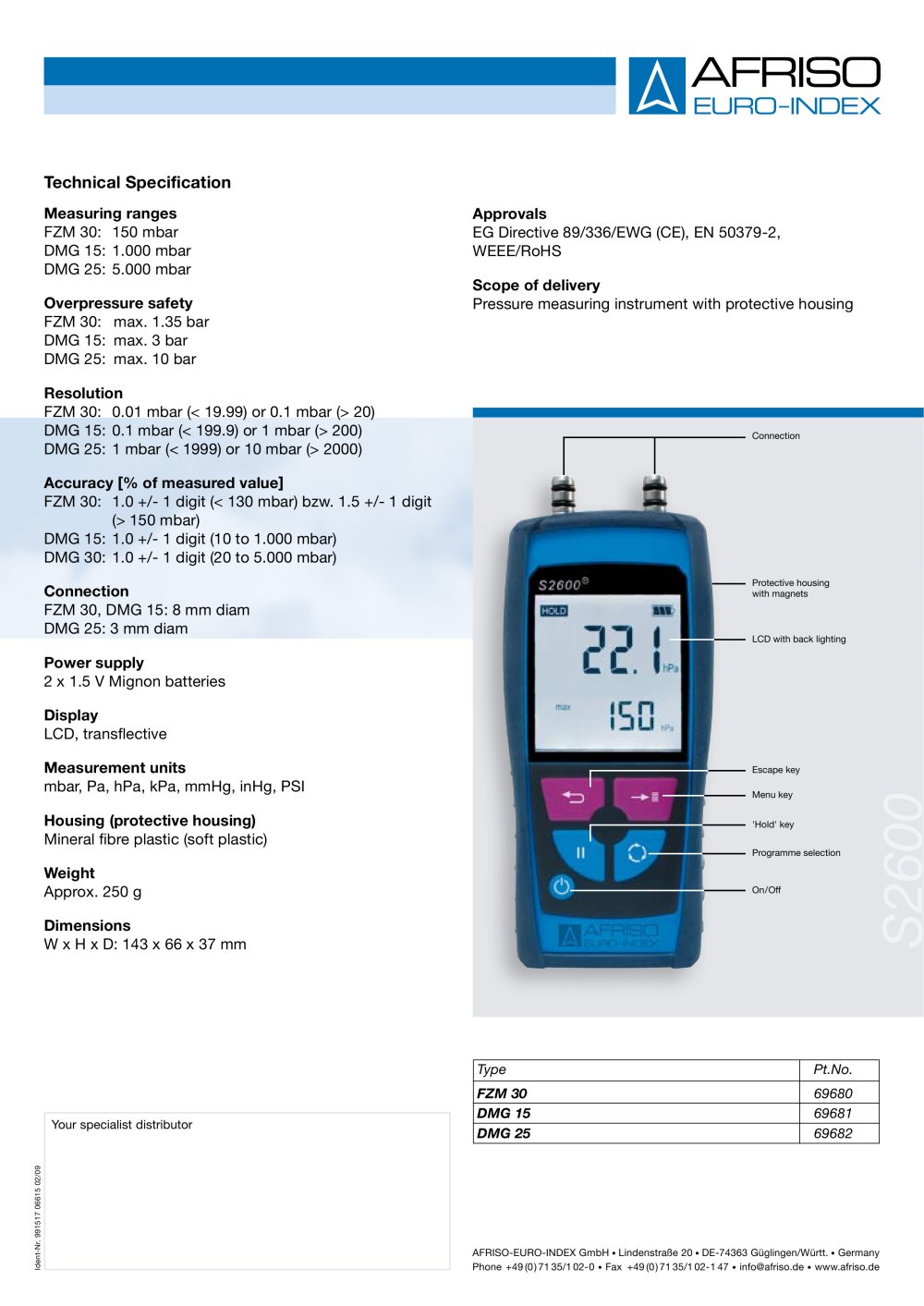

Ident-Nr. 991517 06615 02/09 Your specialist distributor Technical Specification Measuring ranges FZM 30: 150 mbar DMG 15: 1.000 mbar DMG 25: 5.000 mbar Overpressure safety FZM 30: max. 1.35 bar DMG 15: max. 3 bar DMG 25: max. 10 bar Resolution FZM 30: 0.01 mbar ( 20) DMG 15: 0.1 mbar ( 200) DMG 25: 1 mbar ( 2000) Accuracy [% of measured value] FZM 30: 1.0 +/- 1 digit ( 150 mbar) DMG 15: 1.0 +/- 1 digit (10 to 1.000 mbar) DMG 30: 1.0 +/- 1 digit (20 to 5.000 mbar) Connection FZM 30, DMG 15: 8 mm diam DMG 25: 3 mm diam Power supply 2 x 1.5 V Mignon batteries Display LCD, transflective Measurement units mbar, Pa, hPa, kPa, mmHg, inHg, PSI Housing (protective housing) Mineral fibre plastic (soft plastic) Weight Approx. 250 g Dimensions W x H x D: 143 x 66 x 37 mm Approvals EG Directive 89/336/EWG (CE), EN 50379-2, WEEE/RoHS Scope of delivery Pressure measuring instrument with protective housing Type Pt.No. FZM 30 69680 DMG 15 69681 DMG 25 69682 LCD with back lighting Menu key Programme selection Escape key 'Hold' key On/Off Protective housing with magnets Connection S2600 AFRISO-EURO-INDEX GmbH • Lindenstraße 20 • DE-74363 Güglingen/Württ. • Germany Phone +49 (0) 71 35/1 02-0 • Fax +49 (0) 71 35/1 02-1 47 • info@afriso.de • www.afriso.de
