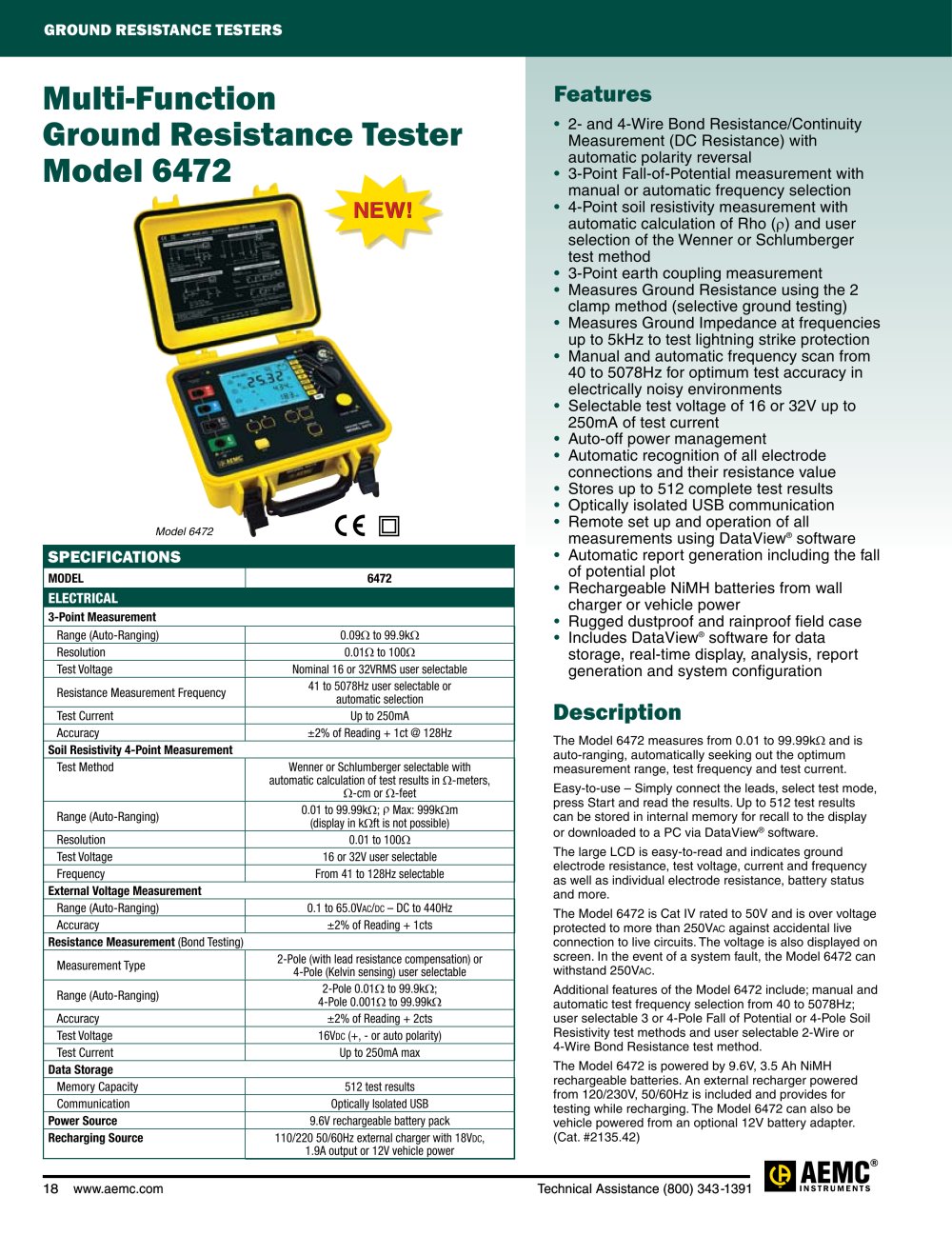

6472 Multi-Function Ground Resistance Testers
2Pages

18 www.aemc.com Technical Assistance (800) 343-1391 Ground resistance testers Features • 2- and 4-Wire Bond Resistance/Continuity Measurement (DC Resistance) with automatic polarity reversal • 3-Point Fall-of-Potential measurement with manual or automatic frequency selection • 4-Point soil resistivity measurement with automatic calculation of Rho (ñ) and user selection of the Wenner or Schlumberger test method • 3-Point earth coupling measurement • Measures Ground Resistance using the 2 clamp method (selective ground testing) • Measures Ground Impedance at frequencies up to 5kHz to test lightning strike protection • Manual and automatic frequency scan from 40 to 5078Hz for optimum test accuracy in electrically noisy environments • Selectable test voltage of 16 or 32V up to 250mA of test current • Auto-off power management • Automatic recognition of all electrode connections and their resistance value • Stores up to 512 complete test results • Optically isolated USB communication • Remote set up and operation of all measurements using DataView® software • Automatic report generation including the fall of potential plot • Rechargeable NiMH batteries from wall charger or vehicle power • Rugged dustproof and rainproof field case • Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration Specifications MODEL 6472 electrical 3-Point Measurement Range (Auto-Ranging) 0.09. to 99.9k. Resolution 0.01. to 100. Test Voltage Nominal 16 or 32VRMS user selectable Resistance Measurement Frequency 41 to 5078Hz user selectable or automatic selection Test Current Up to 250mA Accuracy ±2% of Reading + 1ct @ 128Hz Soil Resistivity 4-Point Measurement Test Method Wenner or Schlumberger selectable with automatic calculation of test results in .-meters, .-cm or .-feet Range (Auto-Ranging) 0.01 to 99.99k.; ñ Max: 999k.m (display in k.ft is not possible) Resolution 0.01 to 100. Test Voltage 16 or 32V user selectable Frequency From 41 to 128Hz selectable External Voltage Measurement Range (Auto-Ranging) 0.1 to 65.0Vac/dc – DC to 440Hz Accuracy ±2% of Reading + 1cts Resistance Measurement (Bond Testing) Measurement Type 2-Pole (with lead resistance compensation) or 4-Pole (Kelvin sensing) user selectable Range (Auto-Ranging) 2-Pole 0.01. to 99.9k.; 4-Pole 0.001. to 99.99k. Accuracy ±2% of Reading + 2cts Test Voltage 16Vdc (+, - or auto polarity) Test Current Up to 250mA max Data Storage Memory Capacity 512 test results Communication Optically Isolated USB Power Source 9.6V rechargeable battery pack Recharging Source 110/220 50/60Hz external charger with 18Vdc, 1.9A output or 12V vehicle power NEW! Model 6472 Description The Model 6472 measures from 0.01 to 99.99k. and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current. Easy-to-use – Simply connect the leads, select test mode, press Start and read the results. Up to 512 test results can be stored in internal memory for recall to the display or downloaded to a PC via DataView® software. The large LCD is easy-to-read and indicates ground electrode resistance, test voltage, current and frequency as well as individual electrode resistance, battery status and more. The Model 6472 is Cat IV rated to 50V and is over voltage protected to more than 250Vac against accidental live connection to live circuits. The voltage is also displayed on screen. In the event of a system fault, the Model 6472 can withstand 250Vac. Additional features of the Model 6472 include; manual and automatic test frequency selection from 40 to 5078Hz; user selectable 3 or 4-Pole Fall of Potential or 4-Pole Soil Resistivity test methods and user selectable 2-Wire or 4-Wire Bond Resistance test method. The Model 6472 is powered by 9.6V, 3.5 Ah NiMH rechargeable batteries. An external recharger powered from 120/230V, 50/60Hz is included and provides for testing while recharging. The Model 6472 can also be vehicle powered from an optional 12V battery adapter. (Cat. #2135.42) Multi-Function Ground Resistance Tester Model 6472

Technical Assistance (800) 343-1391 www.aemc.com 19 Includes meter, rechargeable NiMH batteries, optical USB cable, power adapter 110/240V with power cord 115V US, two 500 ft color-coded leads on spools (red/blue), two 100 ft color-coded leads (hand-tied, green/black), one 30 ft lead (green), four T-shaped auxiliary ground electrodes, set of five spaded lugs, one 100 ft AEMC® tape measure, DataView® software, ground tester workbook CD, carrying bag for meter, carrying bag for kit, product warranty and registration card and a user manual. Catalog #2135.54 • Configure all functions and...
