1050 1000V Megohmmeters
9Pages

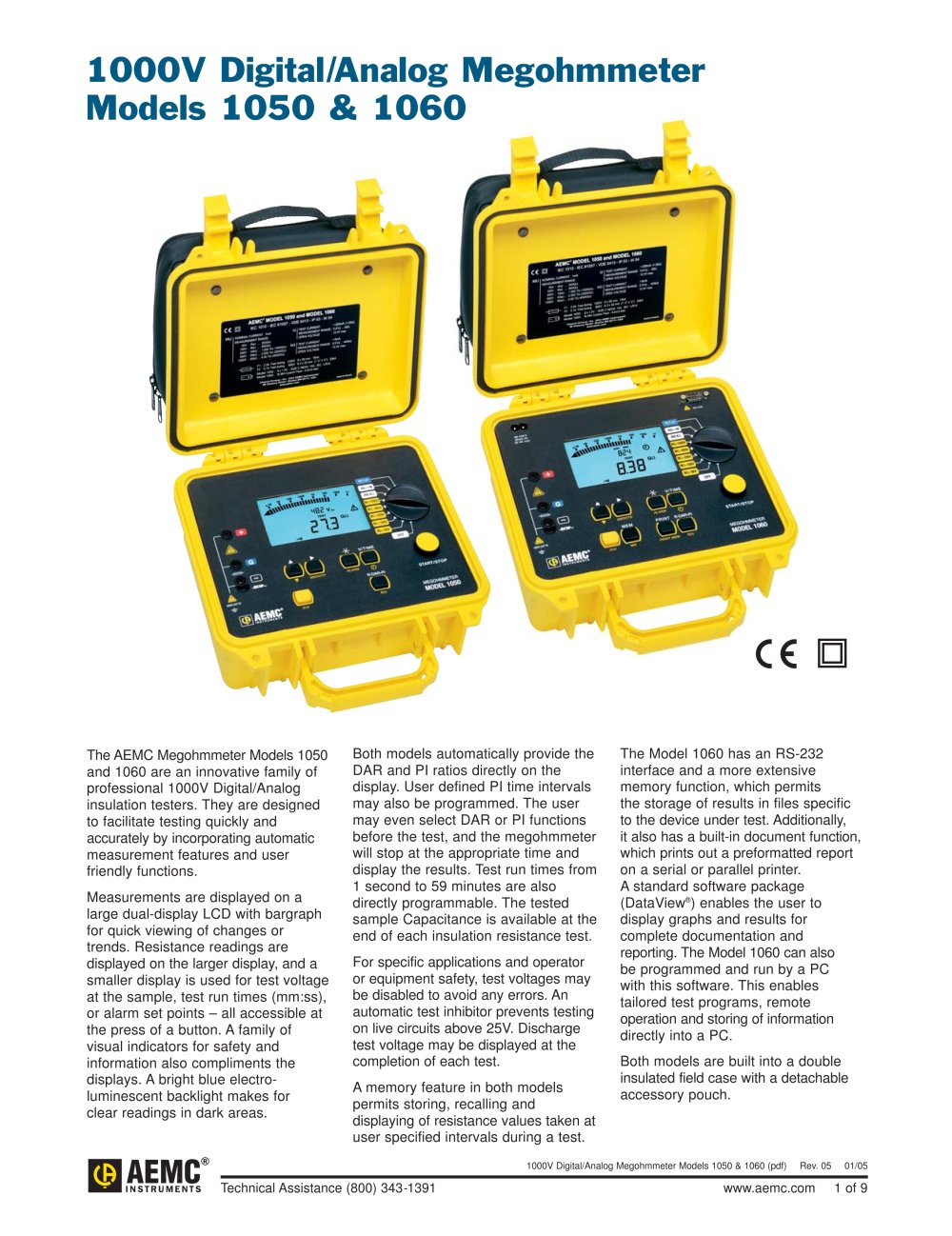

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 1 of 9 The AEMC Megohmmeter Models 1050 and 1060 are an innovative family of professional 1000V Digital/Analog insulation testers. They are designed to facilitate testing quickly and accurately by incorporating automatic measurement features and user friendly functions. Measurements are displayed on a large dual-display LCD with bargraph for quick viewing of changes or trends. Resistance readings are displayed on the larger display, and a smaller display is used for test voltage at the sample, test run times (mm:ss), or alarm set points – all accessible at the press of a button. A family of visual indicators for safety and information also compliments the displays. A bright blue electroluminescent backlight makes for clear readings in dark areas. 1000V Digital/Analog Megohmmeter Models 1050 & 1060 Both models automatically provide the DAR and PI ratios directly on the display. User defined PI time intervals may also be programmed. The user may even select DAR or PI functions before the test, and the megohmmeter will stop at the appropriate time and display the results. Test run times from 1 second to 59 minutes are also directly programmable. The tested sample Capacitance is available at the end of each insulation resistance test. For specific applications and operator or equipment safety, test voltages may be disabled to avoid any errors. An automatic test inhibitor prevents testing on live circuits above 25V. Discharge test voltage may be displayed at the completion of each test. A memory feature in both models permits storing, recalling and displaying of resistance values taken at user specified intervals during a test. The Model 1060 has an RS-232 interface and a more extensive memory function, which permits the storage of results in files specific to the device under test. Additionally, it also has a built-in document function, which prints out a preformatted report on a serial or parallel printer. A standard software package (DataView®) enables the user to display graphs and results for complete documentation and reporting. The Model 1060 can also be programmed and run by a PC with this software. This enables tailored test programs, remote operation and storing of information directly into a PC. Both models are built into a double insulated field case with a detachable accessory pouch.

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 2 of 9 FUNCTION MODEL MODEL 1050 1060 50V (0.002MÙ to 200GÙ) 100V (0.004MÙ to 400GÙ) 250V (0.01MÙ to 1TÙ) 500V (0.02MÙ to 2TÙ) 1000V (40kÙ to 4TÙ) Voltage Test/Safety Check (600VAC/DC) Guard Terminal Continuity (40Ù) @200mA Resistance (400kÙ) Lead Compensation Backlight Timer (1–59 minutes) Digital Dual Display Analog Bargraph Auto-Off Continuity Buzzer Continuity Buzzer Disable Voltage Detection (>25V) Safety Test Inhibitor Automatic Discharge Rechargable NiMH Battery –...

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 3 of 9 Construction Back-lit dual liquid crystal display RS-232 serial interface port (Model 1060) Rotary selection switch Start/Stop button Function buttons (6 on Model 1050) or (8 on Model 1060) Model 1050 is not equipped with MEM or PRINT buttons Input terminal (+) Input terminal (G) Input terminal (–) AC power input (Model 1060) (direct operation on AC and battery recharge) The Models 1050 and 1060 are built into a double insulated field case. This extra rugged...

Specifications MODELS 1050 1060 ELECTRICAL Insulation Tests Test Voltage 50V 0.002MÙ to 200GÙ 0.002MÙ to 200GÙ 100V 0.004MÙ to 400GÙ 0.004MÙ to 400GÙ 250V 0.01MÙ to 1000GÙ (1TÙ) 0.01MÙ to 1000GÙ (1TÙ) 500V 0.02MÙ to 2000GÙ (2TÙ) 0.02MÙ to 2000GÙ (2TÙ) 1000V 0.04MÙ to 4000GÙ (4TÙ) 0.04MÙ to 4000GÙ (4TÙ) Short Circuit Current <6mADC <6mADC Accuracy 2kÙ to 400GÙ ±5% of Reading ± 3cts ±5% of Reading ± 3cts 400GÙ to 4TÙ ±5% of Reading ± 10cts ±5% of Reading ± 10cts DAR (1 min/30 sec) 0.000 to 9.999 0.000 to 9.999 PI (10 min/1 min & user programmable) 0.000 to 9.999 0.000 to 9.999 Capacitance...

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 5 of 9 Accessories Remote Test Probe Catalog #2118.97 (optional) PC RS-232, DB9 F/F 6 ft Null Modem Cable Catalog #2119.45 Cable, PC RS-232 DB9 F/F 6 ft for Model 1060 Detachable accessory pouch includes leads, alligator clips and test probe. Model 1060 pouch also includes cables and US 120V power cord. Remote Test Button The accessory carrying pouch attaches to the lid of the case via four press-on snaps. Remote Test Probe used with Models 1050 or 1060 with target light...

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 6 of 9 Model 1060 easily configures land runs right from a PC. Features Configure all functions of the Megohmmeter Model 1060 Print reports of all test results • Select test voltage and run tests from your computer with a simple click and execute process • Capture and display data in real time • Retrieve data from the instrument’s memory: • Over 1500 insulation resistance measurements • Over 4000 resistance measurements • Display DAR and PI ratios • Plot graphs of manual...

1000V Digital/Analog Megohmmeter Models 1050 & 1060 (pdf) Rev. 05 01/05 Technical Assistance (800) 343-1391 www.aemc.com 7 of 9 DataView® (Catalog #2125.13) is included with the Model 1060 The DataView® Software provides a convenient way to configure and control Megohmmeter tests from your computer. Through the use of two clear and easy-to-use dialog boxes, all functions of the Model 1060 can be configured and tests can be initiated. Results can be displayed in real time and stored in your PC. Reports can be printed along with the operator’s comments and analysis. A simple press of the...
