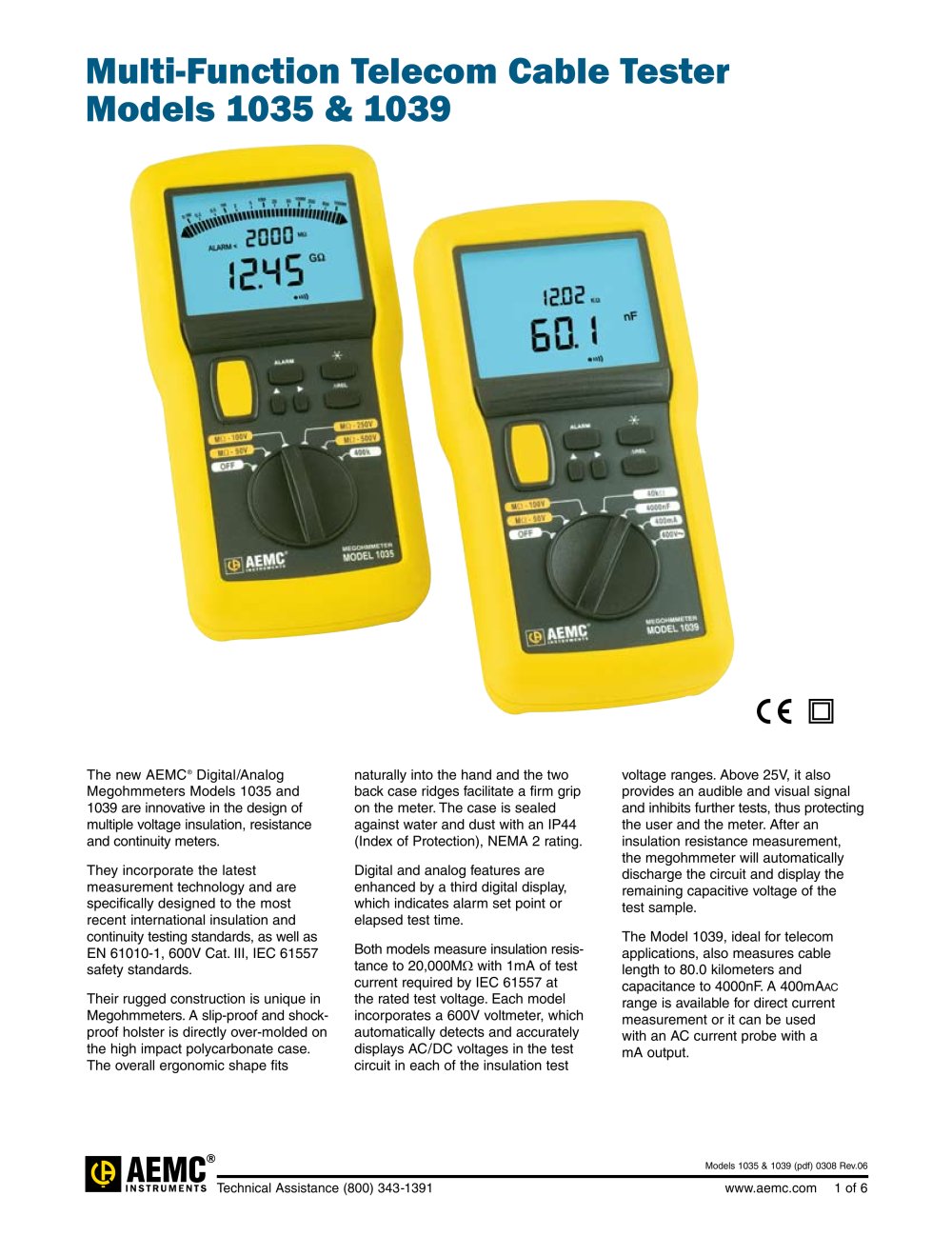

The new AEMC" Digital/Analog Megohmmeters Models 1035 and 1039 are innovative in the design of multiple voltage insulation, resistance and continuity meters.

They incorporate the latest measurement technology and are specifically designed to the most recent international insulation and continuity testing standards, as well as EN 61010-1, 600V Cat. III, IEC 61557 safety standards.

Their rugged construction is unique in Megohmmeters. A slip-proof and shock-proof holster is directly over-molded on the high impact polycarbonate case. The overall ergonomic shape fits

naturally into the hand and the two back case ridges facilitate a firm grip on the meter. The case is sealed against water and dust with an IP44 (Index of Protection), NEMA 2 rating.

Digital and analog features are enhanced by a third digital display, which i ndicates alarm set point or elapsed test time.

Both models measure insulation resis­tance to 20,000MQ with 1mA of test current required by IEC 61557 at the rated test voltage. Each model i ncorporates a 600V voltmeter, which automatically det ects and accurately displays AC/DC voltages in the test circuit in each of the insulation test

voltage ranges. Above 25V, it also provides an audible and visual signal and inhibits further tests, thus protecting the user and the meter. After an insulation resistance measurement, the megohmmeter will automatically discharge the circuit and display the remaining capacitive voltage of the test sample.

The Model 1039, ideal for telecom applications, also measures cable length to 80.0 kilometers and capacitance to 4000nF. A 400mAAC range is available for direct current measurement or it can be used with an AC current probe with a mA output.

Models 1035 & 1039 (pdf) 0308 Rev.06
