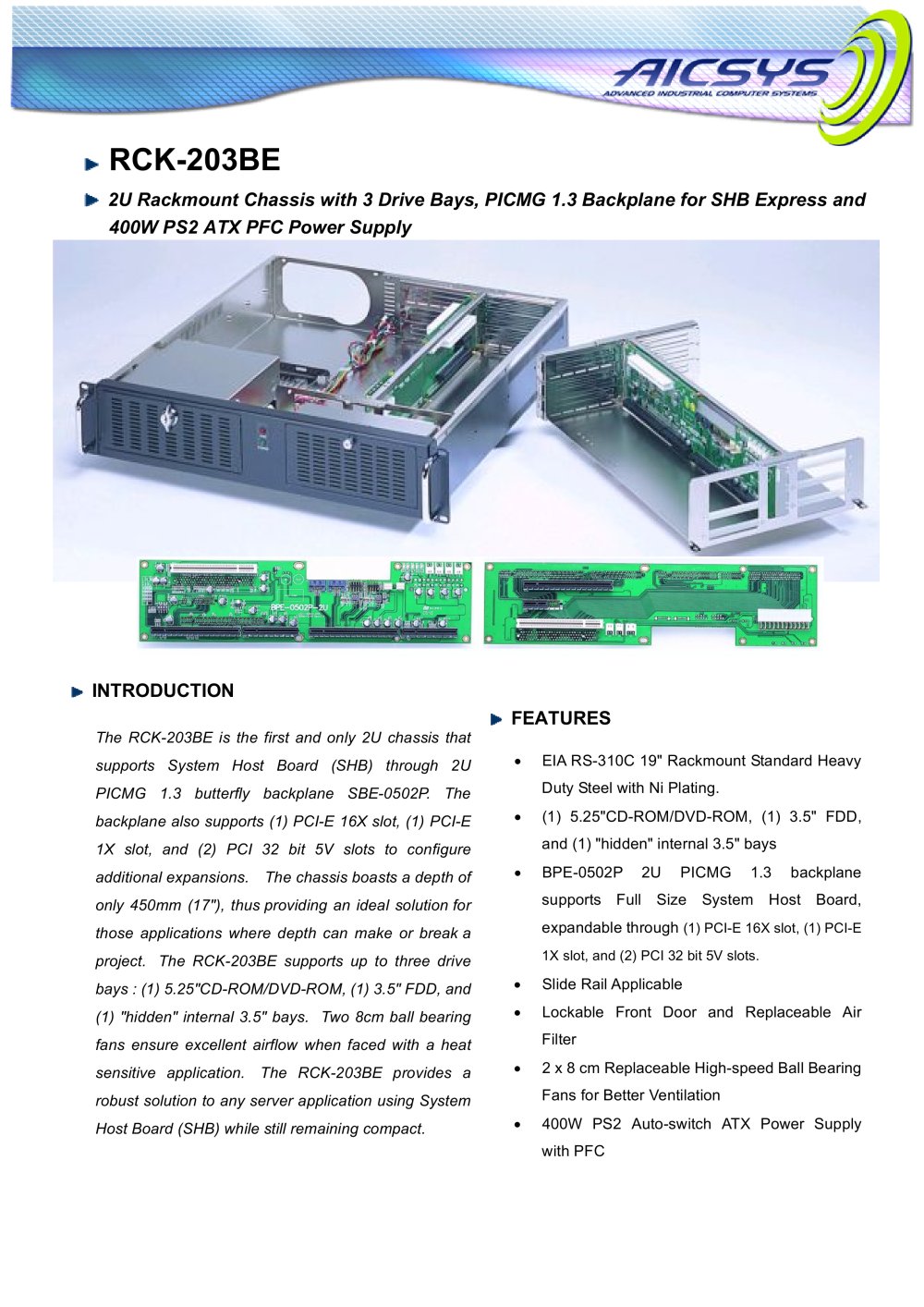

RCK-203BE

2U Rackmount Chassis with 3 Drive Bays, PICMG 1.3 Backplane for SHB Express and 400W PS2 ATX PFC Power Supply INTRODUCTION FEATURES

The RCK-203BE is the first and only 2U chassis that supports System Host Board (SHB) through 2U PICMG 1.3 butterfly backplane SBE-0502P. The backplane also supports (1) PCI-E 16X slot, (1) PCI-E 1X slot, and (2) PCI 32 bit 5V slots to configure additional expansions. The chassis boasts a depth of only 450mm (17"), thus providing an ideal solution for those applications where depth can make or break a project. The RCK-203BE supports up to three drive bays : (1) 5.25"CD-ROM/DVD-ROM, (1) 3.5" FDD, and (1) "hidden" internal 3.5" bays. Two 8cm ball bearing fans ensure excellent airflow when faced with a heat sensitive application. The RCK-203BE provides a robust solution to any server application using System Host Board (SHB) while still remaining compact. EIA RS-310C 19" Rackmount Standard Heavy Duty Steel with Ni Plating. (1) 5.25"CD-ROM/DVD-ROM, (1) 3.5" FDD, and (1) "hidden" internal 3.5" bays BPE-0502P 2U PICMG 1.3 backplane supports Full Size System Host Board, expandable through
(1) PCI-E 16X slot, (1) PCI-E 1X slot, and (2) PCI 32 bit 5V slots. Slide Rail Applicable Lockable Front Door and Replaceable Air Filter 2 x 8 cm Replaceable High-speed Ball Bearing Fans for Better Ventilation 400W PS2 Auto-switch ATX Power Supply with PFC
