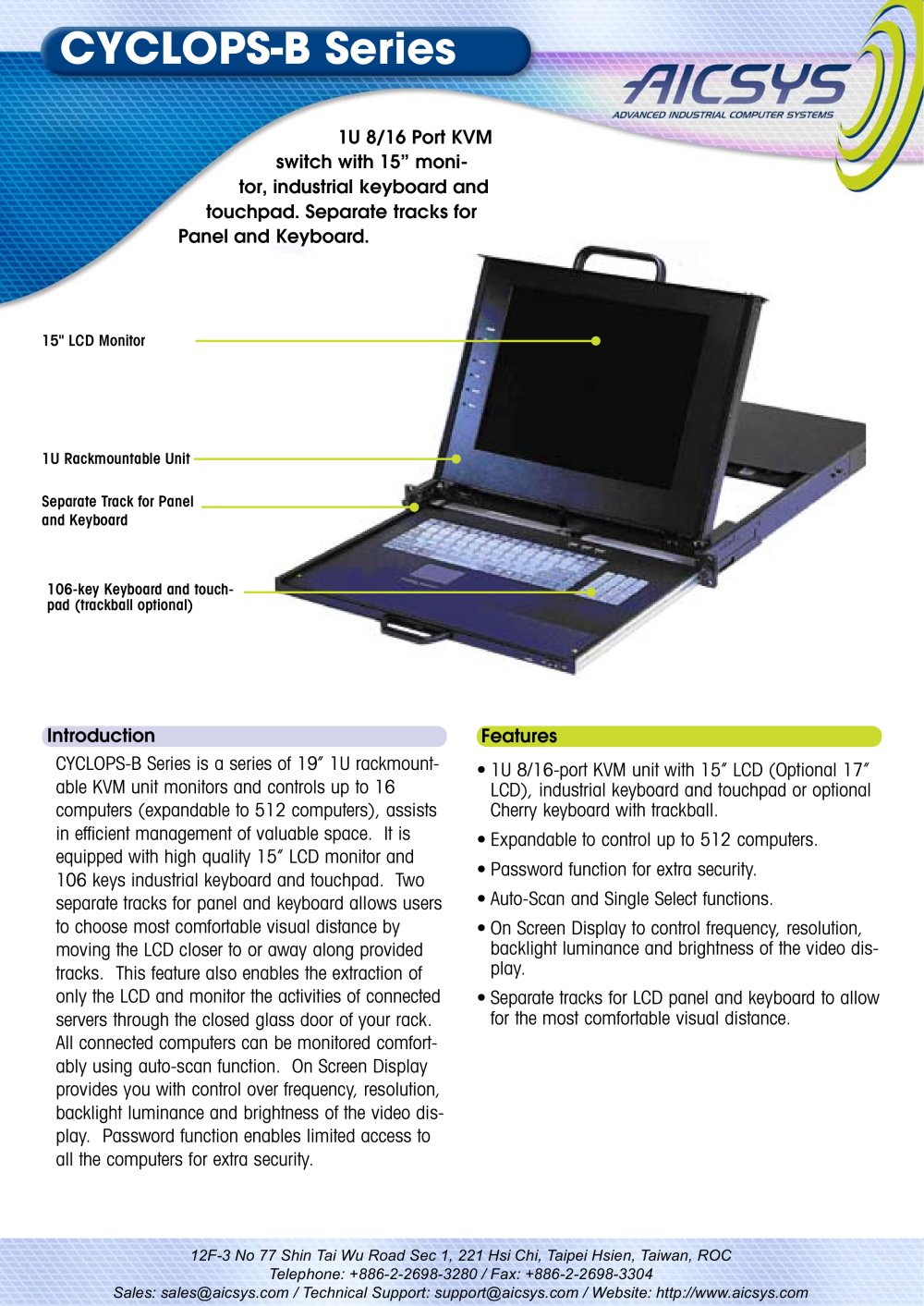

CYCLOPS-B Series

1U 8/16 Port KVM switch with 15” moni-tor, industrial keyboard and touchpad. Separate tracks for Panel and Keyboard.
15" LCD Monitor 106-key Keyboard and touch-pad (trackball optional)Separate Track for Panel and Keyboard 1U Rackmountable Unit Introduction Features CYCLOPS-B Series is a series of 19” 1U rackmount-able KVM unit monitors and controls up to 16 computers (expandable to 512 computers), assists in efficient management of valuable space. It is equipped with high quality 15” LCD monitor and 106 keys industrial keyboard and touchpad. Two separate tracks for panel and keyboard allows users to choose most comfortable visual distance by moving the LCD closer to or away along provided tracks. This feature also enables the extraction of only the LCD and monitor the activities of connected servers through the closed glass door of your rack. All connected computers can be monitored comfort- ably using auto-scan function. On Screen Display provides you with control over frequency, resolution, backlight luminance and brightness of the video dis- play. Password function enables limited access to all the computers for extra security. • 1U 8/16-port KVM unit with 15” LCD (Optional 17” LCD), industrial keyboard and touchpad or optional Cherry keyboard with trackball. • Expandable to control up to 512 computers. • Password function for extra security. • Auto-Scan and Single Select functions. • On Screen Display to control frequency, resolution, backlight luminance and brightness of the video dis- play.• Separate tracks for LCD panel and keyboard to allow for the most comfortable visual distance.
