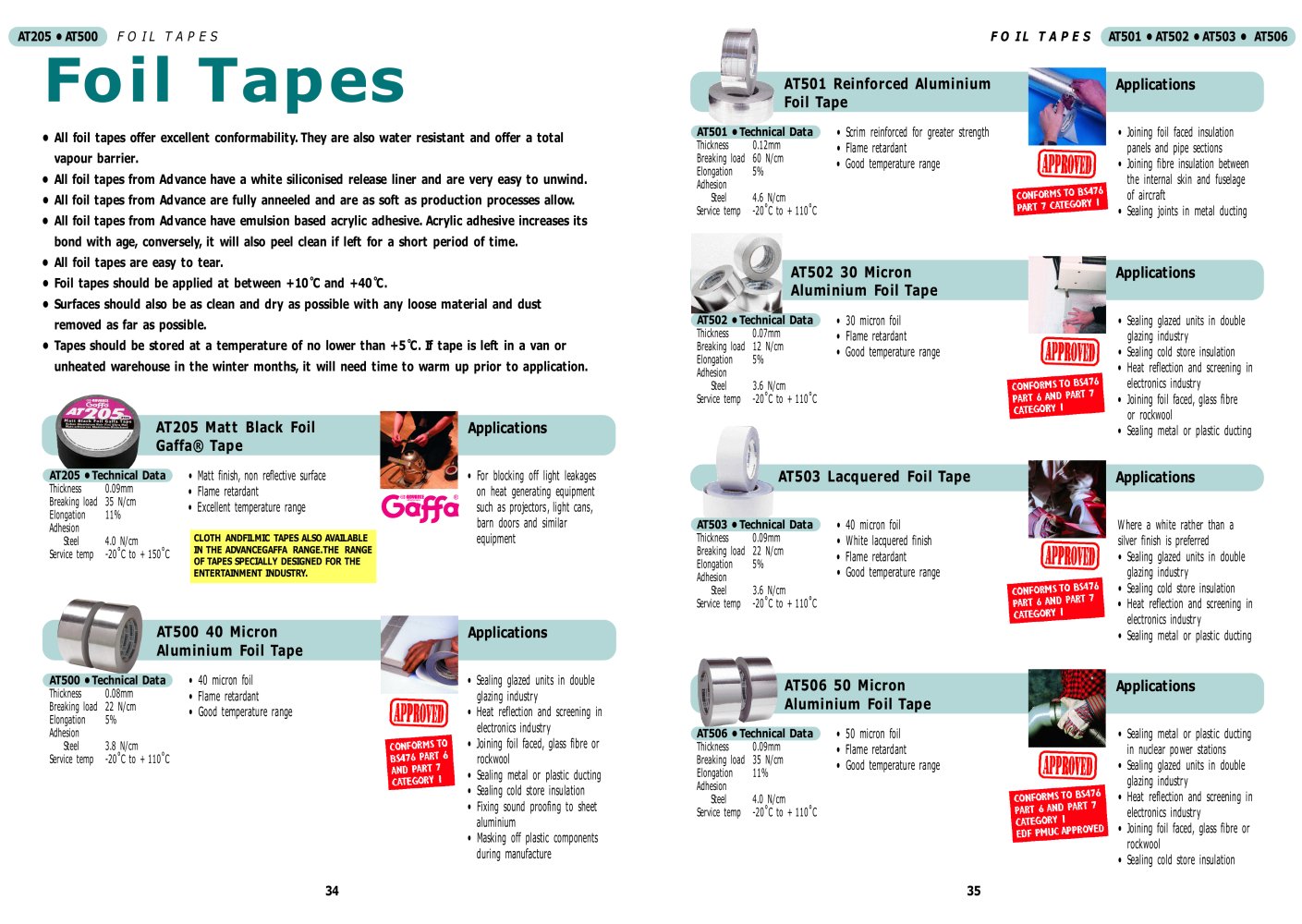

AT205 • AT500 FOIL TA P E S

FO IL TAPES AT501 • AT502 • AT503 • AT506

AT501 Reinforced Al u mi n i u m Foil Ta p e

Applications

AT501 • Technical Data

Scrim reinforced for greater strength Flame retardant

Good temperature range

Joining foil faced insulation panels and pipe sections Joining fibre insulation between the internal skin and fuselage of aircraft

Sealing joints in metal ducting

All foil tapes offer excellent conformability. They are also water resistant and offer a total vapour barrier.

All foil tapes from Advance have a white siliconised release liner and are very easy to unwind. All foil tapes from Advance are fully anneeled and are as soft as production processes allow. All foil tapes from Advance have emulsion based acrylic adhesive. Acrylic adhesive increases its bond with age, conversely, it will also peel clean if left for a short period of time. All foil tapes are easy to tear.

Foil tapes should be applied at between +10°C and +40°C.

Surfaces should also be as clean and dry as possible with any loose material and dust removed as far as possible.

Tapes should be stored at a temperature of no lower than +5°C. If tape is left in a van or unheated warehouse in the winter months, it will need time to warm up prior to application.

Thickness Breaking load Rogation Adhesion See

Service temp

0.12mm 60 Wcm

5%

4.6 Wcm -20°Cto + 110°C

AT502 30 Micro n

Aluminium Foil Ta p e

Applications

AT502 • Technical Data

30 mcon foil Fame retardant

Good temperature range

Sealing gazd units in double gazing industry Sealing cold store insulation Heat reflection and screening in electronics industry Joining foil faced gass fibre or rockwool

Sealing metal or plastic ducting

Thickness

0.07rrm

Breaking load 12 Wcm Rcrgaticn K% Adhesion

See

Sevice temp

3.6 Wcm -20°Cto + 110°C

AT205 Matt Black Foil Gaffa® Ta p e

Applications

AT205 • Technical Data

IhJckress 0.09mm

Breaking load 35 Wcm

FRongation 11% Adhesion

See 4.0 Wcm

Service temp -20°Cto + 150°C

• Matt finish, non reflective surface

• Rame retardant

• Excceient temperature range

Per blocking off light leakages on heat generating equpmen such as projectors, light cans, barn doors and similar equpment

AT503 Lacquered Foil Tape

Applications

AT503 • Technical Data

Thickness 0.09mm

Breaking load 22 Wcm

Rlongation 5%

Adhesion

See 3.6 Wcm

Sevice temp -20°Cto + 110°C

• 40 mcon foil

• White lacquered finish

• Flame retardant

• Good temperature range

Where a white rather than a silver finish is preferred

• Sealing gazd units in double gazing industry

• Sealing cold store insulation

• Heat reflection and screening in electronics industry

• Sealing metal or plastic ducting

AT500 40 Micro n

Aluminium Foil Ta p e

Applications

AT500 • Technical Data

Thickness 0.08mm

Breaking load 22 Wcm

Sanation 5% Adhesion

See 3.8 Wcm

Service temp -20°Cto + 110°C

• 40 mcon foil

• Flame retardait

• Good temperature range

Sealing gazd units in double gazing industry

Heat reflection and screening in electronics industry Joining foil faced, gass fibre or rockwod

Sealing metal or plastic ducting Sealing cold store insulation Fixing sound proofing to sheet aluminium

Maskng off plastic components during manufacture

AT506 50 Micro n

Aluminium Foil Ta p e

Applications

AT506 • Technical Data

Thickness 0.09mm

Breaking load 35 Wcm

Rlongation 11% Adhesion

See 4.0 Wcm

Service temp -20°Cto +110°C

• 50 micron foil

• Flame retardant

• Good temperature range

• Sealing metal or plastic ducting in nuclear power stations

• Sealing gazd units in double gazing industry

• Heat reflection and screening in electronics industry

• Joining foil faced gass fibre or rockwool

• Sealing cold store insulation
