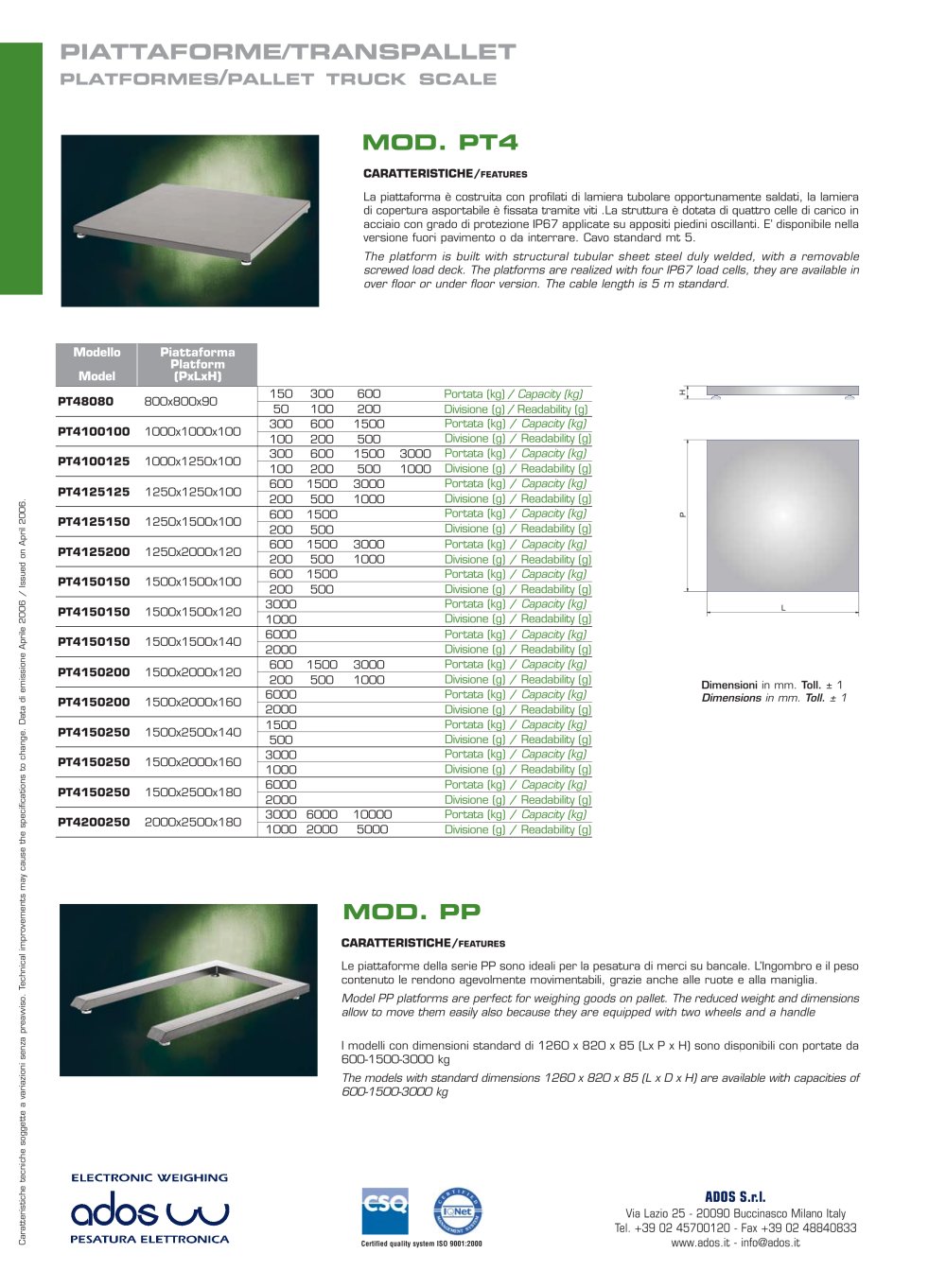

PIATTAFORME/TRANSPALLET

SLATFORMES/PALLET TRUCK SCALE

MOD. PT4

CARATTERISTICHE/features

La piattaforma è costruita con profilati di lamiera tubolare opportunamente saldati, la lamiera di copertura asportabile è fissata tramite viti .La struttura è dotata di quattro celle di carico in acciaio con grado di protezione IP67 applicate su appositi piedini oscillanti. E' disponibile nella versione fuori pavimento o da interrare. Cavo standard mt 5.

The platform is built with structural tubular sheet steel duly welded, with a removable screwed load deck. The platforms are realized with four IP67 load cells, they are available in over floor or under floor version. The cable length is 5 m standard.


Modello	Piattaforma Platform
Model	(PxLxH)
PT48080	800x800x90	150	300	600	Portata (kg) / Capacity [kg]
PT48080	800x800x90	50	100	200	Divisione (g) / Readability (g)
PT4100100	1000x1000x100	300	600	1500	Portata (kg) / Capacity (kg]
PT4100100	1000x1000x100	100	200	500	Divisione (g) / Readability (g)
PT4100125	1000x1250x100	300	600	1500 3000	Portata (kg) / Capacity (kg]
PT4100125	1000x1250x100	100	200	500 1000	Divisione (g) / Readability (g)
PT4125125	1250x1250x100	600	1500	3000	Portata (kg) / Capacity (kg]
PT4125125	1250x1250x100	200	500	1000	Divisione (g) / Readability (g)
PT4125150	1250x1500x100	600	1500		Portata (kg) / Capacity (kg]
PT4125150	1250x1500x100	200	500		Divisione (g) / Readability (g)
PT4125200	1250x2000x120	600	1500	3000	Portata (kg) / Capacity (kg]
PT4125200	1250x2000x120	200	500	1000	Divisione (g) / Readability (g)
PT4150150	1500x1500x100	600	1500		Portata (kg) / Capacity (kg]
PT4150150	1500x1500x100	200	500		Divisione (g) / Readability (g)
PT4150150	1500x1500x120	3000			Portata (kg) / Capacity (kg]
PT4150150	1500x1500x120	1000			Divisione (g) / Readability (g)
PT4150150	1500x1500x140	6000			Portata (kg) / Capacity (kg]
PT4150150	1500x1500x140	2000			Divisione (g) / Readability (g)
PT4150200	1500x2000x120	600	1500	3000	Portata (kg) / Capacity (kg]
PT4150200	1500x2000x120	200	500	1000	Divisione (g) / Readability (g)
PT4150200	1500x2000x160	6000			Portata (kg) / Capacity (kg]
PT4150200	1500x2000x160	2000			Divisione (g) / Readability (g)
PT4150250	1500x2500x140	1500			Portata (kg) / Capacity (kg]
PT4150250	1500x2500x140	500			Divisione (g) / Readability (g)
PT4150250	1500x2000x160	3000			Portata (kg) / Capacity (kg]
PT4150250	1500x2000x160	1000			Divisione (g) / Readability (g)
PT4150250	1500x2500x180	6000			Portata (kg) / Capacity (kg]
PT4150250	1500x2500x180	2000			Divisione (g) / Readability (g)
PT4200250	2000x2500x180	3000	6000	10000	Portata (kg) / Capacity (kg]
PT4200250	2000x2500x180	1000	2000	5000	Divisione (g) / Readability (g)

□ □

U] U]

□ □

U] LO

Dimensioni in mm. Toll. ±1 Dimensions in mm. Toll. ±1

X CE

4-:

'ti

X d LO

j] z x

MOD. PP

CARATTERISTICHE/features

Le piattaforme della serie PP sono ideali per la pesatura di merci su bancale. L'Ingombro e il peso contenuto le rendono agevolmente movimentabili, grazie anche alle ruote e alla maniglia.

Model PP platforms are perfect for weighing goods on pallet. The reduced weight and dimensions allow to move them easily also because they are equipped with two wheels and a handle

I modelli con dimensioni standard di 1260 x 820 x 85 (Lx P x H) sono disponibili con portate da 600-1500-3000 kg

The models with standard dimensions 1260 x 820 x 85 (L x D x H] are available with capacities of 600-1500-3000 kg

ce c c n

X X

X X

CE CE O U]

c c

X X

ELECTRONIC WEIGHING

QCIOSOU

PESATURA ELETTRONICA

X X

ADOS S.r.l.

Via Lazio 25 - 20090 Buccinasco Milano Italy Tel. +39 02 45700120 - Fax +39 02 48840833 www.ados.it - info@ados.it

Certified quality system ISO 9001:2000
